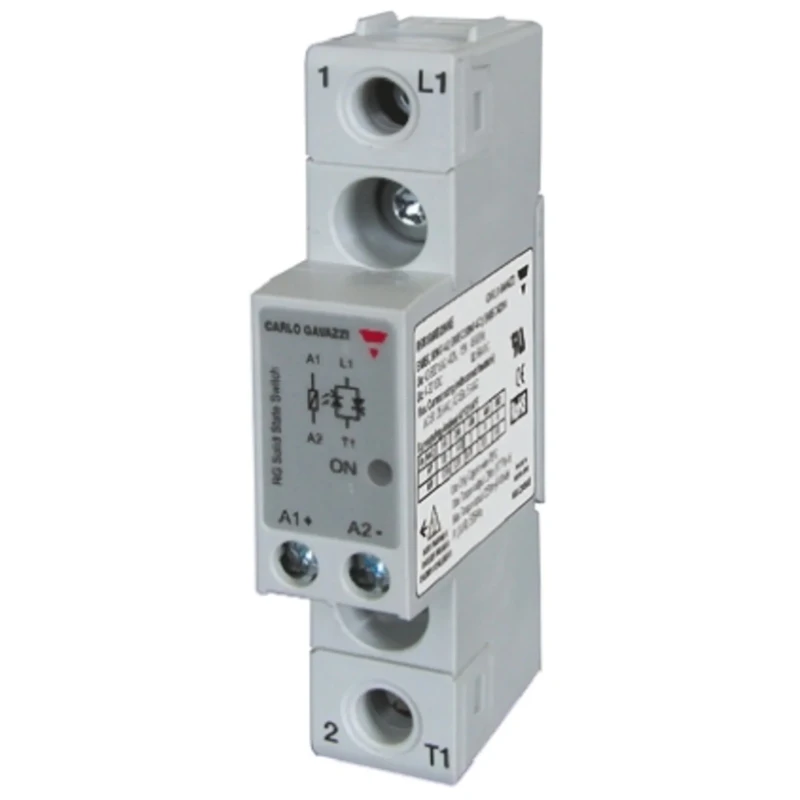

Carlo Gavazzi Panel Mount Solid State Relay 25 A Load, 600 V ac Load, 4-32 V dc Control RGS1

The Carlo Gavazzi RGS1A60D25KKE solid state relay is engineered for industrial applications requiring reliable and frequent switching of heater loads and motor loads. This panel mount relay supports a maximum load current of 25 A and a maximum load voltage of 600 V ac, making it suitable for a wide range of industrial electrical control systems.

The device features a screw terminal type connection with captive washers to guarantee a safe and secure wiring setup. The compact form factor with a width of 17.8 mm and height of 90 mm allows for efficient space utilization in control panels. Its zero cross switching mechanism reduces electrical noise and enhances operational safety by switching only when AC voltage crosses zero.

Integrated voltage transient protection via a varistor safeguards the relay and connected equipment from voltage spikes. The relay has a short circuit rating of 100 kA, highlighting its robustness for demanding industrial environments. Operating temperatures range from -40°C to 80°C, accommodating diverse environmental conditions.

The relay provides IP20 ingress protection, offering basic protection against solid foreign objects, and maintains a low off-state leakage current of 3 mA, reducing energy waste. The output type is PNP, ensuring reliable transistor output switching compatible with industrial automation systems.

Applications include industrial automation, HVAC systems, motor control, heating element control, and other high-power switching needs in manufacturing and electrical systems. The RGS1 series solid state relay offers a durable and compact solution for complex panel mount integration demands.

Designed for efficient switching of heater and motor loads with high frequency. Panel mount type with a compact width of 17.8 mm for easy installation. Features screw type terminal connection with captivated washer for secure looping.

Equipped with integrated voltage transient protection using a varistor. Zero cross switching function to minimize electrical noise and switching transients. Short circuit rated at 100 kA for enhanced safety and performance.

Operates reliably within a temperature range of -40°C to 80°C. Provides IP20 ingress protection ensuring safety from solid objects. Off state leakage current as low as 3 mA to reduce power loss. Output type is PNP transistor for robust output switching capabilities.

This Carlo Gavazzi solid state relay is an excellent choice for industrial environments requiring high reliability and fast switching performance within compact control panels. Explore additional products in the Solid State Relay category at EnvMart.
