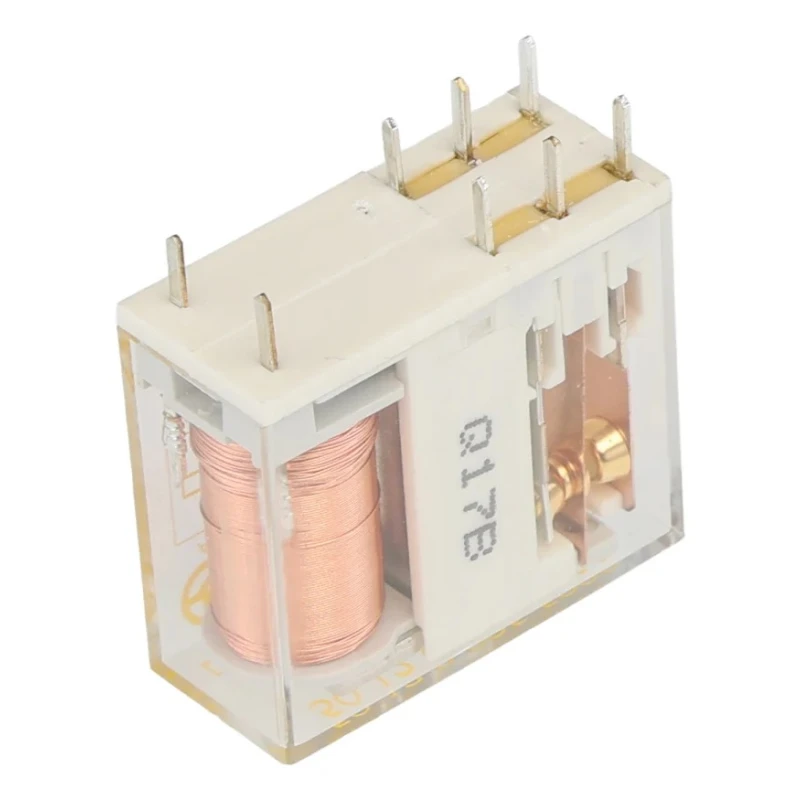

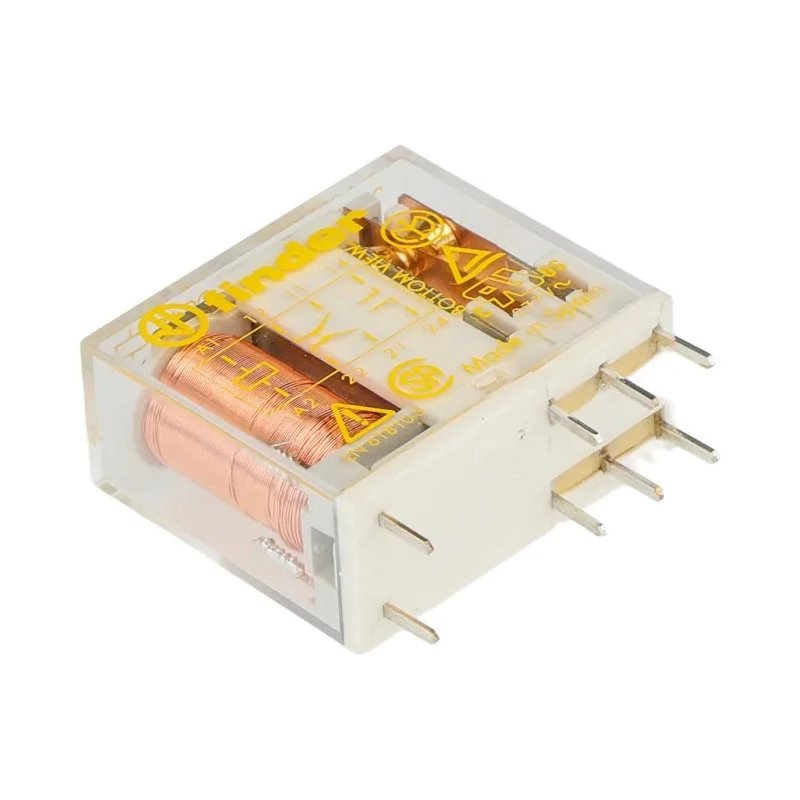

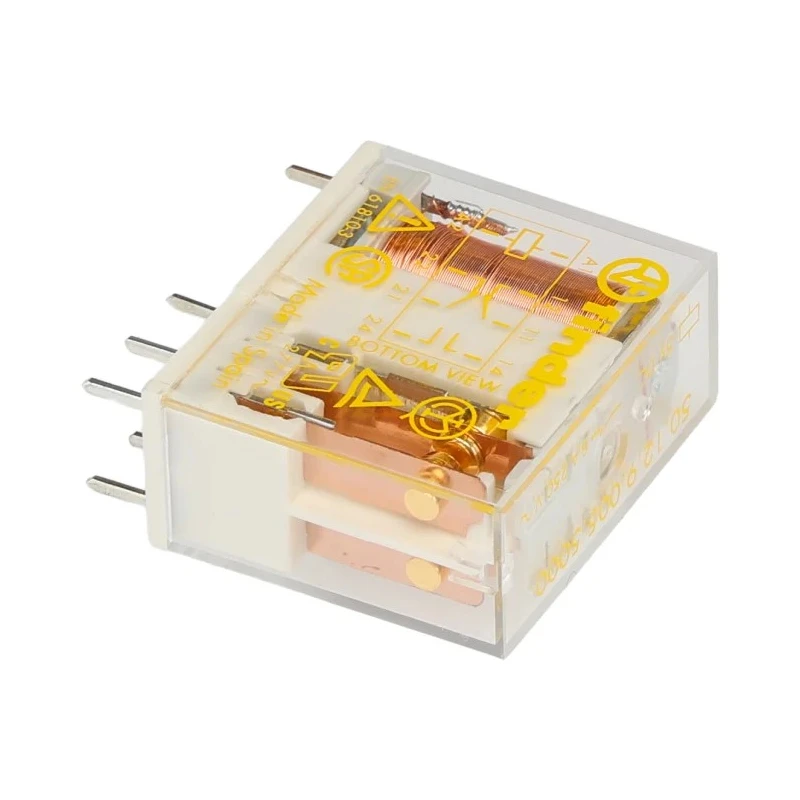

Finder PCB Force Guided Relay 5V DC Coil Voltage 2-Pole DPDT 50.12.9.005.5000

The Finder 50.12.9.005.5000 PCB Force Guided Relay features a 5V DC coil voltage and a DPDT contact configuration with two poles. Engineered for industrial and automation environments, it delivers reliable switching with a 15A maximum current capacity. Its compact size of 29mm length, 12.4mm depth, and 25mm height allows easy integration on PCB mounts.

This relay offers high isolation of 6kV between coil and contacts, ensuring operational safety and protection against electrical faults. The gold and silver alloy contacts provide enhanced durability and reliability, supporting up to 100,000 cycles of operation. The cadmium-free materials and flux-proof construction make this relay environmentally compliant and resistant to challenging conditions.

Its versatility makes it a suitable choice for numerous applications, including escalators and lifts where precise control is necessary, medical and dental equipment requiring safety assurance, carousel warehouses managing loads, wood-processing machinery for enhanced operation, and hoists or cranes demanding dependable lifting control.

The relay supports AC switching voltages up to 400V and DC voltages up to 125V, with continuous current rated at 8A and peak capacity at 15A, making it ideal for handling both AC and DC loads. Operating efficiently across a wide temperature range from -40°C to +70°C, the product ensures durability in varying industrial environments.

Operates at 5V DC coil voltage with a coil resistance of 35Ω. DPDT contact configuration with two poles for versatile switching. High isolation of 6kV between coil and contacts for enhanced safety. Gold and silver alloy contacts provide durability and reliability.

Compact PCB mount design with dimensions 29mm x 12.4mm x 25mm. Cadmium-free and flux-proof construction ensures environmental compliance. Suitable for escalators, medical devices, warehouses, wood-processing, hoists, and cranes.

Rated for switching voltages up to 400V AC and 125V DC, supporting both AC and DC loads. Operates reliably between -40°C and +70°C temperature range. Designed for up to 100,000 cycles of operation. Explore EnvMart’s range of industrial relays and contactors for dependable automation and control solutions.
