Finder PCB Force Guided Relay 12V DC Coil Voltage 2-Pole DPDT Model 50.12.9.012.5000

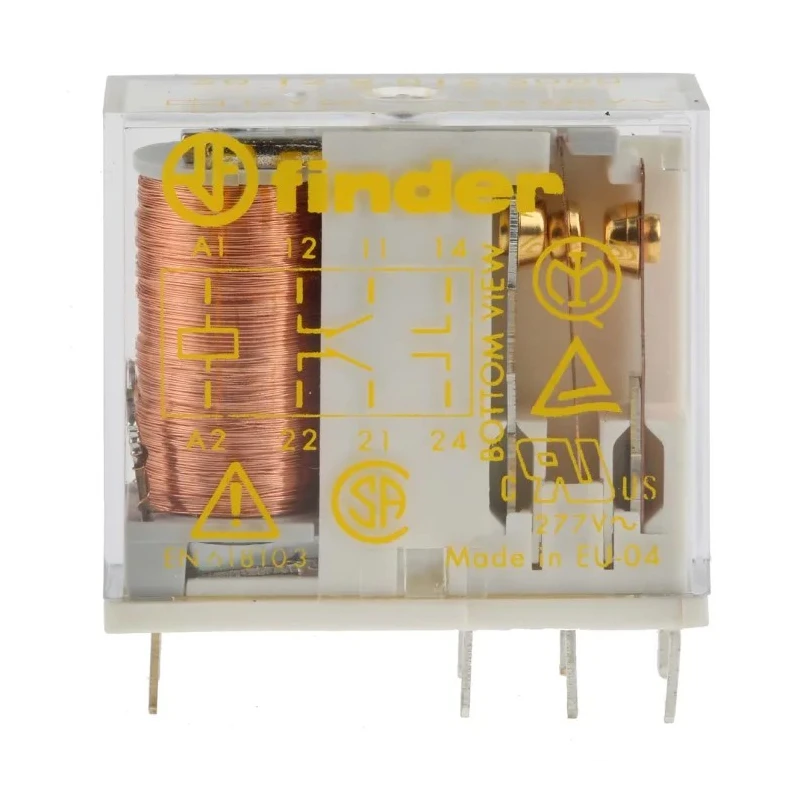

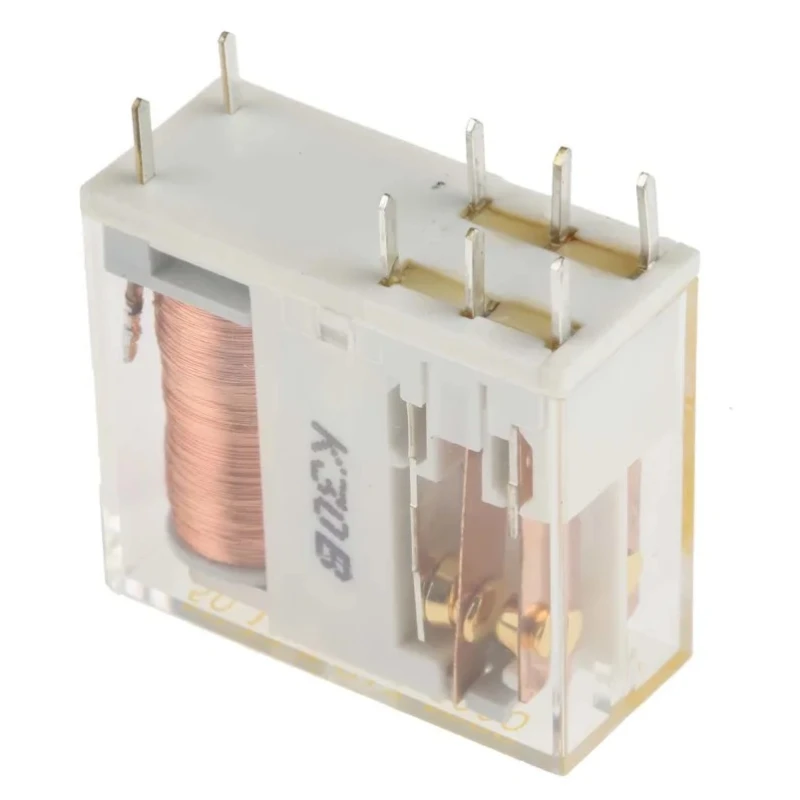

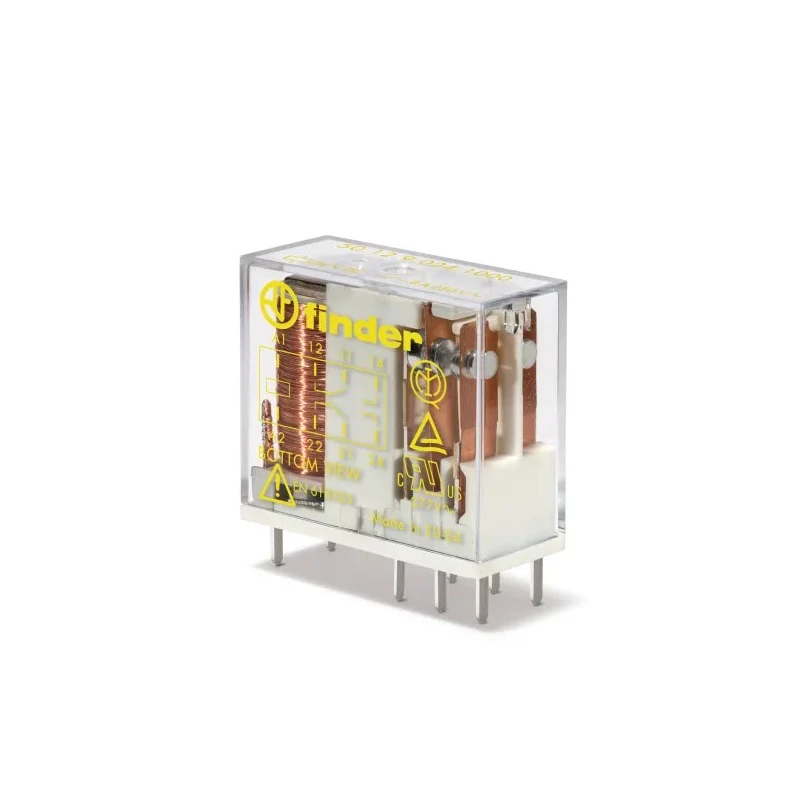

Finder 50.12.9.012.5000 PCB Force Guided Relay is a high-safety electrical switching device featuring a 12V DC coil voltage and two poles configured as DPDT. This relay type ensures reliable medium duty switching, particularly suitable for DC load applications, and is designed for printed circuit board (PCB) mounting to facilitate integration into compact electronic assemblies.

It uses environmentally responsible cadmium-free gold silver alloy contacts combined with forcibly guided contacts that prevent unsafe contact states, enhancing operational safety in critical systems. Offering a maximum switching current of 8A, this relay supports robust performance in demanding electrical environments.

The relay provides a high isolation strength of 6kV between coil and contacts, effectively reducing the risk of electrical interference. Temperature operation ranges from a low of -40°C to a high of 70°C, making it adaptable to diverse industrial and commercial conditions.

Compact construction with physical dimensions of 29mm length, 25mm height, and 12.4mm depth allows use in space-limited PCB designs. Solder terminals ensure stable and secure electrical connections. The flux-proof design contributes to stable relay function by resisting contamination and environmental factors.

Applications include escalators, hospitals, medical equipment, lifts, wood-processing machinery, hoists, and cranes where reliable switching and safety are paramount. This relay meets the needs of industrial automation, electrical control, and safety systems.

Features forcibly guided contacts to enhance operational safety. Utilizes cadmium-free gold silver alloy contact materials for environmental safety. Supports up to 8A switching current ensuring robust performance. Coil to contact isolation rated at 6kV for interference prevention.

Operates reliably in temperatures ranging from -40°C to 70°C. Compact PCB mounting with dimensions of 29mm length, 25mm height, and 12.4mm depth. Solder-type terminals for stable electrical connection. Flux-proof design improves electronic operational stability.

Suitable for DC loads, escalators, medical devices, lifts, and industrial machinery. Explore more high-quality relays and Force Guided Relay solutions on EnvMart for critical electrical control and automation applications.
