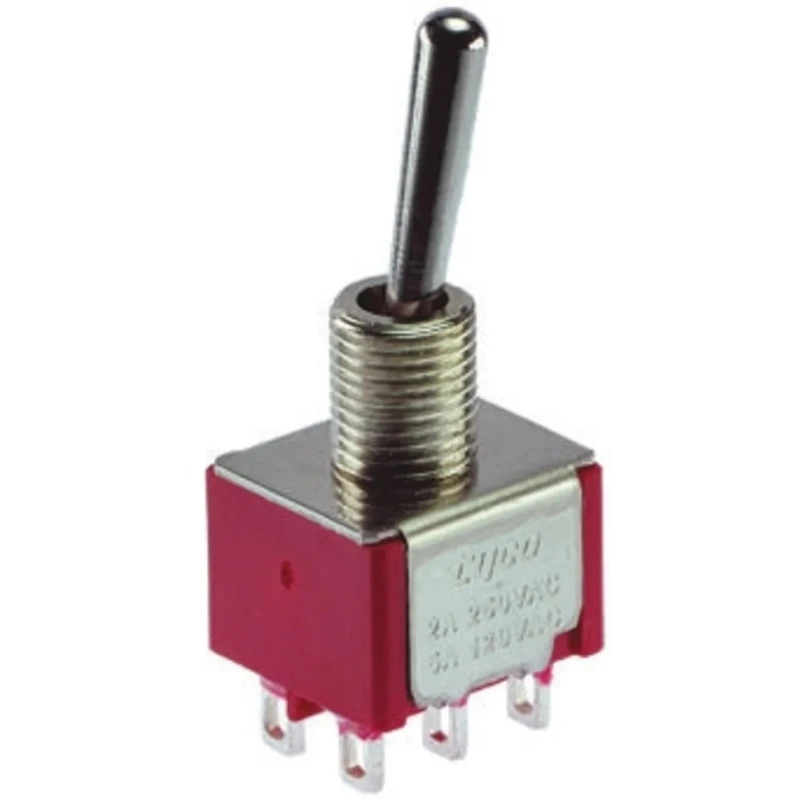

TE Connectivity Toggle Switch, Panel Mount, On-On DPDT, Solder Terminal, 20 V dc, 20 V ac 2-1825138-7

TE Connectivity 2-1825138-7 Toggle Switch is a high-quality panel mount switch designed for industrial and electronic applications requiring reliable switching of 20 V dc and 20 V ac circuits. This DPDT switch features On-On operation, providing two stable switch positions, and is equipped with solder terminals for secure wiring connections.

The switch actuator is made of phenolic material with a length of 10.41 mm, offering durability and ease of use. The panel cutout size requirement is 6.35 mm, ensuring compatibility with standard mounting panels. Designed to operate effectively within temperatures ranging from -30°C to 85°C, this switch can be deployed in various environments including industrial control panels, automation systems, and electronic equipment.

With a maximum contact current rating of 400 mA and a compact dimension of 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height, the switch provides efficient switching in a small footprint. The Gemini A series construction includes epoxy sealed terminals and a stainless steel frame with brass tin plated solder support, offering enhanced durability and corrosion resistance.

This TE Connectivity toggle switch complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances. It is suitable for use in electrical, industrial automation, and control gear assemblies where reliable panel mount switching solutions are required.

Features a dual pole double throw contact configuration. Switch operation is On-On, enabling two-position switching. Solder type terminals ensure reliable electrical connections. Panel mount with a 6.35 mm cutout size for easy installation.

Actuator constructed of durable phenolic with a length of 10.41 mm. Designed to operate within a temperature range from -30°C to 85°C. Supports a maximum contact current of 400 mA. Compact size with 0.5 inch length, 0.45 inch width, and 0.35 inch height.

Complies with RoHS standards for environmental safety. Part of the Gemini A series offering epoxy sealed terminals and a stainless steel frame. Explore more TE Connectivity Toggle Switches and reliable electrical components in our Electronics & Electricals category at EnvMart.
