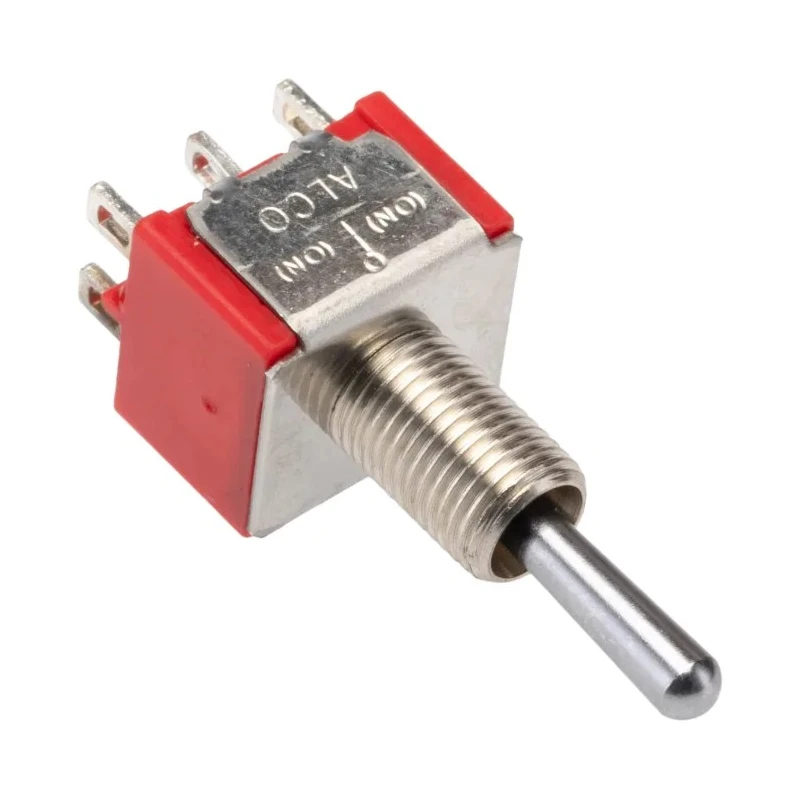

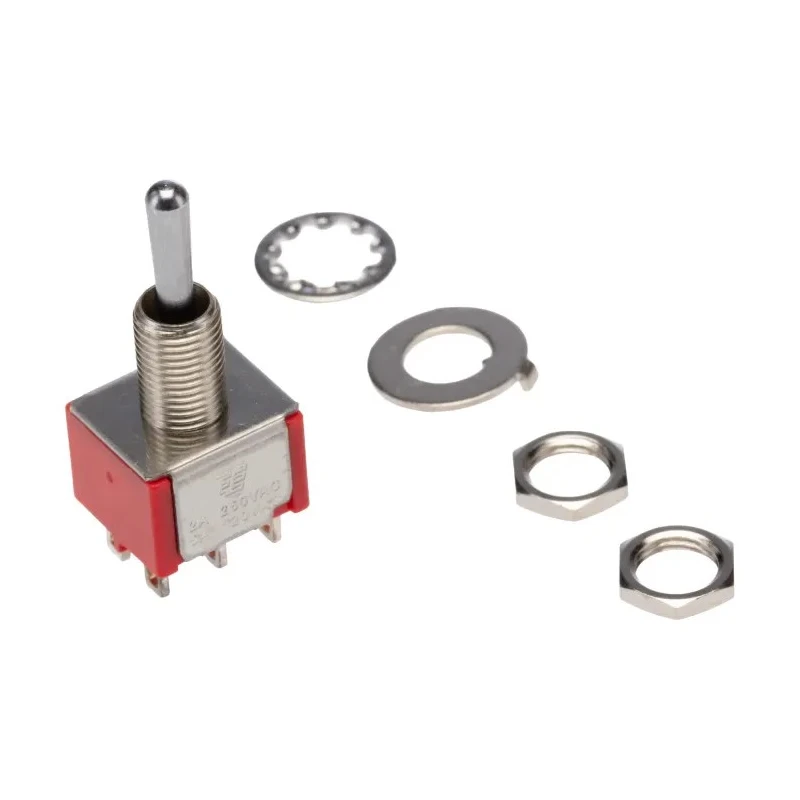

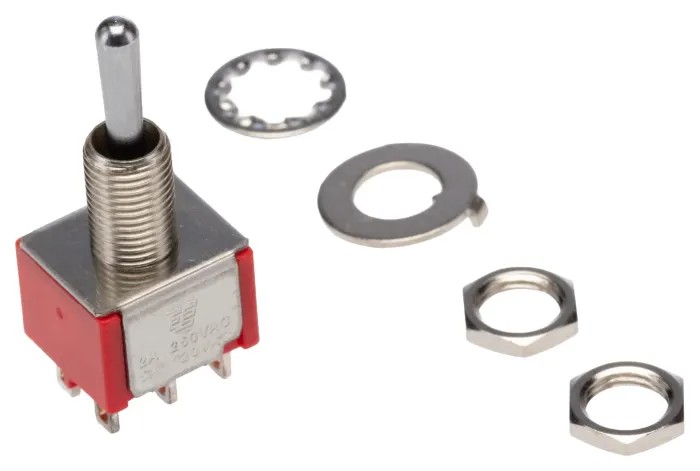

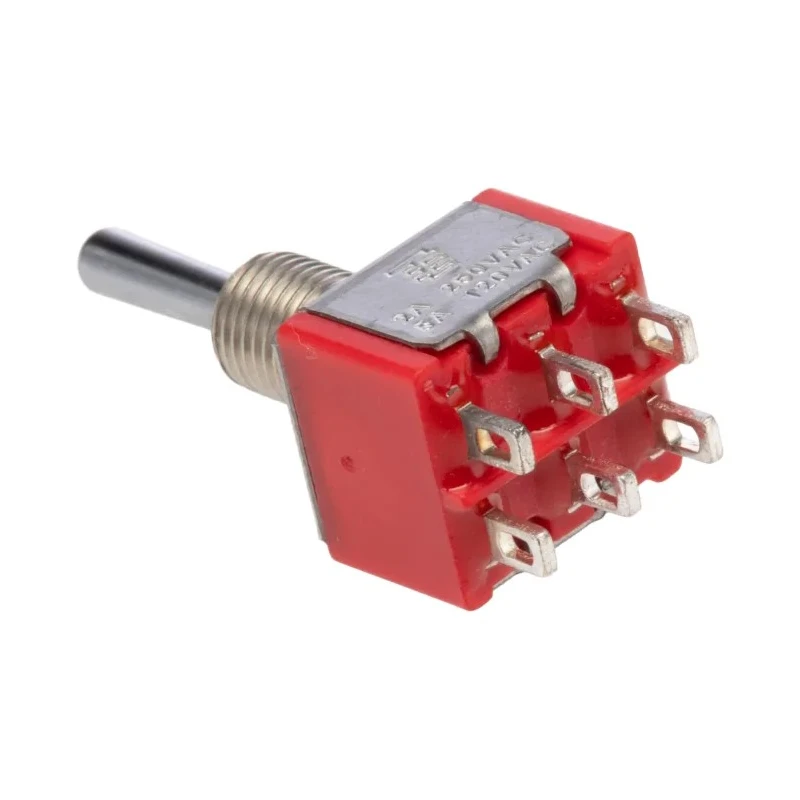

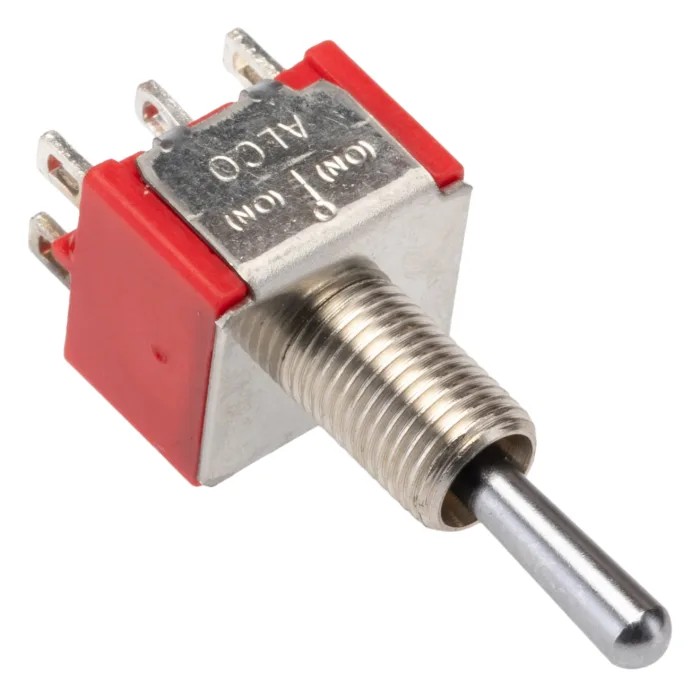

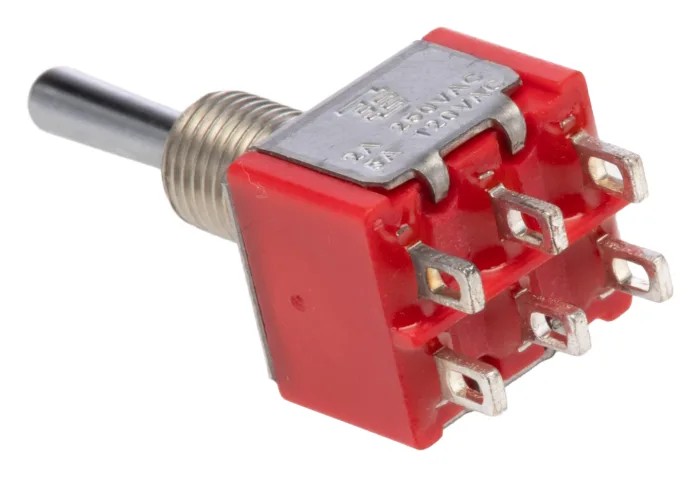

TE Connectivity Panel Mount Toggle Switch, On-Off-On SPDT, Through Hole Terminal, 28 V dc, 125 V ac 1-1825139-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Panel mount design ensures easy integration into control panels.
- Switch operation features an On-Off-On configuration for versatile switching modes.
- Supports a contact current of 5A suitable for moderate electrical loads.
- Through hole terminal type facilitates robust soldering on PCBs.
- Rated for 28 V dc and 125 V ac voltages for broad electrical compatibility.
- Phenolic actuator material provides durability and reliable mechanical operation.
- Compact dimensions with length 0.5 in, width 0.45 in, and height 0.35 in.
- Operates efficiently within temperature range from -30°C to 85°C.
Product Description
TE Connectivity 1-1825139-8 Panel Mount Toggle Switch offers reliable and precise switching with its On-Off-On SPDT contact configuration. Designed to mount easily on control panels, this switch suits electrical and automation applications requiring robust and versatile control solutions. It features a phenolic actuator material ensuring mechanical durability along with epoxy sealed terminals and a stainless steel frame that enhance longevity and resistance to environmental factors.
The switch supports a current rating of 5A and voltage ratings of 28 V dc and 125 V ac, providing compatibility with a wide range of medium power electrical systems. The through hole terminal type allows secure PCB connections in industrial and manufacturing environments. Its operational temperature range from -30°C to 85°C enables dependable performance across varying ambient conditions.
With compact dimensions of 0.5 inches length, 0.45 inches width, and 0.35 inches height, this toggle switch is suitable for installations where space constraints exist. The Gemini A series design incorporates break before make contact timing ensuring safety and operational integrity. This product is RoHS compliant, highlighting its adherence to environmental regulations.
Panel mount design for easy integration. On-Off-On SPDT switch operation provides flexible control options. 5A contact current rating supports moderate electrical loads. Through hole terminals enable strong PCB soldering.
Rated for 28 V dc and 125 V ac voltage applications. Phenolic actuator material ensures durability. Compact size for space-saving installations. Operating temperature range from -30°C to 85°C. Stainless steel frame with epoxy sealed terminals for environmental resistance.
RoHS compliant for eco-friendly usage.
This TE Connectivity toggle switch is ideal for use in industrial automation, electronics manufacturing, control panel assemblies, and other commercial electrical applications requiring dependable switching performance. Explore more Toggle Switches and electrical control components within EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a Single Pole Double Throw (SPDT) contact configuration with an On-Off-On switching operation.
It is rated for 28 V DC and 125 V AC, making it suitable for a variety of electrical applications.
The switch supports a maximum contact current of 5A, which is suitable for moderate electrical loads.
The dimensions of this model are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
It uses through hole terminals, which facilitate robust soldering on printed circuit boards (PCBs).
This model operates efficiently within a temperature range of -30°C to 85°C.
The actuator is made from phenolic material, which provides durability and reliable mechanical operation.
Yes, this switch is RoHS compliant, indicating its adherence to environmental regulations.
This toggle switch is part of the Gemini A series, which is designed for reliable and precise switching.
The required panel cutout size for this switch is 6.35 mm.
This model is ideal for use in industrial automation, electronics manufacturing, control panel assemblies, and other commercial electrical applications.
The switch features a stainless steel frame and epoxy sealed terminals, which enhance its longevity and resistance to environmental factors.
