Panasonic Signal Relay Surface Mount 12V DC Coil 1A DPDT AGN200S12

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Signal Relay Surface Mount 12V DC Coil 1A DPDT AGN200S12

Name: Panasonic Signal Relay Surface Mount 12V DC Coil 1A DPDT AGN200S12
Brand: Panasonic
SKU: 324152
Price: 4.46 USD
Availability: InStock



Category Signal Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	9mm
Length	10.9mm
Model	AGN200S12
Width	5.7mm
Mount Type	Surface
Contact Material	Gold Plated Silver Aluminium
Series	FTR-B3
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Coil Resistance	1028Ω
Coil Voltage	12V dc
Switching DC Voltage	110V dc
Switching AC Voltage	125V ac
Coil Power	140mW
Omron PCB Mount Non-Latching Relay, 12V dc Coil, 1A Switching Current, DPDTBrand	Omron

Key Features

Compact slim body measuring 9mm height with 5.7mm width and 10.9mm length.
Twin crossbar contacts ensure high contact reliability with gold plated silver aluminium material.
Sealed construction allows for automatic washing and enhanced surge resistance.
Suitable for telecommunications, measurement, and audio visual equipment applications.
Operates under wide temperature range from -40°C to 85°C with 1028Ω coil resistance.
Switching capability up to 125V AC or 110V DC with 140mW coil power consumption.
Features PCB terminal type for easy surface mounting integration.
RoHS compliant and manufactured in Japan.

Product Description

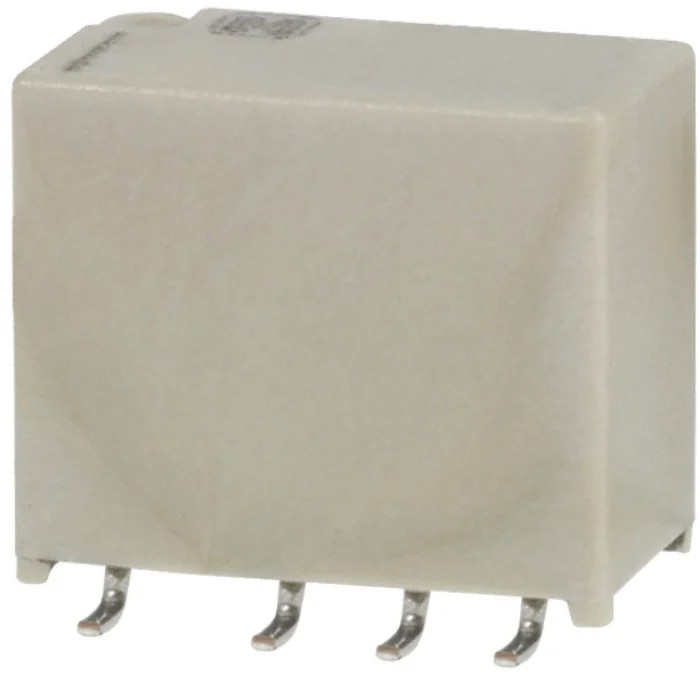

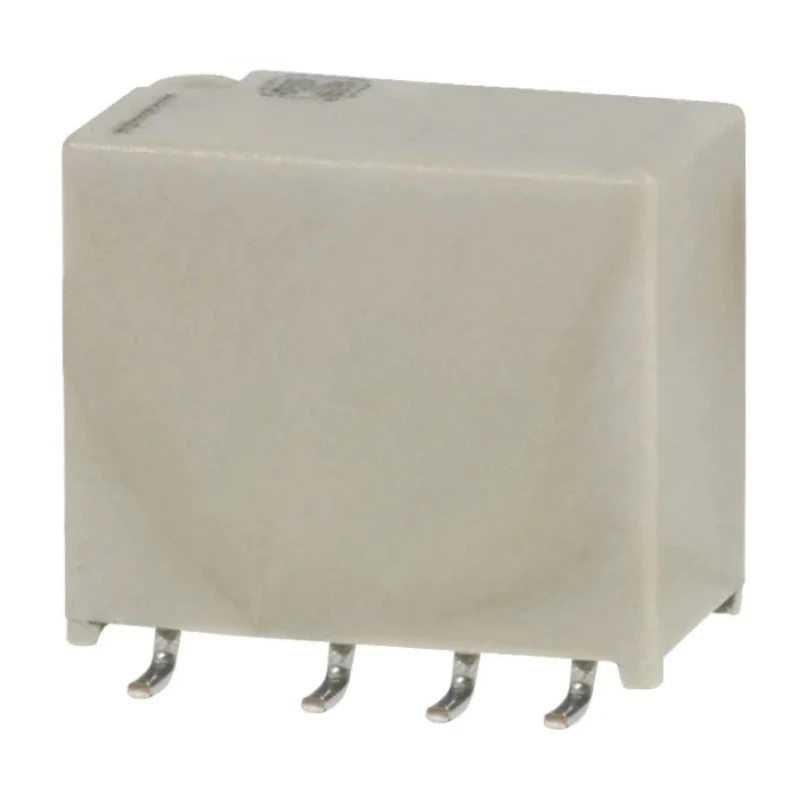

Panasonic AGN200S12 Signal Relay is a surface mount relay featuring a 12V DC coil and DPDT contact configuration with 1A switching current. This relay belongs to the FTR-B3 series and is designed for compactness and reliability in electronic circuits.

The relay's slim body measures just 9mm in height, with a width of 5.7mm and length of 10.9mm, making it ideal for applications requiring high packing density and space-saving design. Its gold plated silver aluminium contacts coupled with twin crossbar contacts provide high reliability and durability in switching operations.

This sealed relay construction allows resistance to surges and facilitates automatic washing processes, enhancing its use in demanding environments. It operates reliably over a broad temperature range from -40 degrees Celsius to 85 degrees Celsius, ensuring performance stability.

The relay is suitable for varied industrial uses including telecommunications, measurement equipment, and audio visual devices where precise signal switching is crucial. It uses PCB terminals simplifying mounting in printed circuit boards.

Key electrical ratings include a coil resistance of 1028 ohms and coil power of 140 milliwatts, with switching voltages up to 125 volts AC and 110 volts DC. It conforms to RoHS environmental standards and is manufactured in Japan, reflecting high quality and compliance.

Compact slim body (9x5.7x10.9mm) for space-saving PCB installation. Twin crossbar contacts with gold plated silver aluminium for reliable switching. Sealed construction allows for automatic washing and enhances surge resistance.

Wide operating temperature range of -40°C to 85°C. High switching voltage and current capabilities: 125V AC, 110V DC, and 1A current. PCB terminal mount for convenient surface mounting. Complies with RoHS standards ensuring environmental safety.

Manufactured in Japan, assuring superior quality. Explore the comprehensive range of Panasonic relays and other Electronics & Electricals on EnvMart for industry-grade components engineered for precision and durability.
