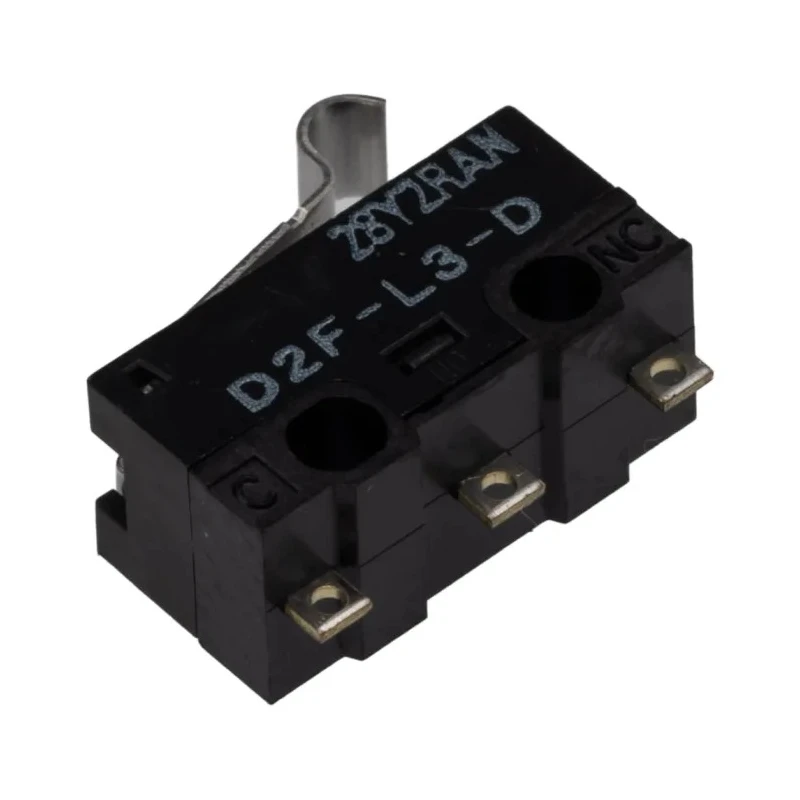

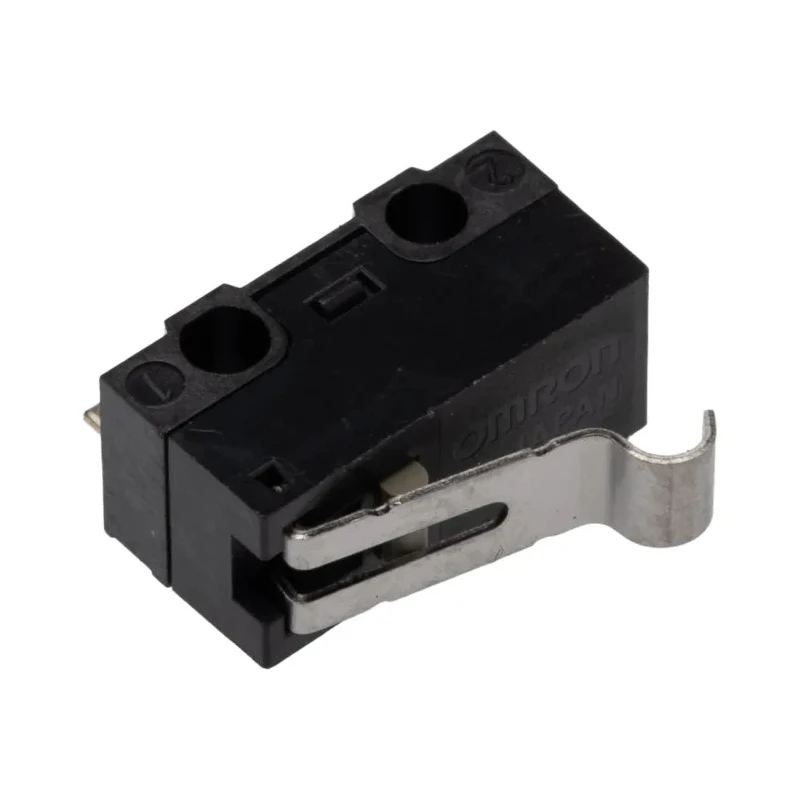

Omron Ultra Subminiature Simulated Roller Lever Micro Switch, Solder Terminal, 3A, 125V AC, 30V DC, SPDT, IP40 D2F-L3-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-L3-D |
| Depth | 5.8mm |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Simulated Roller Lever |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 0.78N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Subminiature |
Key Features
- Operates with a simulated roller lever actuator for reliable mechanical actuation.
- Equipped with solder terminals for straightforward circuit integration.
- Rated for 3A contact current with 125 V AC and 30 V DC voltage tolerance.
- Features an IP40 ingress protection rating for protection against solid objects.
- Operates efficiently between -25°C and 65°C temperature range.
- Ultra subminiature size with depth of 5.8mm and length of 12.8mm.
- Mechanical life of 1,000,000 operations ensures durability in industrial use.
- Complies with RoHS standards and carries UL and CSA approvals.
Product Description
Omron D2F-L3-D Ultra Subminiature Simulated Roller Lever Micro Switch features a compact design with a simulated roller lever actuator and solder terminal type, ensuring precise and reliable switching. It supports a switch contact current of 3A at 125 V AC and 0.1A at 30 V DC with gold contacts, tailored for applications in home appliances, audio equipment, and communication devices.
This micro switch operates effectively within a temperature range of -25°C to 65°C and carries an IP40 ingress protection rating, providing adequate protection against foreign objects. The ultra subminiature form factor with a depth of 5.8mm and length of 12.8mm allows for space-saving integration in high-density electronic assemblies.
Mechanical longevity is ensured with a rated life of one million operations, suitable for rigorous industrial, laboratory, and commercial environments. The switch configuration is SPDT, offering versatile electrical control for industrial automation and control systems.
Simulated roller lever actuator for enhanced switching accuracy. Solder terminal connectivity for secure electrical connections. Contact rating of 3A at 125 V AC and 30 V DC for robust performance. IP40 protection rating suitable for indoor use without exposure to liquids.
Wide operating temperature range from -25°C to 65°C for diverse environments. Compact ultra subminiature size with 5.8mm depth and 12.8mm length dimensions. Endurance of 1,000,000 operations guarantees reliability over long-term use.
Compliance with RoHS and certifications including UL and CSA ensure quality standards. Manufactured in Japan ensuring high manufacturing excellence and quality control.
This micro switch is ideal for industrial automation, manufacturing equipment, laboratory instruments, HVAC systems, and consumer electronics. Its compact size and performance metrics make it well-suited for control panels, safety equipment, and precision switching requirements.
Explore a wide range of Micro Switches and control components on EnvMart to support your industrial and technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 3A at 125V AC and 0.1A at 30V DC, featuring silver contacts for AC and gold contacts for DC applications.
This model operates effectively within a temperature range of -25°C to 65°C.
It uses a simulated roller lever actuator, which enhances switching accuracy and reliability.
The micro switch has an IP40 ingress protection rating, suitable for protection against solid objects but not liquids.
The dimensions are 12.8mm in length and 5.8mm in depth, making it ultra subminiature in size.
It has a mechanical life rated for 1,000,000 operations, ensuring longevity in various applications.
This model is equipped with solder terminals for straightforward circuit integration.
It complies with RoHS standards and carries UL and CSA approvals, ensuring adherence to quality standards.
The contact configuration is SPDT (Single Pole Double Throw), allowing versatile electrical control.
It is suitable for applications in home appliances, audio equipment, communication devices, industrial automation, and HVAC systems.
The operating force required is 0.78N, which is necessary for actuation.
This micro switch is manufactured in Japan, ensuring high manufacturing standards and quality control.
