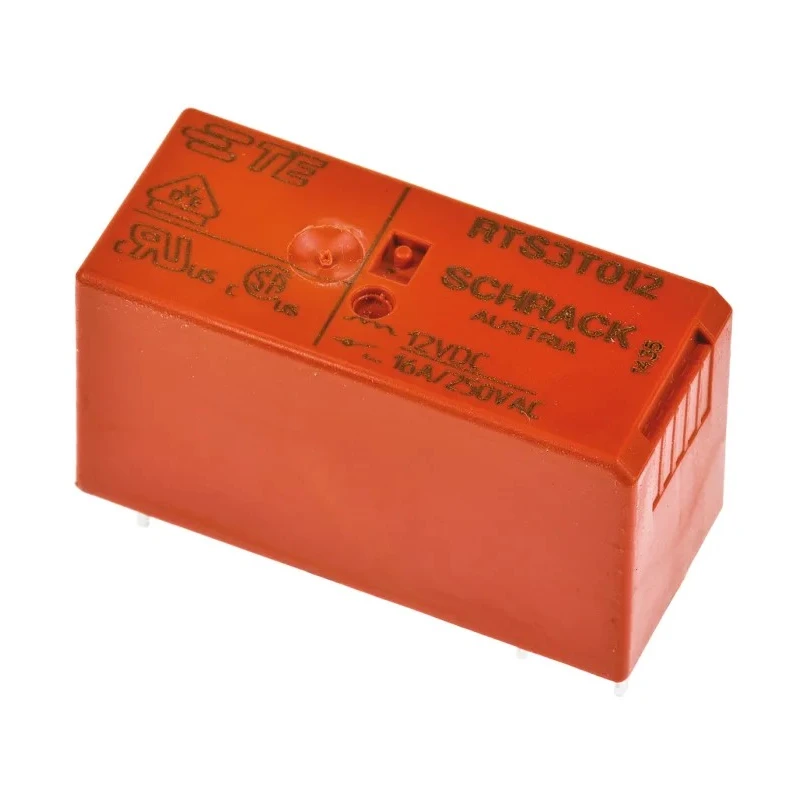

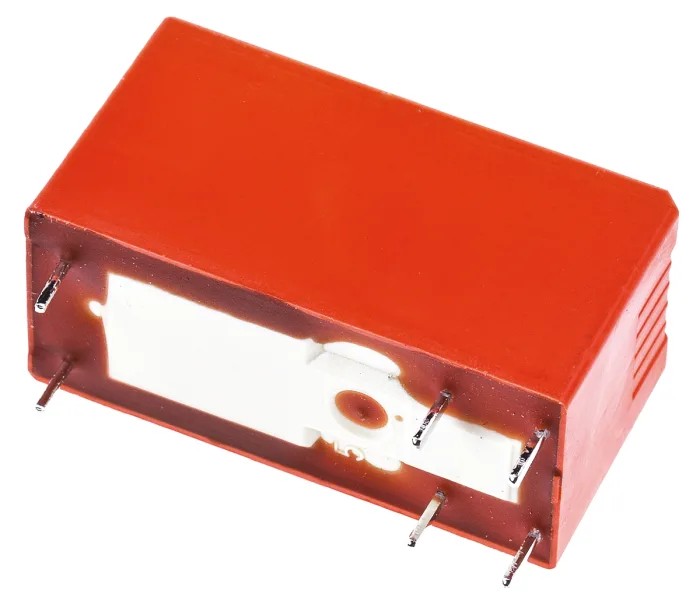

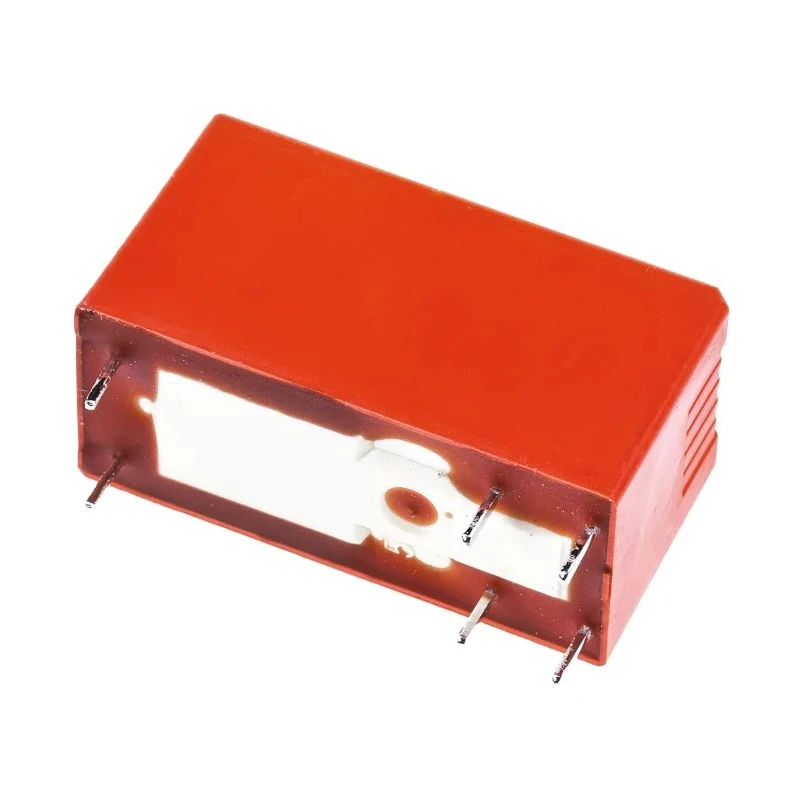

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPST RTS3T012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTS3T012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | RT-iPower |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Features a high inrush capacity suitable for lighting and motor loads.
- Designed for PCB mounting with solder terminal type.
- Operates reliably between -40°C and 85°C temperature range.
- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm.
- Provides reinforced insulation with 10mm creepage and clearance.
- Coil resistance is 360 ohms with a coil power consumption of 250mW.
- Supports switching AC voltage up to 400V AC and switching power of 4kVA.
Product Description
TE Connectivity RTS3T012 PCB Power Relay is engineered with a 12V DC coil and a switching current of 16A, making it ideal for use in power relay applications on printed circuit boards. Its SPST contact configuration facilitates control in automation systems and electrical circuits requiring single-pole switching.
This relay is part of the RT-iPower series, designed to handle high inrush currents and provide reliable switching performance under demanding load conditions such as lighting systems, movement sensors, and motor controls. It achieves a making and breaking capacity compliant with IEC 60669-1 standards at 16A and 250V AC.

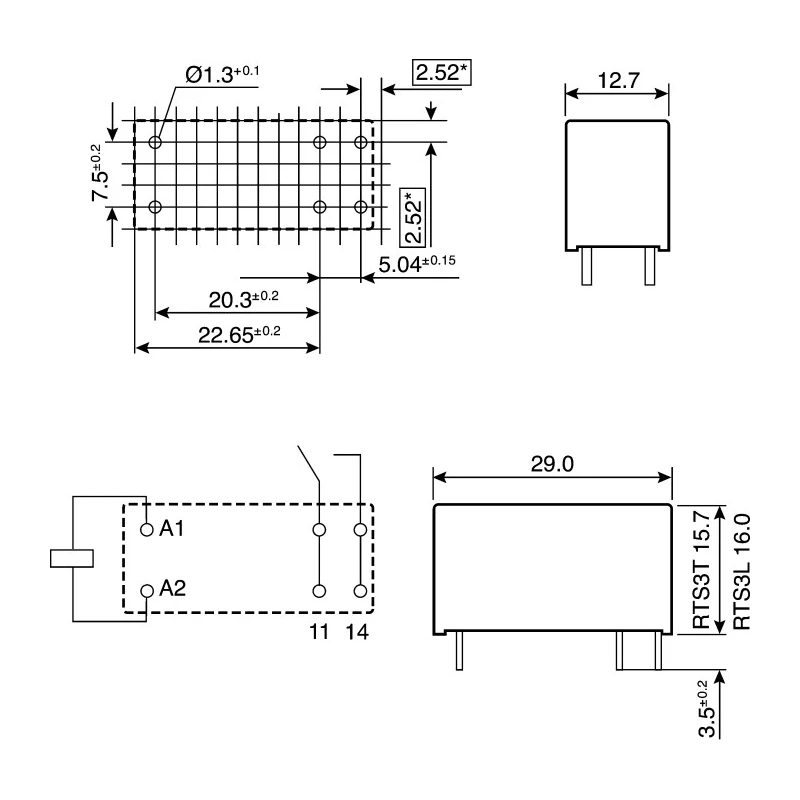

The compact form factor with dimensions of 29mm length, 12.7mm width, and 15.7mm height supports easy integration into PCB designs. It features solder-type terminals and a mounting style suitable for standardized PCB layouts.
Operational temperature range is from -40°C to 85°C, allowing versatility in challenging industrial and commercial environments. The relay includes reinforced insulation with 10mm creepage and clearance distances ensuring electrical safety. The coil resistance is 360 ohms, with a coil power consumption rated at 250mW.
Material selection, including tungsten silver tin oxide contacts, ensures durability and efficient electrical conductivity. The relay meets international standards including IEC 60335-1, RoHS, and VDE approvals, ensuring quality and regulatory compliance.
Features a high inrush capacity suitable for lighting and motor loads. Designed for PCB mounting with solder terminal type. Operates reliably between -40°C and 85°C temperature range. Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm.
Provides reinforced insulation with 10mm creepage and clearance. Coil resistance is 360 ohms with a coil power consumption of 250mW. Supports switching AC voltage up to 400V AC and switching power of 4kVA. Constructed with tungsten silver tin oxide contact material for durability.
This power relay is suitable for electrical automation, industrial control panels, HVAC systems, lighting controls, and other commercial and industrial applications requiring reliable switching of AC and DC loads. Browse more products by TE Connectivity and comprehensive Power Relay offerings at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current of 16A, making it suitable for various power relay applications.
The relay operates with a coil voltage of 12V DC.
It has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
The relay supports switching AC voltage up to 400V AC.
It operates reliably within a temperature range of -40°C to 85°C.
This relay features an SPST (Single Pole Single Throw) contact configuration.
The coil resistance is 360 ohms, with a coil power consumption of 250mW.
The contacts are made from tungsten silver tin oxide, which ensures efficient electrical conductivity.
It complies with IEC 60335-1, RoHS, and VDE standards.
This model is designed for PCB mounting with solder-type terminals.
It is suitable for electrical automation, industrial control panels, HVAC systems, and lighting controls.
The relay supports a switching power of up to 4kVA.
