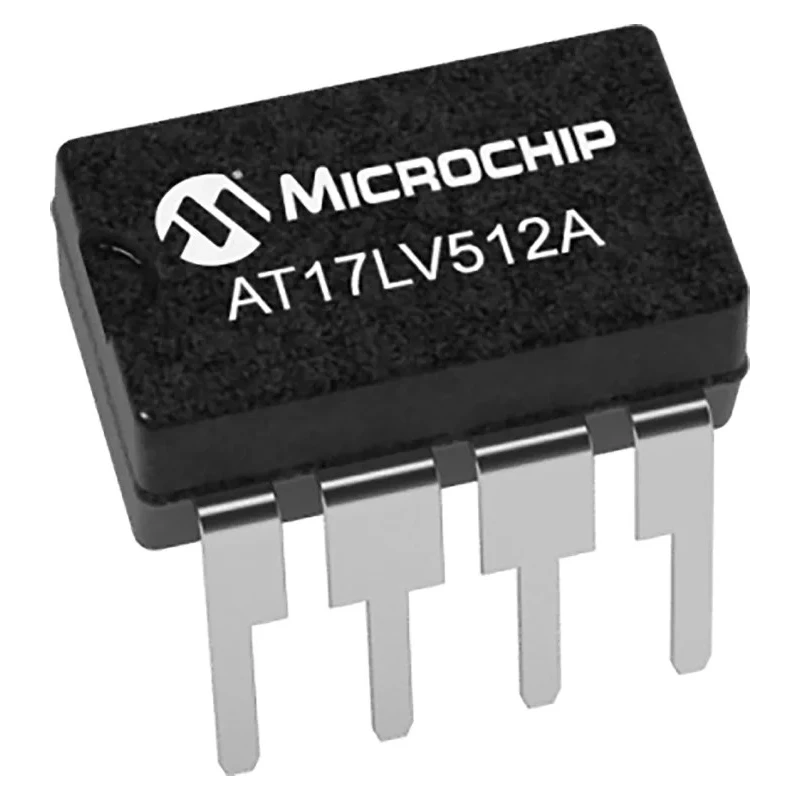

Microchip 512 kB EEPROM Serial-I2C Interface 50 ns Access Time 8-Pin PDIP AT17LV512A-10PU

Microchip AT17LV512A-10PU is a 512 kB EEPROM memory device featuring a Serial-I2C interface, designed for reliable FPGA configuration storage and general-purpose memory applications. It offers a maximum random access time of 50 ns, facilitating quick retrieval of data and supports a wide operating voltage range from 3V to 5.5V, making it suitable for both 3.3V and 5.0V systems.

The device is packaged in an 8-pin PDIP form factor with dimensions of 9.3 mm length, 6.35 mm width, and 3.3 mm height, optimized for through-hole mounting on circuit boards. With a maximum clock frequency of 15 MHz and a low supply current of 5 mA, it is energy-efficient and compatible with high-speed applications.

Operating over a temperature range from -40°C to 85°C, this EEPROM is suitable for industrial and harsh environment applications. It retains stored data for up to 90 years ensuring long-term durability and reliability.

The memory organization is 512k bit with 524,288 words of 1 bit each, making it ideal for storing FPGA configuration programs. It supports programmable reset polarity and is compatible with a wide range of FPGA devices including Altera FLEX and APEX, Atmel AT6000 and AT94K devices, Xilinx Spartan and Virtex FPGAs, and Motorola MPA1000 FPGAs.

Memory size of 512 kB suitable for FPGA configuration storage. Supports Serial-I2C interface for efficient data communication. Operating voltage range from 3V to 5.5V compatible with various systems. Maximum clock frequency of 15 MHz enabling fast data access.

Low supply current of 5 mA ensuring energy efficiency. Wide operating temperature range from -40°C to 85°C for industrial use. Compact PDIP package dimensions: 9.3 mm length, 6.35 mm width, 3.3 mm height. Designed for through-hole mounting providing robust PCB attachments.

Data retention of up to 90 years ensuring long-term reliability. Compatible with multiple FPGA families including Altera, Xilinx, and Motorola devices.

This EEPROM is ideal for industrial, manufacturing, telecom, and embedded system applications requiring non-volatile memory with fast access and long data retention. Its robust temperature range and standardized packaging make it compatible across a broad range of printed circuit board designs.
