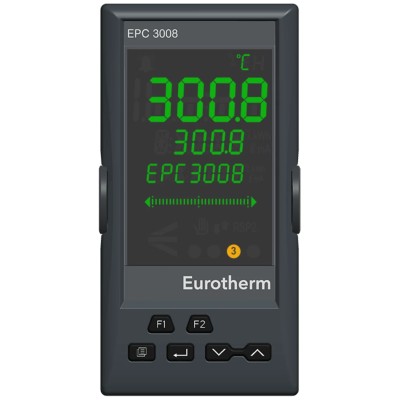

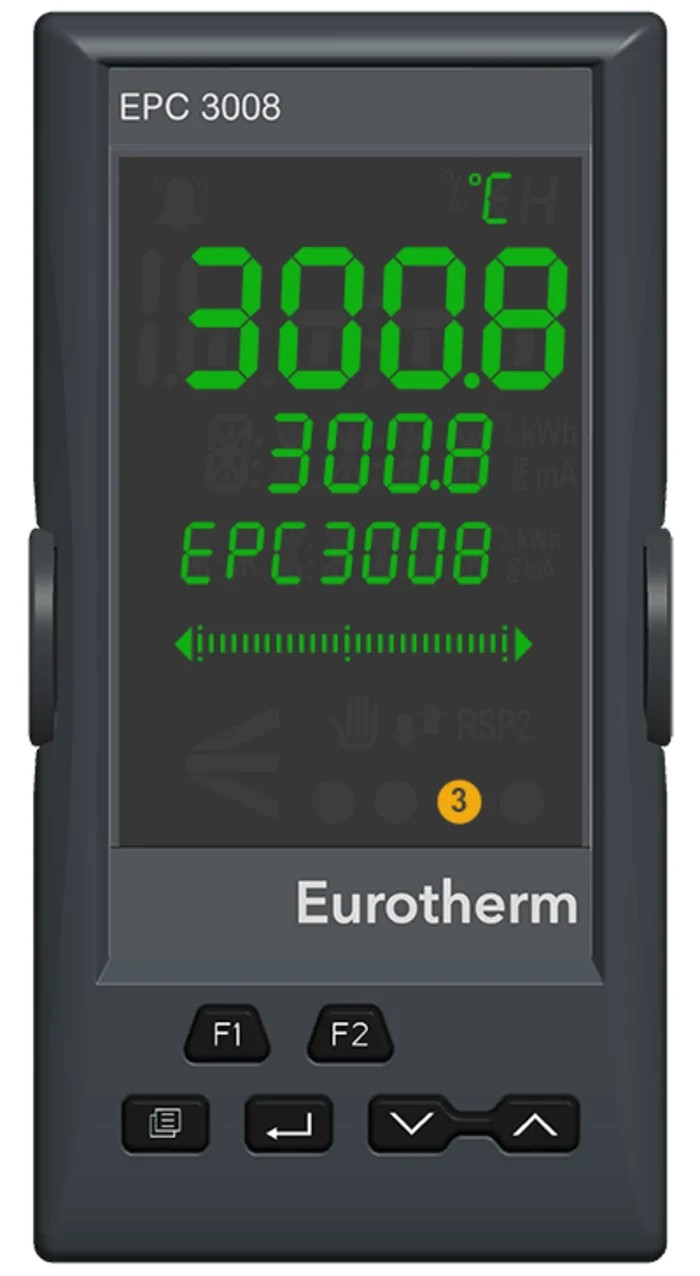

Eurotherm Panel PID Controller 1 Input 4 Relay 230V, LCD Display, IP65 Panel Mount EPC3008

Eurotherm EPC3008 Panel PID Controller is a highly configurable, programmable single loop PID controller designed for precise industrial temperature and process control at 230V supply voltage. This panel mount unit features one input and four relay outputs to provide accurate control and measurement performance with an LCD display for ease of use. It supports thermocouple, current, and voltage inputs and operates reliably in temperatures ranging from 0°C up to 55°C. The IP65 rated housing ensures robust protection against dust and water ingress, making it suitable for demanding industrial environments.

This controller incorporates enhanced Eurotherm PID control with a cutback function for rapid response and minimal overshoot. It is engineered to meet the stringent accuracy requirements of aerospace standards such as AMS2750 and CQI-9, delivering repeatable and precise control. Its series EPC3008 design enables easy panel integration with a compact footprint measuring 101mm in length, 48mm width, and 90mm panel depth. The screw terminal type ensures secure electrical connections.

The EPC3008 series supports advanced digital communications including Modbus, Ethernet/IP, and BACnet protocols with a built-in Fast Ethernet RJ45 interface, making it ideal for digital industry applications including IIoT and Industry 4.0. Additional features include wireable function blocks for math, logic, and advanced control as well as up to 20 ramp/soak program profiles for flexible process management.

This product benefits from a RoHS certification, affirming its compliance with environmental safety standards, and includes options such as Factory Mutual approved temperature limits to enhance operational safety. The controller originates from Poland, reflective of high build quality and engineering standards.

Ideal for use in industrial, manufacturing, HVAC, and process control applications, the Eurotherm EPC3008 enhances production yield optimization and reliable temperature regulation within complex industrial systems.

Features an LCD display for clear monitoring and configuration. Built with IP65 rating for robust protection in industrial environments. Supports thermocouple, current, and voltage input types. Operates within 0°C to 55°C temperature range ensuring reliability.

Panel mount type facilitates easy integration into control panels. Complies with RoHS standards ensuring environmental safety. Fast Ethernet with RJ45 connector supports IIoT and Industry 4.0 applications. Includes onboard math, logic, and advanced control functions.

Achieves high accuracy control meeting aerospace regulatory requirements. Factory Mutual approved temperature limit option enhances safety management. Explore more advanced Temperature Controllers at EnvMart to meet your industrial automation and control requirements.
