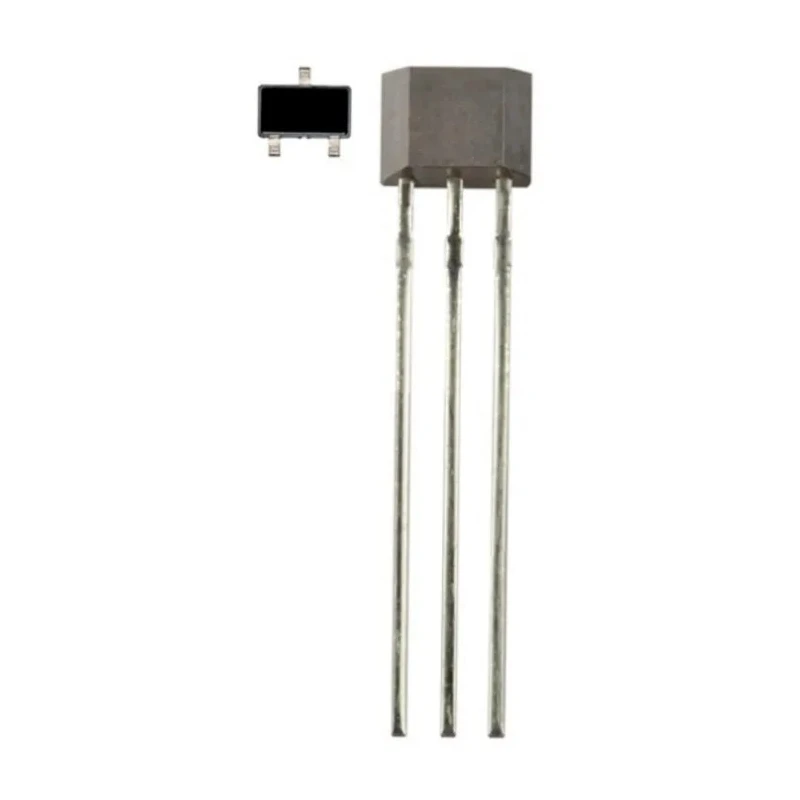

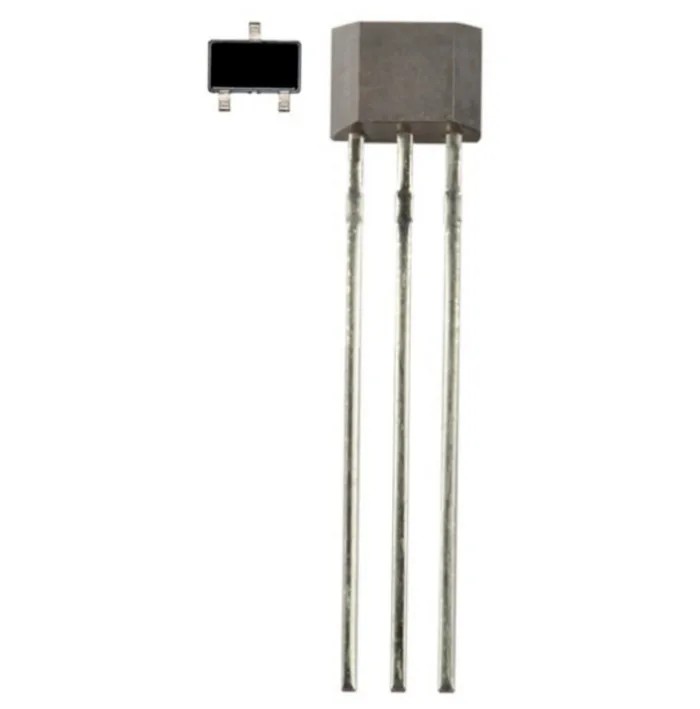

Honeywell Technologies Surface Hall Effect Sensor Digital NO4 Technology 3 V to 24 V SOT-23 3-Pin SS349RT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | SS349RT |
| Technology | Digital |
| Sensor Type | NO4 |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | SS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Meet Directive 2002/95/EC, RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 3V |
| Supply Current | 6mA |
| Magnetic Type | Unipolar |
Key Features
- The sensor uses unipolar magnetic type technology suitable for detecting a single magnetic pole.
- Operates reliably within a wide temperature range of -40 °C to 150 °C.
- Equipped with built-in reverse polarity protection to prevent damage during installation.
- Compact size with dimensions approximately 2.9 mm length, 2.8 mm width, and 1.45 mm height.
- Supply current is low at approximately 6 mA, suitable for low power applications.
- Designed as a surface mount device for ease of PCB integration.
- Conforms to RoHS directive 2002/95/EC ensuring compliance with environmental standards.
Product Description
Honeywell SS349RT Surface Hall Effect Sensor is a versatile and compact digital Hall-effect sensor IC designed for detecting magnetic fields generated by permanent magnets or electromagnets. This unipolar sensor responds to a single magnetic pole and delivers reliable digital output with high sensitivity options.
This sensor operates over a wide voltage range from 3 V to 24 V, making it adaptable to various low-voltage electronic designs. Its robust IC design incorporates reverse polarity protection, helping to safeguard the device from incorrect installation damage. The sensor can operate effectively in harsh temperature environments ranging from -40 °C up to 150 °C, suitable for industrial, automotive, and consumer electronics applications.
Its compact SOT-23 3-pin package with small dimensions (2.9 mm length × 2.8 mm width × 1.45 mm height) enables space-saving on printed circuit boards. With a low supply current of approximately 6 mA, it helps in energy-efficient designs. The device complies with the Restriction of Hazardous Substances Directive (RoHS) 2002/95/EC, promoting environmentally friendly manufacturing practices.
This Hall Effect Sensor is ideal for motion sensing, proximity detection, and position sensing tasks in industrial automation, electronic instrumentation, and other sensor-driven equipment.
Digital NO4 technology for precise magnetic field detection. Voltage range from 3 V to 24 V supports diverse applications. Wide operating temperature range (-40 °C to 150 °C) ensures durability. Reverse polarity protection enhances device longevity and reliability.
Compact SOT-23 3-pin surface mount package for easy PCB integration. Low supply current of 6 mA for efficient power management. RoHS compliant, meeting environmental safety standards.
Explore a wide range of sensors and electronic components suited for industrial, laboratory, automation, and consumer electronics applications within EnvMart’s catalog for efficient sourcing and design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SS349RT sensor operates over a voltage range from 3 V to 24 V, making it suitable for various low-voltage electronic applications.
This model can operate effectively in a wide temperature range from -40 °C to 150 °C, suitable for harsh environments.
The sensor uses unipolar magnetic type technology, which is designed to detect a single magnetic pole.
The dimensions of the sensor are approximately 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height.
The supply current for the SS349RT is approximately 6 mA, making it suitable for low power applications.
This model features a 3-pin configuration, designed for surface mount applications.
Yes, the SS349RT is equipped with built-in reverse polarity protection to prevent damage during installation.
The sensor comes in a compact SOT-23 package, which facilitates easy integration onto printed circuit boards.
Yes, it conforms to the RoHS directive 2002/95/EC, ensuring compliance with environmental safety standards.
This sensor is ideal for applications such as motion sensing, proximity detection, and position sensing in various electronic devices.
The SS349RT is part of the SS series of sensors from Honeywell.
The sensor utilizes Digital NO4 technology for precise magnetic field detection.
