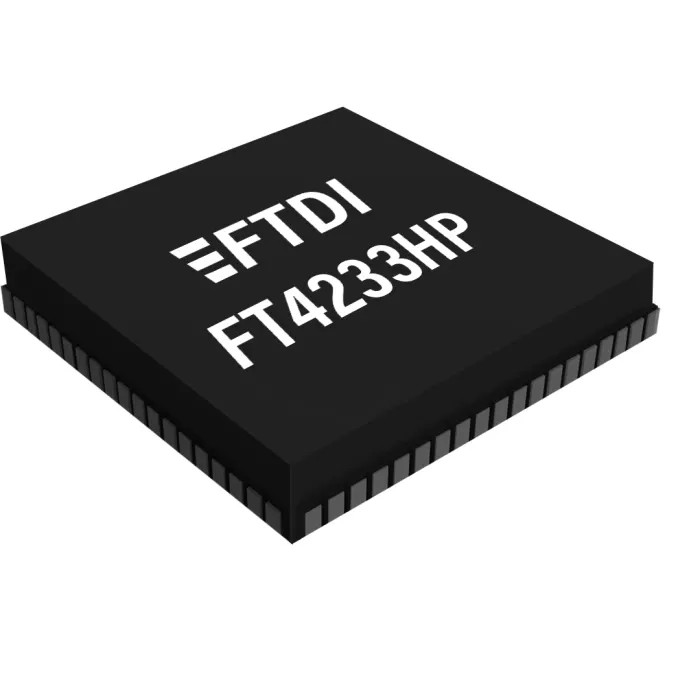

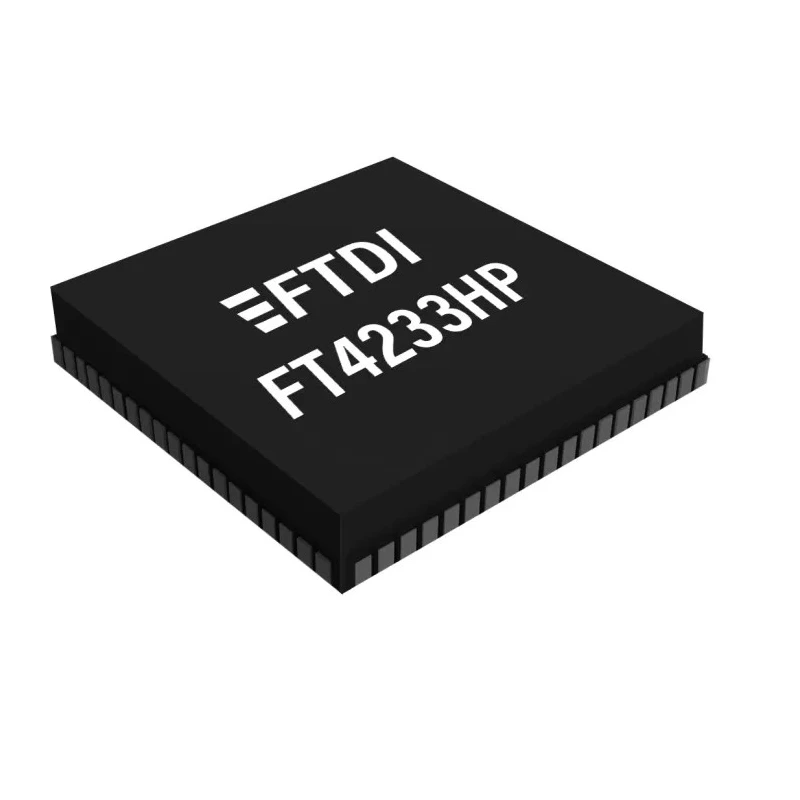

FTDI Chip Controller IC 4-Channel 12 Mbps 1.32V USB 2.0 3.3 V 76-Pin QFN FT4233HPQ-TRAY
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Height | 1mm |
| Length | 8.85mm |
| Model | FT4233HPQ-TRAY |
| Mount Type | Surface |
| Series | FT4233HP |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB PD 3 |
| Standards/Approvals | RoHS |
| Pin Count | 76 |
| Maximum Supply Voltage | 1.32V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 870μA |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 4 |
| USB Specification | USB Type C |
| Supported Protocols | USB 2.0 |
Key Features
- Supports high-speed USB data transfer up to 12 Mbps with 4 independent transceiver channels.
- Operates at supply voltages of 1.32V minimum and 3.3V nominal, ensuring compatibility with USB 2.0 devices.
- Features a compact 76-pin QFN package suitable for surface mounting on PCBs.
- Integrated USB PD 3.0 controller supporting power delivery and Type-C functionality.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Includes ESD protection enhancing device reliability and robustness in electronic systems.
- Low supply current consumption of 870 μA optimizing power efficiency.
- Complies with RoHS standards ensuring environmental and safety compliance.
Product Description
The FTDI Chip FT4233HPQ-TRAY is a versatile Controller IC designed for high-speed USB applications, providing four independent USB channels capable of data rates up to 12 Mbps. Featuring a 76-pin QFN surface-mount package with a compact height of 1 mm and length of 8.85 mm, this device integrates support for USB Type-C and USB 2.0 standards allowing implementation in modern USB interface designs.
This controller incorporates USB Power Delivery (PD) 3.0 specifications with full support for power negotiation between devices. It can operate as both sink and source, supporting multiple PDOs including 5V, 9V, 12V, 15V, and 20V at up to 3A, facilitating efficient power management in USB systems. The device features a built-in PD policy engine based on a 32-bit RISC microcontroller with 8 kB RAM and 48 kB ROM, enabling configurable USB PD profiles via external EEPROM or an external MCU through I2C interface.
The four USB transceivers allow multiplexing of UART and other interfaces, making it suitable for multi-function USB bridge applications. The IC supports hot-swap capabilities, dual-role power functionality, and advanced power management features required in industrial, laboratory, commercial, and telecommunications environments.
Designed to work reliably from a wide temperature range of -40°C to +85°C, the FT4233HPQ-TRAY also includes robust ESD protection, meeting common electronic safety standards and RoHS environmental compliance.
Supports multiple USB data channels with high-speed transfer rates. Fully compliant with USB Type-C and Power Delivery 3.0 standards. Compact QFN package ideal for dense PCB layouts. Wide operational temperature range for versatile industrial use.
Energy-efficient with low supply current consumption. Configurable Power Delivery parameters via EEPROM and MCU interfaces. Compatible with various USB host and device designs requiring multi-channel controllers. Meets RoHS and ESD protection standards for safety and reliability.
This product is suitable for integration into semiconductor and electronic components applications including embedded systems, industrial automation, telecommunications, and laboratory instrumentation requiring advanced USB interface control and power delivery management.
For more USB Interface IC products and accessories, explore the Electronics & Electricals category at EnvMart.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FT4233HPQ-TRAY supports a maximum data transfer rate of 12 Mbps.
It operates at a minimum supply voltage of 1.32V and a nominal supply voltage of 3.3V.
This model comes in a 76-pin QFN package with a height of 1 mm and a length of 8.85 mm.
It features four independent transceiver channels for USB data communication.
The FT4233HPQ-TRAY operates within a temperature range of -40°C to 85°C.
Yes, it includes an integrated USB PD 3.0 controller that supports power delivery and Type-C functionality.
This controller supports USB 2.0 protocols, enabling compatibility with various USB devices.
It has a low supply current consumption of 870 μA, optimizing power efficiency.
The FT4233HPQ-TRAY complies with RoHS standards, ensuring environmental and safety compliance.
Yes, it is designed for surface mounting on PCBs, making it suitable for compact applications.
Yes, the power delivery parameters can be configured via external EEPROM or an external MCU through I2C interface.
It is suitable for integration into embedded systems, industrial automation, telecommunications, and laboratory instrumentation.
