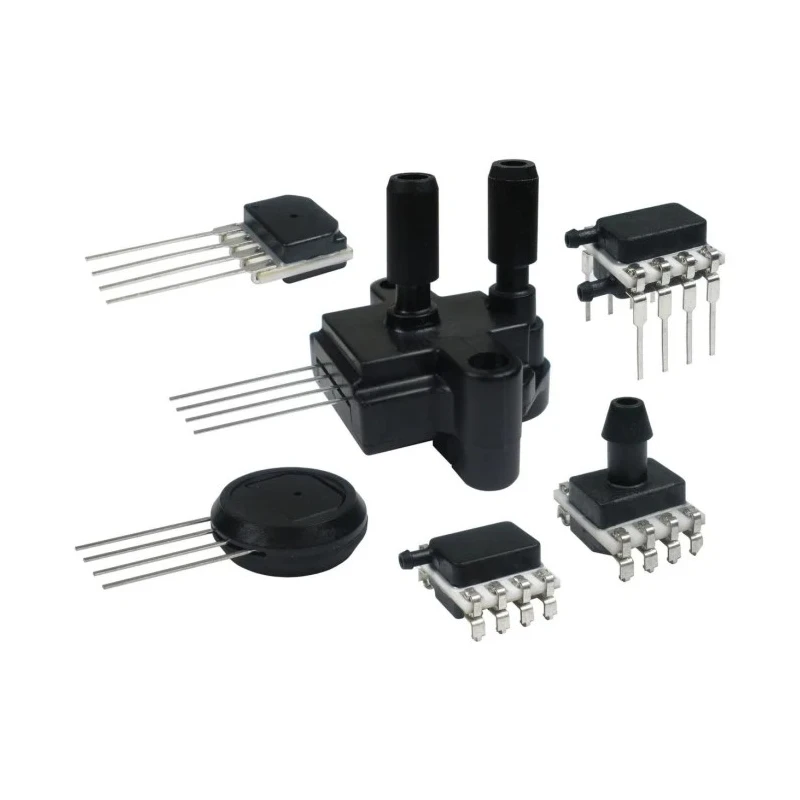

Honeywell Technologies Piezoresistive Pressure Sensor Board 8-pin DIP Package HSCDANV001BAAA5

Honeywell HSCDANV001BAAA5 is a high-precision piezoresistive pressure sensor mounted on a board with an 8-pin DIP package designed for measuring absolute, gauge, or differential pressure in non-corrosive, non-ionic gases and select liquids. This sensor ensures reliable and calibrated outputs with temperature compensation that supports integration into microcontroller or analog systems, making it well-suited for compact PCB integration within industrial, medical, and HVAC environments.

The device features ±0.25% accuracy, minimizing software calibration efforts, and operates on low voltages ranging from 3.3V to 5V. Its single axial barbed port design allows for straightforward direct tubing connection, and it withstands overload pressures up to 200 kPa for continuous robust performance. The operating temperature range of -20°C to 85°C permits use in demanding environmental conditions.

Applications include respiratory airflow monitoring, HVAC filter clog detection, gas flow instrumentation, chromatography, ventilator circuits, anesthesia systems, and battery-powered instruments requiring low power consumption. The sensor provides either ratiometric analog output or 12-14 bit digital interfaces such as I2C or SPI depending on configuration. Temperature effects are compensated by an on-board ASIC for stable and accurate readings.

Manufactured following ISO 9001 quality standards, the Honeywell HSC series sensor is a reliable solution for precision pressure measurements. Its compact dimensions of 13.75 mm height, 13.3 mm width, and 10 mm length facilitate integration into systems with limited space constraints.

Provides ±0.25% accuracy, reducing the need for software calibration. Operates at a minimum supply voltage of 3.3V and a maximum supply voltage of 5V suitable for low-voltage systems. Features single axial barbed port for easy direct tubing connection.

Supports maximum operating pressure of 100 kPa and overload protection up to 200 kPa. Compact dimensions of 13.75 mm height, 13.3 mm width, and 10 mm length enable PCB integration. Designed for operating temperatures from -20°C to +85°C, suitable for harsh environments.

Complies with ISO 9001 manufacturing standards ensuring product quality. Ideal for flow monitoring, HVAC filter clog detection, gas flow instrumentation, ventilator, and anesthesia circuitry. Sensor outputs calibrated analog and digital signals with temperature compensation on-board.
