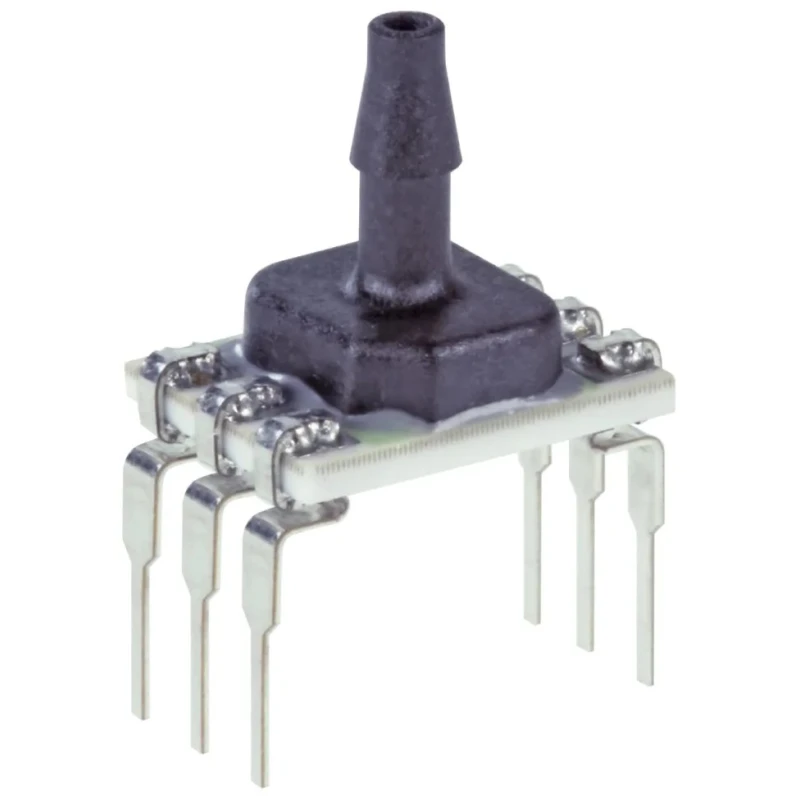

Honeywell Technologies Gauge Pressure Sensor Board 6 DIP 15 psi Max Pressure ±0.25% Accuracy ABPDANV015PGSA3

Honeywell Technologies ABPDANV015PGSA3 gauge pressure sensor board is a precision 6-pin DIP packaged device designed for reliable measurement of gaseous and liquid media pressures up to 15 psi. It delivers excellent accuracy of ±0.25% and is suitable for various industrial, laboratory, and medical applications requiring stable, ratiometric analogue or digital pressure outputs. This sensor operates over a wide temperature range from -40°C to 85°C and features a single axial barbed pressure port to enable straightforward tube connections.

The sensor integrates onboard ASIC calibration and temperature compensation to maintain high measurement certainty with a total error band of ±1.5% full scale span, ensuring minimal performance deviation over time. It supports outputs compatible with I2C or SPI digital interfaces at up to 2 kHz update rates, making it versatile for modern electronic control systems.

Constructed from BPA Free materials certified to LFGB and NSF-169 standards, the ABPDANV015PGSA3 meets strict safety and environmental requirements. Manufactured under ISO 9001 automotive standards, it is an industrial-grade component trusted in applications such as CPAP and ventilator pressure monitoring, blood analysis instruments, HVAC pressure transmitters, pneumatic control systems, coffee makers, and other commercial appliances.

Its board-mount DIP package and 6-pin configuration simplify PCB assembly and integration into custom sensor modules or instrumentation. The device’s capability to measure dry, non-corrosive gases and non-corrosive liquids (with optional liquid-media silicone gel) further broadens its usability.

Provides ±0.25% accuracy and supports a maximum operating pressure of 15 psi. 6-pin DIP package allows easy board mounting and integration. Operates over a wide temperature range from -40°C to 85°C. Features single axial barbed port for straightforward tubing connection.

Ratiometric analogue or 12-bit digital output compatible with I2C or SPI protocols. Certified BPA Free and compliant with LFGB and NSF-169 materials standards. Calibrated and temperature compensated on onboard ASIC for precise pressure measurement.

Designed according to ISO 9001 automotive standard ensuring quality manufacturing. Suitable for medical ventilators, HVAC systems, pneumatic controls, and commercial appliances.

Ideal for electronic component integrators, sensor module manufacturers, and system designers requiring a reliable gauge pressure sensing solution meeting industrial standards. Browse Honeywell products and Pressure Sensor ICs at EnvMart for quality and performance.
