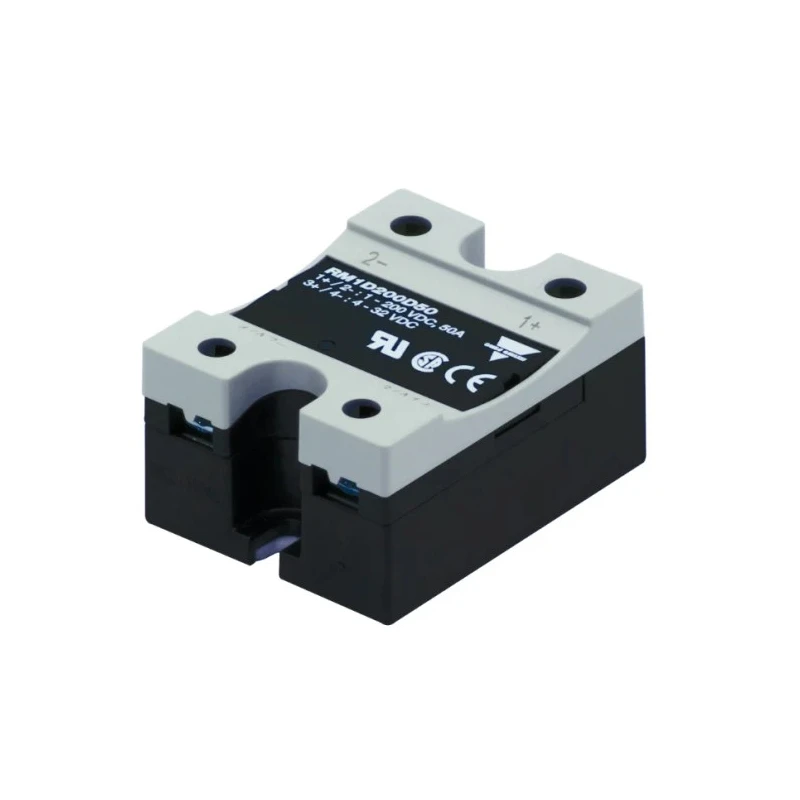

Carlo Gavazzi Solid State Relay RM1D Series, 50 A Load, Chassis Mount, 200 V DC Load, 32 V Control
Specifications
| Country of Origin | China |
|---|---|
| Brand | Carlo Gavazzi |
| Model | RM1D |
| IP Rating | IP20 |
| Mount Type | Chassis |
| Output type | MOSFET |
| Series | RM1D |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | DC Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 200V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 4.5V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mA |
| Max. rated current (with heatsink) | 50 ADC |
Key Features
- Supports maximum load current of 50 A for DC applications.
- Designed for chassis mounting with reliable screw terminals.
- Operates with a maximum load voltage of 200 V DC and minimum load voltage of 1 V DC.
- Control voltage range spans from 4.5 V to 32 V for flexible switching.
- Features MOSFET output type ensuring efficient low power dissipation switching.
- Equipped with LED control voltage indicator for easy status monitoring.
- IP20 rated enclosure providing protection suitable for industrial environments.
- Contact configuration is Single Pole Single Throw (SPST) specialized for DC switching.
Product Description
The Carlo Gavazzi RM1D200D50 is a high-performance solid state relay designed for DC switching applications. It supports a maximum load current of 50 amperes with a rated load voltage up to 200 V DC, suitable for demanding industrial and automation environments.
Its chassis mount design ensures easy and secure installation, featuring self-lifting screw terminals that facilitate efficient wiring and high contact reliability. The relay employs a MOSFET output technology, ensuring low power dissipation and fast switching response, making it ideal when rapid ON/OFF switching times are critical.
The control input voltage ranges from 4.5 to 32 volts DC, with an LED indicator that provides visual confirmation of control voltage presence, enhancing operational feedback. It features a Single Pole Single Throw (SPST) contact configuration optimized for DC loads and switching functions.
Designed to operate efficiently in temperatures ranging from -20°C to 80°C, the relay is rated IP20 for protection against solid foreign objects, making it suitable for a wide array of industrial, manufacturing, automation, and process control applications.
The product complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substance restrictions. Supports high load currents up to 50 A for DC systems. Chassis mounting with secure screw terminal connections.
Compatible with 200 V DC maximum load voltage and 1 V minimum load voltage. Operating control voltage range of 4.5 to 32 V DC for versatile control. Low power dissipation MOSFET output technology. LED indicator for control voltage presence status.
Single Pole Single Throw (SPST) contact configuration specialized for DC switching. Operating temperature range from -20°C to 80°C suitable for industrial environments. IP20 protection rating for ingress resistance. RoHS compliant for environmental safety.
This Carlo Gavazzi solid state relay is an excellent choice for industrial automation, process control systems, and any application requiring high reliability DC load switching with fast response times.
Explore more Solid State Relays and related products by browsing the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 50 A for DC applications.
It can handle a maximum load voltage of 200 V DC and a minimum load voltage of 1 V DC.
The control voltage range spans from 4.5 V to 32 V DC, allowing for flexible switching options.
It employs MOSFET output technology, which ensures low power dissipation and fast switching response.
The relay features a Single Pole Single Throw (SPST) contact configuration specialized for DC switching.
It operates efficiently within a temperature range of -20°C to 80°C, suitable for various industrial environments.
This unit is designed for chassis mounting, ensuring easy and secure installation with screw terminals.
It has an IP20 rating, providing protection against solid foreign objects in industrial settings.
Yes, it is equipped with an LED indicator that shows the presence of control voltage, enhancing operational feedback.
The product complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substance restrictions.
It features screw terminals, which facilitate efficient wiring and high contact reliability.
The off state leakage current is specified at 0.1 mA, ensuring minimal power loss when the relay is not activated.
