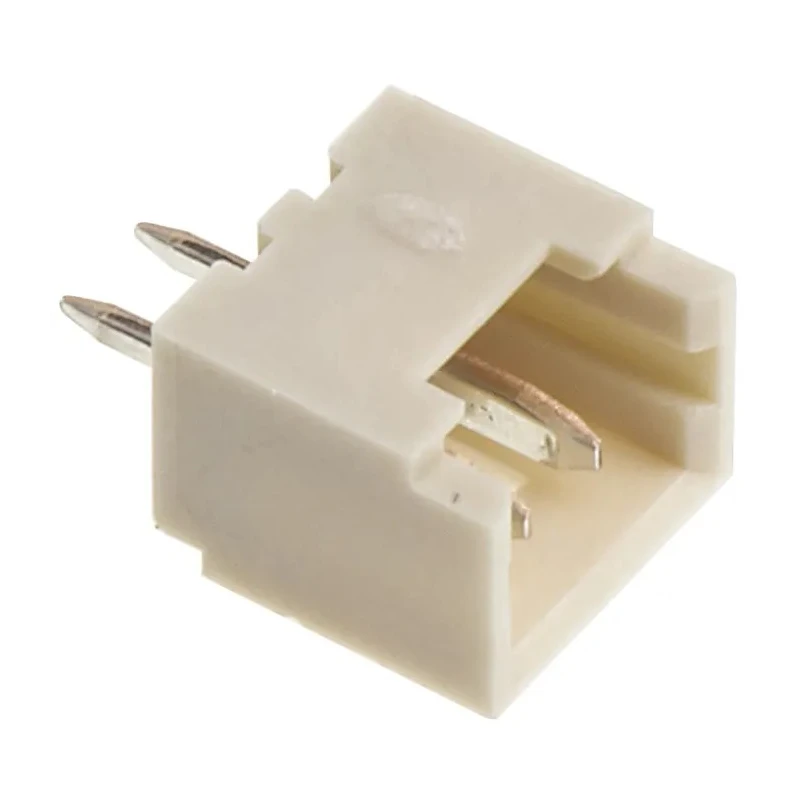

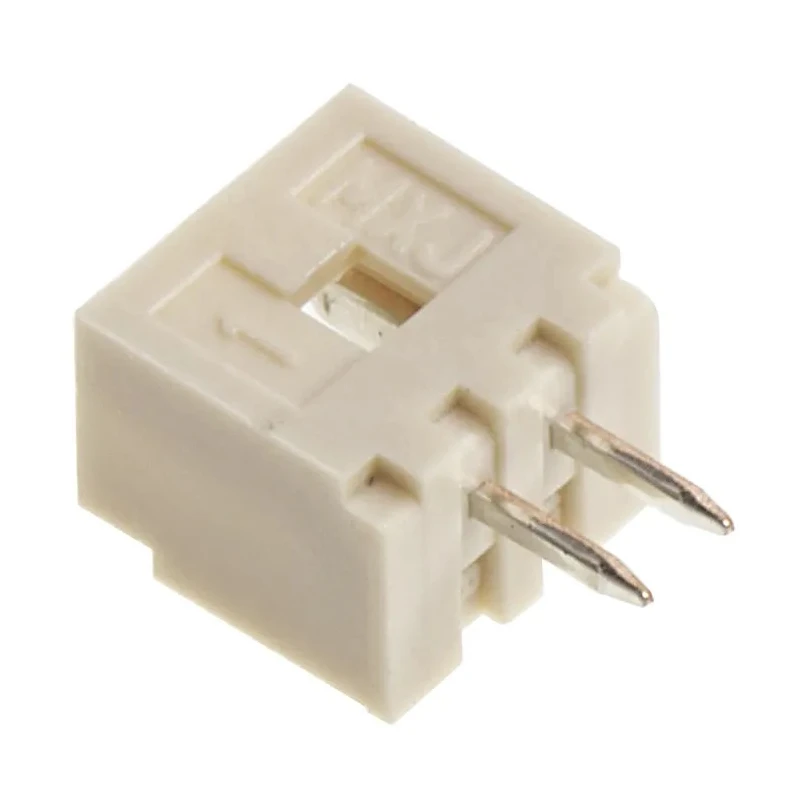

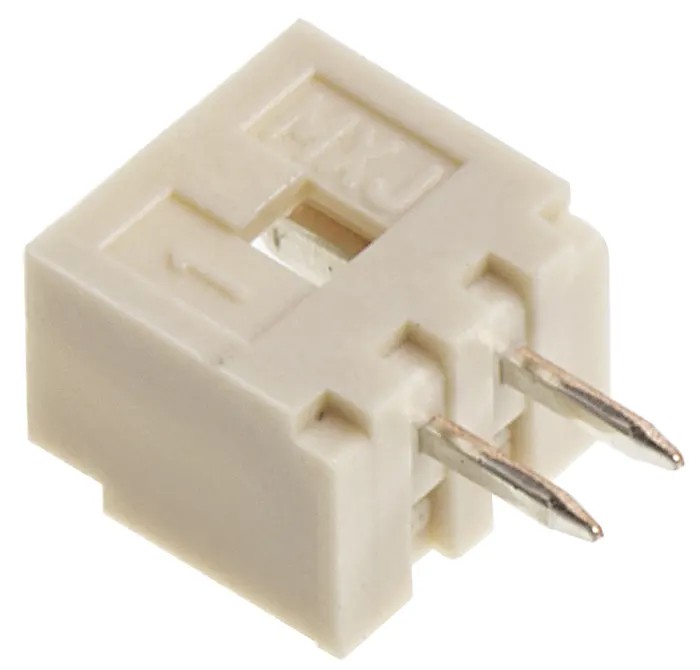

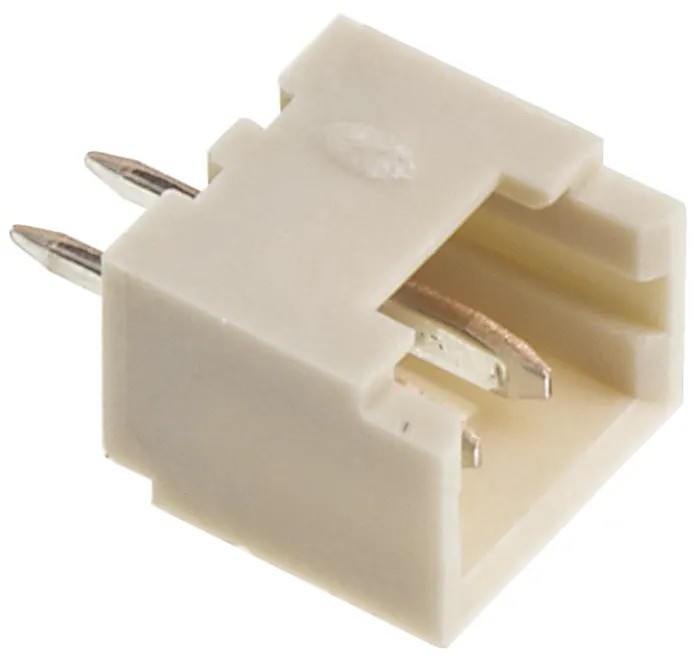

Molex PicoBlade Series Straight Through Hole PCB Header Connector, 2 Contact, 1 Row, 1.25 mm Pitch, Shrouded 53047-0210
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |

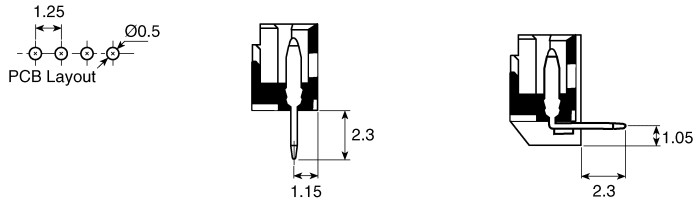

| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.3mm |
Key Features
- 1.25 mm pitch provides compact connection in tight PCB spaces.
- 2 contacts arranged in a single row for simplified wiring.
- Shrouded design with friction-locking mechanism ensures secure mating.
- Solder termination type guarantees strong and permanent PCB joins.
- Phosphor bronze contacts plated with tin resist corrosion and enhance conductivity.
- Wide operating temperature range from -40°C to 85°C suits harsh industrial environments.
- Supports 1 A current suitable for low power electronic applications.
- Tail pin length of 2.3 mm accommodates reliable mounting and soldering.
Product Description
Molex 53047-0210 PicoBlade Series Straight Through Hole PCB Header Connector with 2 contacts in 1 row and a 1.25 mm pitch is designed for compact, reliable wire-to-board connections in demanding electronic assemblies. Featuring a shrouded housing and friction-locking mechanism, this connector safeguards against accidental unmating caused by heavy vibration or mishandling in industrial settings.
Constructed with phosphor bronze contacts plated in tin, it offers excellent conductivity and corrosion resistance. The through-hole solder termination creates a robust, airtight electrical and mechanical bond to the printed circuit board, supporting up to 1 A current at 125 V and operating safely across a broad temperature range (-40°C to 85°C).
This single-row, two-contact male header with a straight orientation and 2.3 mm tail pin length is optimized for applications where PCB space saving and secure connections are essential. Its lightweight nylon housing (57.8 mg) ensures minimal mechanical load on the board, ideal for industrial, automotive alarm systems, audio and DVD players, and medical equipment.
The PicoBlade family is recognized for up to 45% space savings on PCBs versus 2.00 mm pitch systems while maintaining performance. The friction lock engages latching ramps to maintain durability up to 30 mating cycles.
Compact 1.25 mm pitch for tight PCB layouts. High durability with up to 30 mating cycles. Shrouded Connector housing with friction locking. Phosphor bronze tin-plated contacts for conductivity and corrosion resistance. Broad operating temperature suitability from -40°C to 85°C.
Solder termination ensures strong, lasting PCB connections. Manufactured in Japan meeting quality assurance standards.
This PCB header is well suited to industrial electronics manufacturing, automotive alarms, audio systems, and medical devices requiring compact and dependable wire-to-board connections. Explore the Molex PicoBlade series for space-efficient, reliable interconnection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header connector is 1.25 mm, allowing for compact connections in tight PCB spaces.
This connector supports a maximum current of 1 A, making it suitable for low power electronic applications.
It operates safely across a broad temperature range from -40°C to 85°C, suitable for harsh industrial environments.
This model features 2 contacts arranged in a single row for simplified wiring.
It uses a solder termination type, ensuring strong and permanent connections to the printed circuit board.
The contacts are made of phosphor bronze and are plated with tin, which enhances conductivity and resists corrosion.
The tail pin length is 2.3 mm, accommodating reliable mounting and soldering.
This connector is shrouded, which provides additional protection and a friction-locking mechanism to ensure secure mating.
This product is manufactured in Japan, meeting quality assurance standards.
The housing material is nylon, which contributes to its lightweight design.
It is well suited for industrial electronics manufacturing, automotive alarms, audio systems, and medical devices requiring compact connections.
The voltage rating for this connector is 125 V, making it suitable for various electronic applications.
