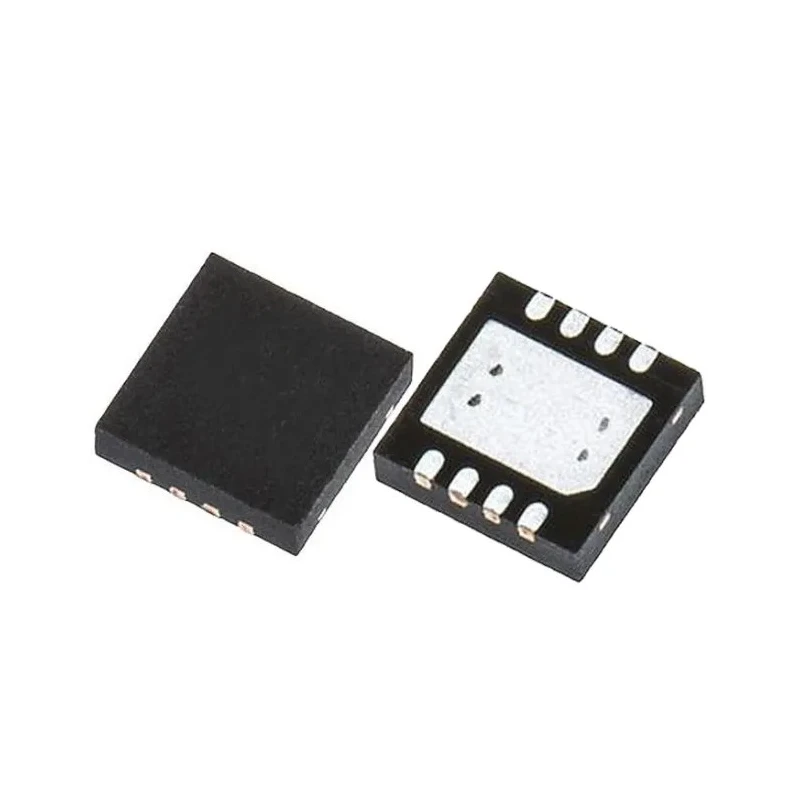

STMicroelectronics 8 kB Serial-I2C EEPROM 900 ns 8-Pin UFDFPN M24C08-RMC6TG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Length | 2.1mm |
| Model | M24C08-RMC6TG |
| Width | 3.1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | UFDFPN |
| Minimum Operating Temperature | -40°C |
| Memory size | 8kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Page Size | 16 byte |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 1mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 1K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 1K |
| M24C08-W | 2.5 V to 5.5 V |
| M24C08-R | 1.8 V to 5.5 V |
Key Features
- Features 8 kB memory size organized as 1K x 8 bit.
- Supports I2C serial communication with a maximum clock frequency of 400 kHz.
- Operates over a wide supply voltage range from 1.8 V to 5.5 V.
- Provides data retention of up to 200 years ensuring long-term reliability.
- Compliant with automotive standard AEC-Q100 for enhanced durability.
- Offers byte and page write capabilities within 5 ms per operation.
- Designed for operation in temperatures ranging from -40 °C to +85 °C.
- Includes enhanced ESD and latch-up protection for robust performance.
Product Description
STMicroelectronics M24C08-RMC6TG is an 8 kB EEPROM memory device providing reliable non-volatile storage with a maximum random access time of 900 ns. Packaged in a compact 8-pin UFDFPN surface-mount device measuring 2.1 mm by 3.1 mm, it supports standard I2C serial interface modes at clock frequencies up to 400 kHz.
This EEPROM is organized as 1K words by 8 bits, facilitating efficient memory management with a 16-byte page size. It supports byte and page write operations within 5 milliseconds, enabling fast and reliable data programming.
The device operates across a supply voltage range of 1.8 V to 5.5 V, making it suitable for various low-voltage and standard applications. The operating temperature range spans from -40 °C to +85 °C, suitable for automotive and industrial environments, supported by compliance with the AEC-Q100 standard.
STMicroelectronics M24C08-RMC6TG EEPROM offers enhanced ESD and latch-up protection, more than 4 million write cycles, and a data retention capability of over 200 years, ensuring long-lasting data integrity.
Applications include industrial automation, automotive systems, consumer electronics, and other embedded systems requiring reliable serial non-volatile memory storage. Its small footprint enables use in compact designs where board space is limited.
Features 8 kB memory size organized as 1K x 8 bit. Supports I2C serial communication with a maximum clock frequency of 400 kHz. Operates over a wide supply voltage range from 1.8 V to 5.5 V. Provides data retention of up to 200 years ensuring long-term reliability.
Compliant with automotive standard AEC-Q100 for enhanced durability. Offers byte and page write capabilities within 5 ms per operation. Designed for operation in temperatures ranging from -40 °C to +85 °C. Includes enhanced ESD and latch-up protection for robust performance.
Explore additional EEPROM and memory chip products from STMicroelectronics available on EnvMart for your semiconductor and embedded systems requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a memory size of 8 kB, organized as 1K x 8 bits.
It supports a maximum clock frequency of 400 kHz for I2C serial communication.
The device operates over a supply voltage range from 1.8 V to 5.5 V.
The maximum random access time is 900 ns.
It is designed to operate in temperatures ranging from -40 °C to +85 °C.
It comes in an 8-pin UFDFPN surface-mount package.
It offers byte and page write capabilities within 5 milliseconds per operation.
The data retention capability is up to 200 years, ensuring long-term reliability.
It is compliant with the automotive standard AEC-Q100 for enhanced durability.
This EEPROM has a pin count of 8.
The page size for this model is 16 bytes, facilitating efficient memory management.
It is suitable for applications in industrial automation, automotive systems, consumer electronics, and other embedded systems requiring reliable non-volatile memory storage.
