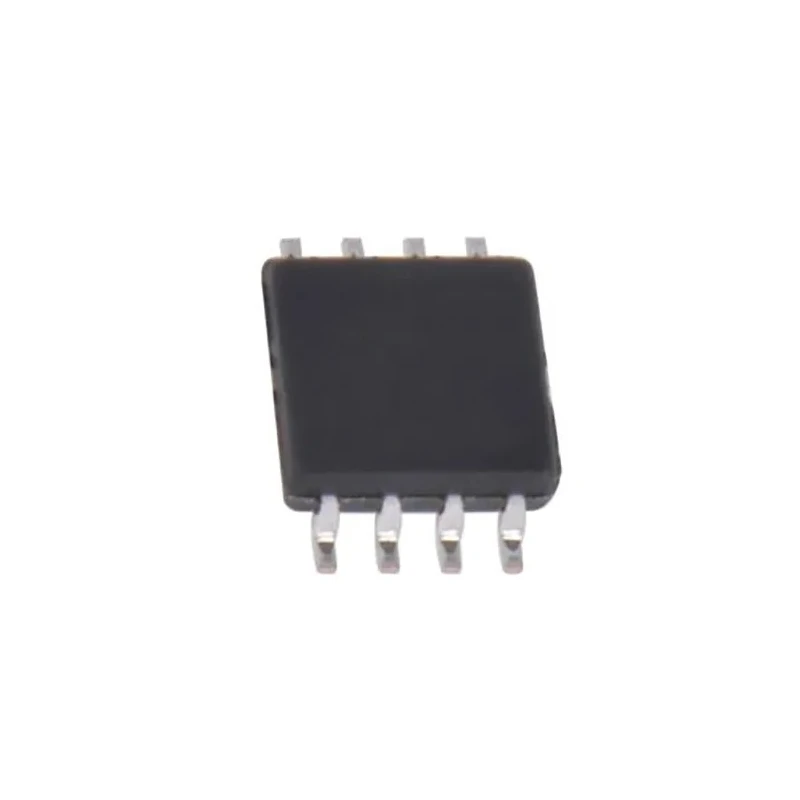

STMicroelectronics 2 kB EEPROM 900 ns 8-Pin TSSOP Serial-I2C M24C02-FDW6TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | M24C02-FDW6TP |
| Width | 169mm |
| Mount Type | Surface |
| Series | M24C02-F |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Memory size | 2kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Page Size | 16 byte |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Supply Current | 1mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 256 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 256 |
| M24C01/02-W | 2.5 V to 5.5 V |
| M24C01/02-R | 1.8 V to 5.5 V |
Key Features
- Provides 2 kB memory size organized as 256 words of 8 bits each.
- Supports Serial I2C interface with a maximum clock frequency of 400 kHz for fast communication.
- Operates over a wide voltage range from 1.7 V to 5.5 V for flexible supply options.
- Features low current consumption with a supply current of 1 mA during operation.
- Ensures data retention of over 200 years with endurance exceeding 4 million write cycles.
- Page write and byte write operations complete within 5 milliseconds for efficient data handling.
- Supports operation in industrial temperature range from -40°C to +85°C for harsh environments.
- Complies with automotive standard AEC-Q100, suitable for automotive electronic applications.
Product Description
STMicroelectronics M24C02-FDW6TP is a 2 kB EEPROM memory chip featuring a 900 ns maximum random access time packaged in a compact 8-pin TSSOP surface mount device. It supports a Serial I2C interface operating up to 400 kHz clock frequency, enabling efficient data communication in embedded and industrial control systems.
This memory device provides non-volatile storage organized as 256 words of 8 bits each. It supports byte and page write modes completing write cycles within 5 milliseconds, facilitating fast and reliable memory updates. The EEPROM functions over a wide supply voltage range from 1.7 V up to 5.5 V, allowing compatibility with various power domains.
With a long data retention period of over 200 years and write endurance exceeding 4 million cycles, the M24C02-FDW6TP ensures sustained performance in demanding applications. The device is rated for operation in extended industrial temperature ranges from -40°C to +85°C and meets stringent automotive qualification standards (AEC-Q100), making it suitable for use in automotive, industrial, and commercial environments.
The 8-pin TSSOP package has dimensions approximately 3.1 mm in length, 1.69 mm in width, and 1.2 mm in height, enabling installation in space-limited PCBs for compact system designs. Enhanced ESD and latch-up protections contribute to device durability and reliability during handling and operation.
Typical applications include data logging, parameter storage, embedded controller memory expansion, and automotive electronics requiring robust, low-power, electrically erasable programmable read-only memory.
Provides 2 kB non-volatile memory with fast access times. Compatible with 400 kHz and 100 kHz I2C bus modes. Low power consumption with 1 mA supply current. Wide voltage operation from 1.7 V to 5.5 V. Highly reliable with over 4 million write cycles and 200-year data retention.
Industrial temperature operation from -40°C to +85°C. Automotive qualified meeting AEC-Q100 standards. Compact 8-pin TSSOP surface mount package. Enhanced ESD and latch-up protection. Page size of 16 bytes supports efficient memory writing.
Discover more EEPROM and memory solutions in the Semiconductor section on EnvMart for industrial, automotive, and embedded system applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides 2 kB of non-volatile memory organized as 256 words of 8 bits each.
It supports a maximum clock frequency of 400 kHz for fast communication over the Serial I2C interface.
The device operates over a wide voltage range from 1.7 V to 5.5 V, allowing compatibility with various power domains.
The maximum random access time is 900 ns, facilitating quick data retrieval.
It has a supply current of 1 mA during operation, which contributes to its low power consumption.
The package dimensions are approximately 3.1 mm in length, 1.69 mm in width, and 1.2 mm in height.
The EEPROM has a write endurance exceeding 4 million cycles, ensuring long-term reliability for data storage.
It ensures data retention of over 200 years, making it suitable for long-term applications.
This model operates in an industrial temperature range from -40°C to +85°C, suitable for harsh environments.
It complies with the automotive standard AEC-Q100, making it suitable for automotive electronic applications.
The device supports both page write and byte write operations, completing these within 5 milliseconds for efficient data handling.
Typical applications include data logging, parameter storage, and embedded controller memory expansion, particularly in automotive electronics.
