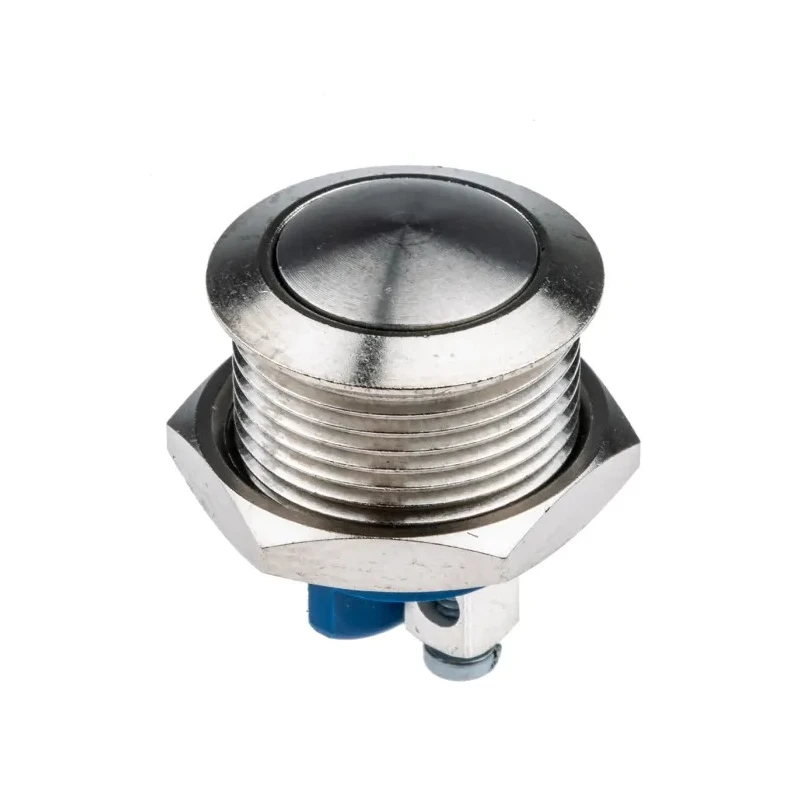

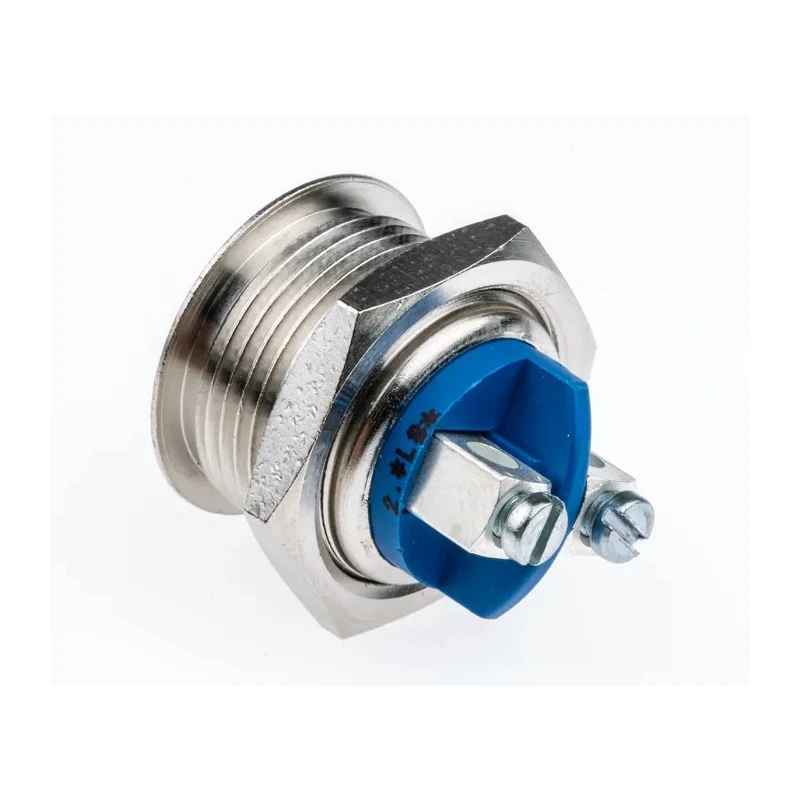

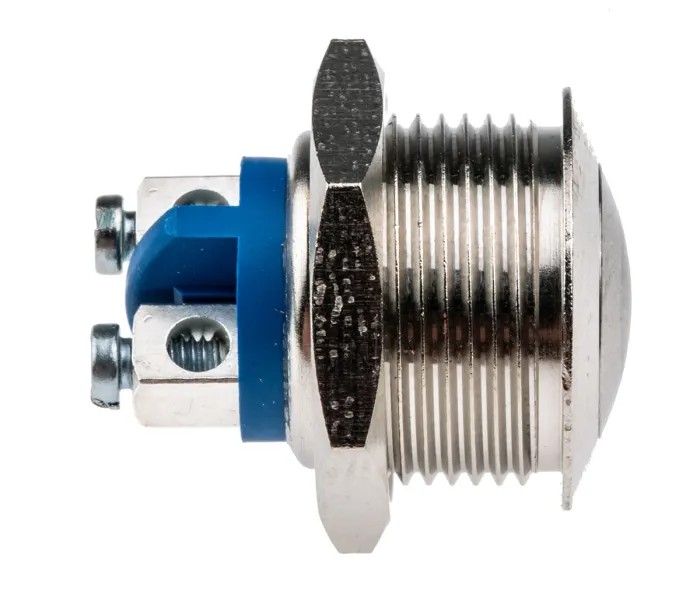

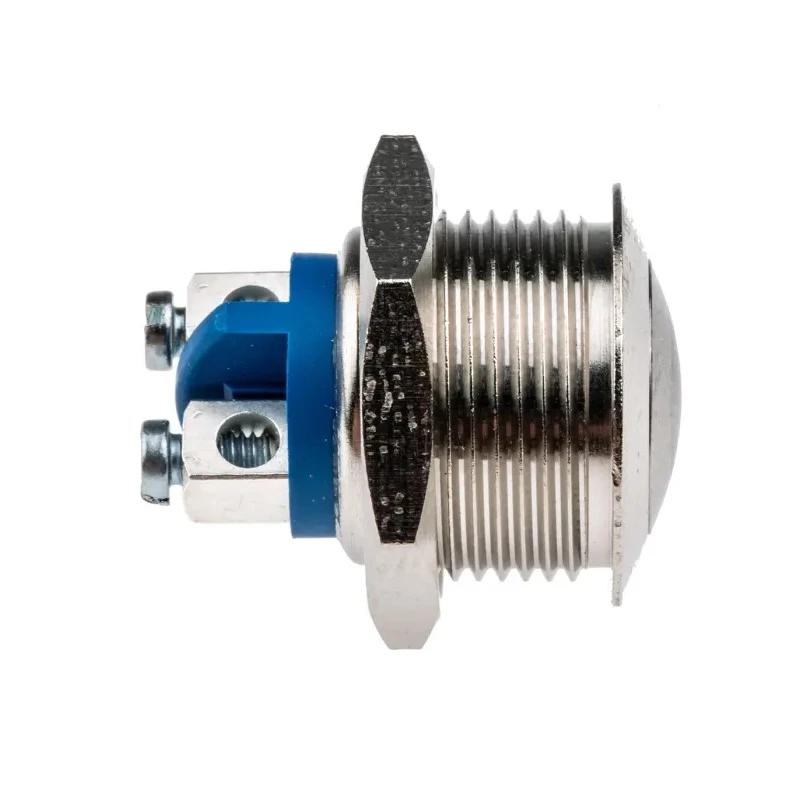

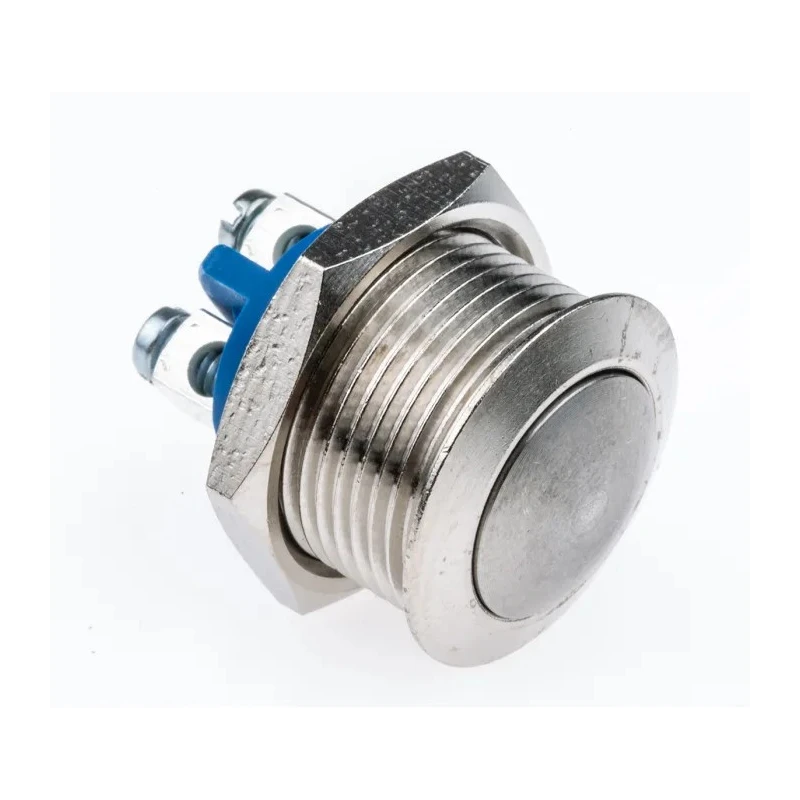

APEM AV Series Push Button Switch Momentary Panel 16.2 mm Cutout SPST IP65 48 V dc AV1630C910
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | AV1630C910 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 200mA |
| Stock No | 278-1133 is a 16mm screw terminal curved push-button switch |
Key Features
- The actuator color is silver with a button style actuator.
- It features a momentary switch operation for reliable momentary contact.
- Terminal type is screw, ensuring secure wiring connections.
- Designed for operating temperatures from -30°C to 70°C with RoHS compliance.
- Has a maximum switch contact current of 200 mA, suitable for low current applications.
- The IP65 rating provides robust protection against dust and water jets.
- Manufactured in France with a durable polybutylene housing and nickel plated brass bushings.
- Mechanical life rated at 100,000 cycles for long-term durability.
Product Description
APEM AV1630C910 Push Button Switch is a momentary type electrical switch designed for panel mounting with a 16.2 mm cutout. It features a single-pole single-throw (SPST) configuration and supports operation at 48 V dc. The switch is constructed with robust polybutylene housing, nickel-plated brass bushings, and silver-plated contacts for enhanced reliability and durability.
With an IP65 rating, this push button switch is protected against dust ingress and water jets, making it suitable for demanding industrial and automation environments. The actuator color is silver and styled as a button, operated momentarily to provide quick contact.
The switch supports operating temperatures ranging from -30°C to 70°C and complies with RoHS standards ensuring environmental safety. It carries a maximum switch contact current rating of 200 mA, suitable for control and signaling circuits that require low current switching.
The mechanical stop incorporated in the design offers a high degree of impact resistance and protects the contact mechanism, ensuring a long mechanical life of 100,000 cycles. The switch terminals use screw-type connections, providing secure and stable wiring.
This push button switch is ideal for use in industrial control panels, electrical automation systems, machinery control, and other electrical applications requiring reliable momentary switch operation and robust environmental protection.
The actuator color is silver with a button type actuator. Momentary switch operation provides reliable momentary contact. Screw terminal for secure electrical connections. IP65 rating ensures dust tight and water jet protection.
Operating temperature range from -30°C to 70°C. Mechanical life of 100,000 cycles for enhanced durability. RoHS compliant for environmental safety. Maximum switch contact current of 200mA. Manufactured in France with premium materials.
Designed for industrial, electrical, and automation applications. Explore similar reliable Push Button Switches and components in the Electronics & Electricals category at EnvMart for robust and durable solutions to your control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this switch is 70°C.
The APEM AV1630C910 has an IP65 rating, providing protection against dust and water jets.
It features screw terminals for secure and stable wiring connections.
This switch has a single-pole single-throw (SPST) contact configuration.
The actuator style is a button, and its color is silver.
The minimum operating temperature is -30°C.
The maximum switch contact current is rated at 200 mA.
It has a mechanical life rated at 100,000 cycles.
Yes, it is RoHS compliant, ensuring environmental safety.
It is suitable for industrial control panels, electrical automation systems, and machinery control.
The required panel cutout size for this switch is 16.2 mm.
This push button switch is manufactured in France.
