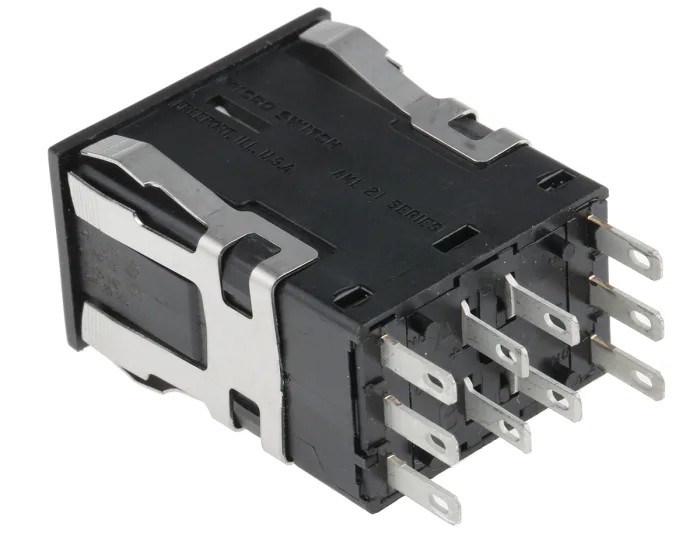

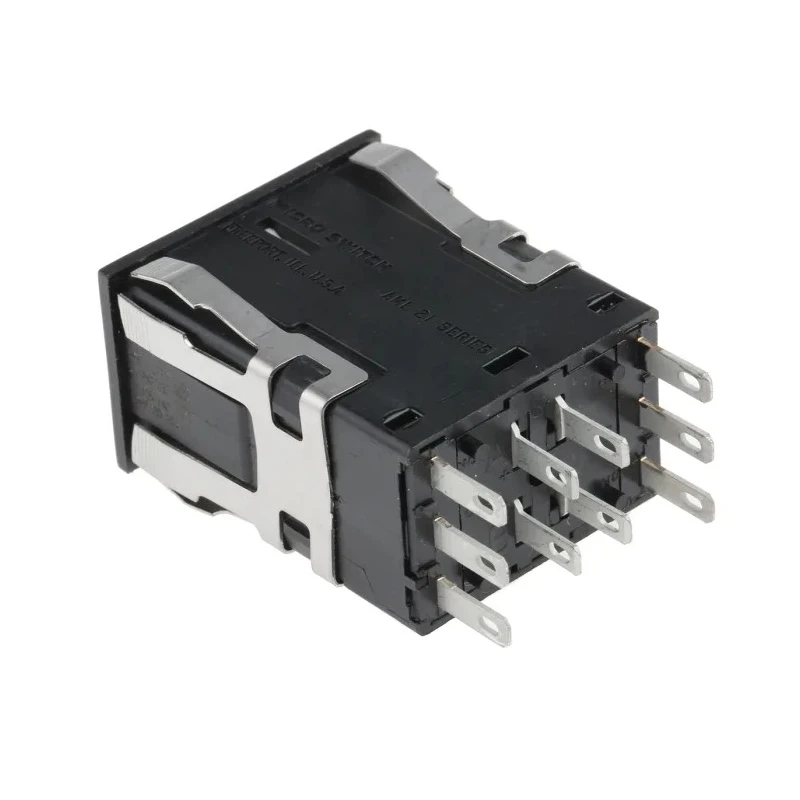

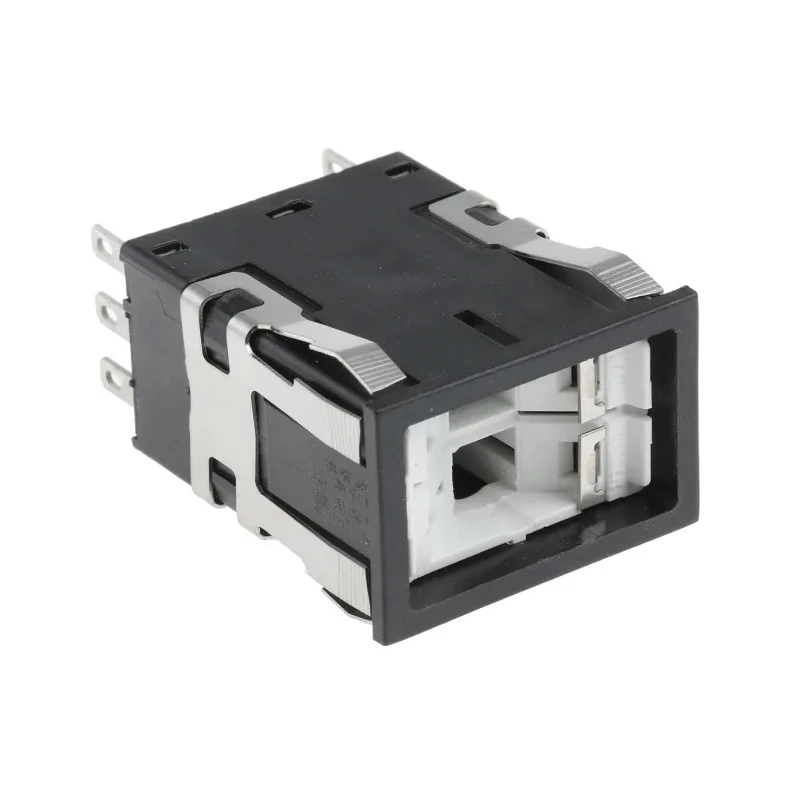

Honeywell Technologies AML Series Front Panel Mount Black Momentary Push Button Switch DPDT IP67 AML21GBA2AC

Honeywell Technologies AML21GBA2AC is an industrial-grade front panel mount push button switch engineered for robust and precise control in electrical and automation systems. Featuring a double pole double throw (DPDT) contact arrangement with momentary actuation, this switch facilitates simultaneous switching of two independent circuits without latch, ideal for transient command applications.

The switch actuator is made from durable black polycarbonate in a rectangular shape, ensuring tactile and repeatable operation. The main housing employs glass reinforced polyester (PBT) for enhanced mechanical strength and resistance to wear and environmental stress.

Rated IP67, the AML21GBA2AC offers full protection against dust ingress and temporary immersion in water, making it suitable for installation in harsh, dusty, or wet environments such as industrial machinery, electrical distribution enclosures, and automation equipment control panels.

The device supports secure and reliable wiring using solder and tab terminals. It operates efficiently within a temperature range of 0°C to +55°C, allowing use in elevated ambient temperature settings. This push button switch adheres to UL and CSA certified safety standards, ensuring compliance with recognized North American electrical testing requirements.

Although the actuator itself is not illuminated, it supports external illumination circuits rated at 250V for enhanced visibility when integrated with suitable lighting modules. The switch’s front panel mounting design allows easy installation and operator interaction, suitable for retrofitting and new installations alike.

2PDT contact configuration for dual circuit switching. IP67 ingress protection for dust and water resistance. Momentary actuator for transient control without latching. Durable polycarbonate actuator and glass reinforced polyester body.

Solder and tab terminals for stable electrical connections. Operating temperature range 0°C to +55°C. UL and CSA approvals for safety compliance. Front panel mount design for easy installation. Compatible with external illumination circuits rated to 250V.

This push button switch is ideal for industrial automation control panels, operator stations in electrical distribution, and transient input commands for machinery control. It can be used effectively in test rigs and retrofitting older systems requiring soldered wiring methods.
