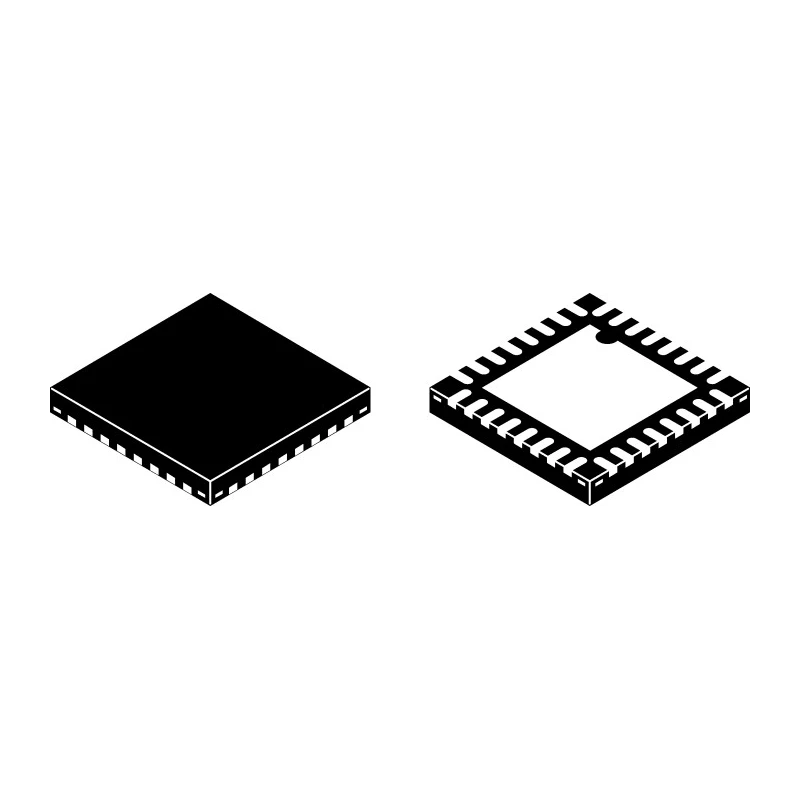

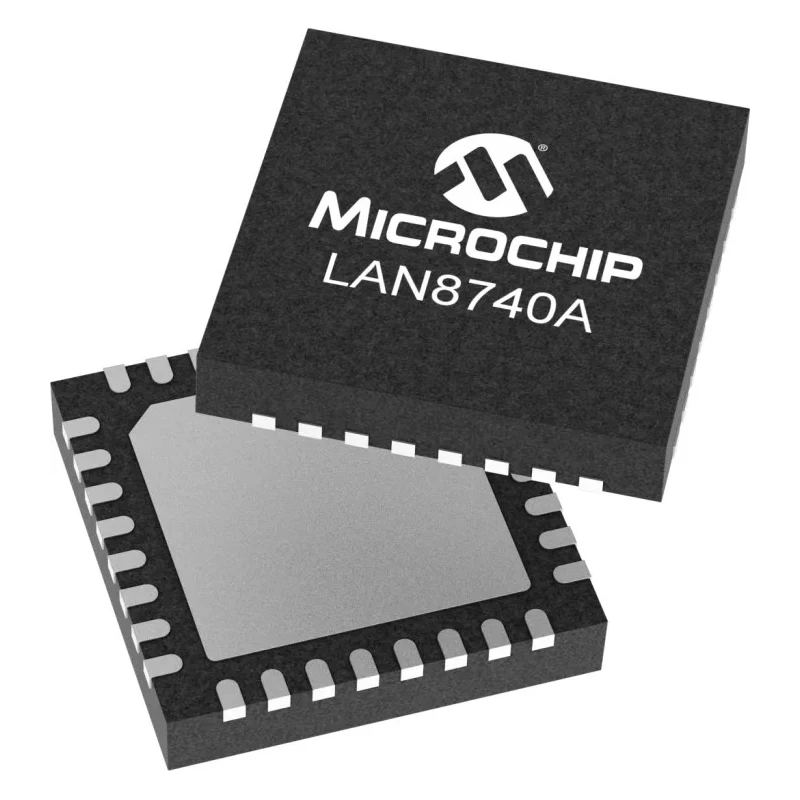

Microchip 32-Pin SQFN Ethernet Transceiver 3.3 V 100 Mbps RMII Full Duplex/Half Duplex LAN8740A-EN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 5mm |
| Model | LAN8740A-EN |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | SQFN |
| Minimum Operating Temperature | 0°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | RMII |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 55mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3az, IEEE 802.3, IEEE 802.3u |
| Number of Transceivers | 1 |
Key Features
- Supports 10/100 Mbps data rates for high-speed Ethernet communication.
- 32-pin SQFN surface-mount package ensures compact PCB footprint.
- Operates with a supply voltage of 3.3 V and a low supply current of 55 mA.
- Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards.
- Internal loopback mode facilitates easy testing and diagnostics.
- Operates within a temperature range of 0°C to 70°C for reliable performance.
- Designed for surface mounting with a 5 mm x 5 mm x 1 mm dimension.
- Single transceiver channel supporting both full and half duplex modes.
Product Description
Microchip LAN8740A-EN is a 32-pin SQFN Ethernet Transceiver designed for efficient and reliable 10/100 Mbps data communication over RMII interfaces. Operating at 3.3 V with a maximum supply current of 55 mA, it supports both full duplex and half duplex modes, making it versatile for various network configurations.
This device complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards, ensuring compatibility with modern Ethernet protocols and energy-efficient operation. The internal loopback mode provides essential diagnostics capability for network testing.
The compact SQFN package measures 5 mm in width, 5 mm in length, and 1 mm in height, optimizing PCB space for embedded applications. It is surface mount compatible and designed to operate over a temperature range of 0°C to 70°C, suitable for commercial and industrial environments.
Microchip LAN8740A-EN Ethernet Transceiver is ideal for integration into electronic components within networking equipment, industrial control systems, embedded systems, and telecommunications infrastructure. It enables high performance Ethernet interface IC applications requiring 100 Mbps throughput with power-efficient operation.
Supports 10/100 Mbps data rates for high-speed Ethernet communication. 32-pin SQFN surface-mount package ensures compact PCB footprint. Operates with a supply voltage of 3.3 V and a low supply current of 55 mA. Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards.
Internal loopback mode facilitates easy testing and diagnostics. Operates within a temperature range of 0°C to 70°C for reliable performance. Designed for surface mounting with a 5 mm x 5 mm x 1 mm dimension. Single transceiver channel supporting both full and half duplex modes.
This Ethernet Transceiver from Microchip is an essential component for electronic design engineers, OEMs, and manufacturers focused on embedded networking solutions. Browse more Ethernet Interface ICs and semiconductor products on EnvMart for diverse applications in industrial, HVAC, telecommunications, and computing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 100 Mbps for high-speed Ethernet communication.
It operates with a supply voltage of 3.3 V.
The dimensions are 5 mm in length, 5 mm in width, and 1 mm in height.
It supports both full duplex and half duplex communication modes.
The LAN8740A-EN operates within a temperature range of 0°C to 70°C.
Yes, it is compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards.
It comes in a 32-pin SQFN surface-mount package.
The maximum supply current is 55 mA.
Yes, it features an internal loopback mode for easy testing and diagnostics.
It uses the RMII interface type for communication.
This unit supports a single transceiver channel.
The country of origin for this product is India.
