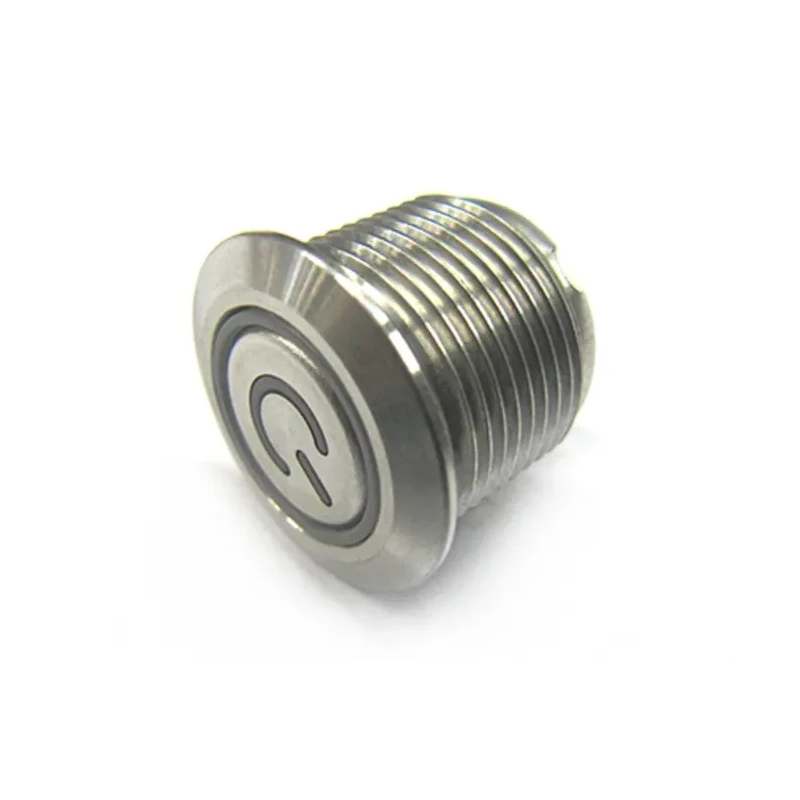

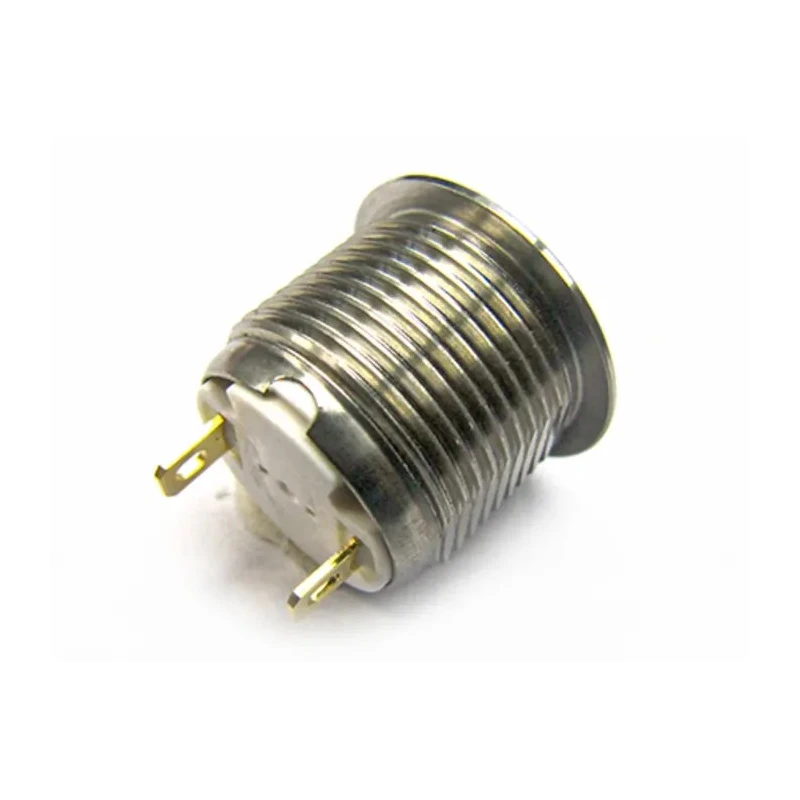

RS PRO Push Button Switch Momentary Panel Mount SPST 16 mm Cutout IP67 Rated 36 V dc 175-9192

RS PRO 175-9192 is a momentary push button switch designed for panel mounting with a 16 mm cutout. This SPST type switch is rated for 36 V dc operation with a maximum contact current of 2 A, suitable for precise switching tasks. It features a flat actuator style and solder terminals ensuring robust electrical connections. The switch body has an IP67 rating, making it dust tight and waterproof for protection against harsh industrial environments.

This switch complies with UL 94 V-0 and V-2 standards, ensuring flame retardant properties for safety in diverse conditions. Operating temperature ranges from -20°C to 70°C allow the switch to function reliably across a wide spectrum of industrial and commercial applications.

The RS PRO push button switch includes a power symbol legend on the actuator, simplifying identification and operation. Its construction offers light weight, high strength, corrosion resistance, and easy heat dissipation, making it ideal for industrial control instruments, medical equipment, security monitoring hardware, vehicle peripherals, audio-visual devices, and energy storage systems.

The vandal-resistant design enables application in public settings and areas requiring ruggedized switch components. This product combines reliability and durability for many demanding environments needing sealed and long-life expectancy switches.

Momentary switch operation for precise control applications. Panel mounting with a 16 mm cutout size for easy installation. Single Pole Single Throw (SPST) contact configuration ensures simple switching. IP67 rating provides dust tight and waterproof protection suitable for harsh environments.

Flat actuator style with solder terminals for secure connections. Operates at DC voltage of 36 V with 2 A contact current capacity. Wide operating temperature range from -20°C to 70°C for varied climates. Manufactured with UL 94 V-0 and V-2 approvals for flame retardance.

Features a power symbol legend for easy identification. Designed for industrial, medical, security, vehicle, and audio-visual equipment applications.
