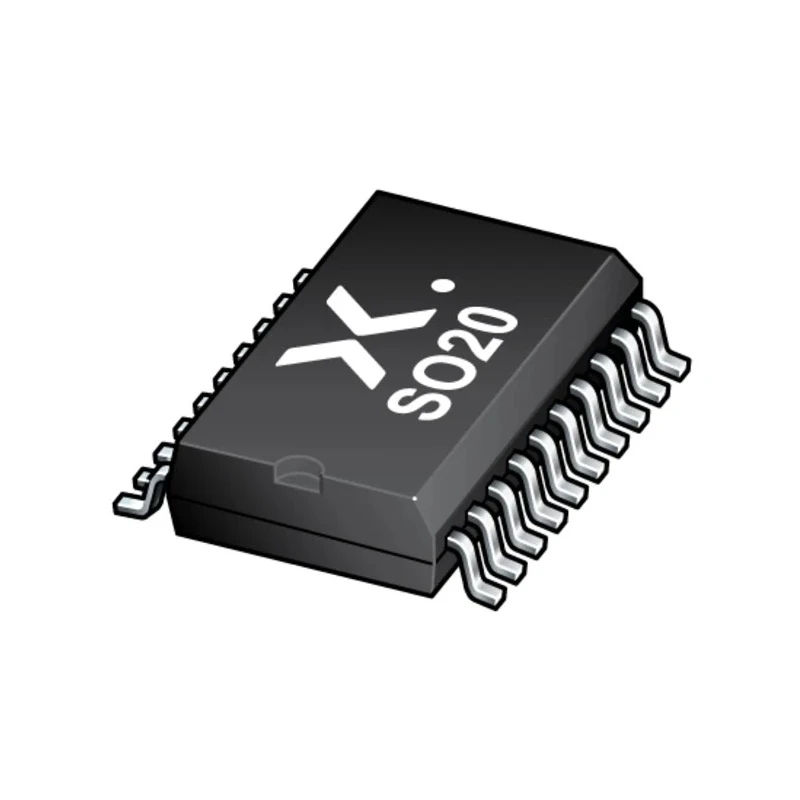

Nexperia 8-Bit Positive-Edge Triggered D-Type Flip-Flop IC with 3-State Outputs 20-Pin SO 2-6V 24MHz 74HC574D,653

Nexperia 74HC574D,653 is a logic IC specifically an 8-bit positive-edge triggered D-type flip-flop with 3-state outputs, designed for use in advanced electronic systems. It operates within a voltage range of 2 to 6 volts and supports clock frequencies up to 24 MHz, making it suitable for high-speed digital logic applications.

The IC features non-inverting polarity and a positive edge-triggered clock input ensuring precise timing control. The 3-state outputs are configurable via an output enable input that places outputs in a high-impedance state when disabled, allowing for effective bus interfacing in complex circuit designs.

Built for surface mount technology, the device comes in a 20-pin SO package with a height of 2.45 mm and length of 13 mm. Internally, clamp diodes are included to protect inputs and allow the use of current limiting resistors, which provides flexibility in mixed voltage environments including 5 V and 3.3 V systems.

This flip-flop IC offers multiple integrated features such as improved signal integrity through integrated termination resistors and high noise immunity, which enhances performance in industrial and commercial electronics environments.

Typical key industrial and commercial applications include frequency division operations, controlled delay circuits, and interfacing asynchronous systems with synchronous digital systems. Its robust operating temperature range from -40°C to 125°C allows deployment in harsh environments and automotive electronics that require high reliability.

The device operates at supply voltages from 2 to 6 V supporting flexible power configurations. Clock frequency is rated at 24 MHz with a propagation delay of 38 ns at the specified test conditions. Features 8 D-type flip-flop elements per chip with three-state output capability.

Output enable controls high impedance state ensuring effective bus management in digital electronics. Includes input clamp diodes for overvoltage tolerance and improved interfacing flexibility. Supports surface mount PCB assembly in a compact 20-pin SO package with a height of 2.45 mm and length of 13 mm.

Designed to work reliably across industrial temperature ranges from -40°C to 125°C.

This IC is ideal for integration in industrial, automotive, computing, telecommunication, and laboratory equipment requiring dependable flip-flop logic functions. For more products like this, explore the Electronics & Electricals category at EnvMart.
