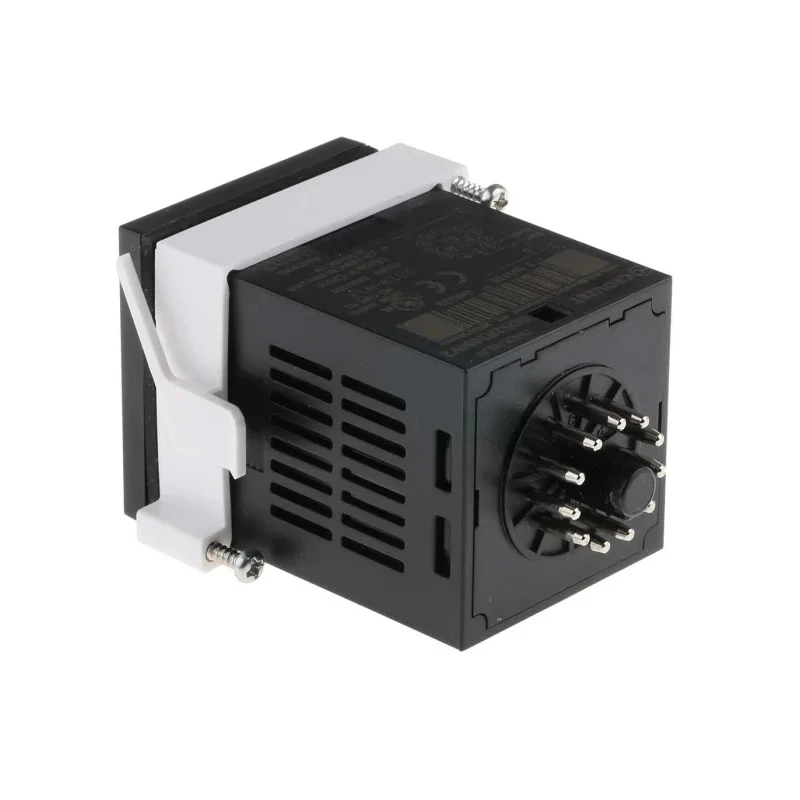

Crouzet Syr-Line Series Multifunction Panel Timer Relay, 2-Contact, 24-240 V AC/DC, Time Range 0.001 → 9999 h GDS2R10MV2

Crouzet GDS2R10MV2 is a high-performance multifunction panel timer relay designed for precision timing control in industrial automation applications. It supports a broad supply voltage range from 24 V to 240 V AC/DC, making it highly versatile for various electrical environments.

This panel mount timer relay features two contacts with a DPDT switching configuration and is rated IP66 against dust and water ingress, thus suitable for harsh industrial conditions. It operates reliably in temperature ranges from -10°C to 60°C and includes an 11-pin terminal type for easy installation.

The relay offers an extensive timing range starting from 0.001 seconds to up to 9999 hours, accommodating multiple timer functions such as delay on start, delayed interval, one-shot, recycler modes, symmetrical flashing, and total memory delay. Its intuitive 7-segment LCD display with backlight ensures clear timing values and straightforward programming. The unit also supports NPN or PNP input selections and instantaneous or delayed timer activation options.

This timer relay is engineered for demanding sectors including textiles, mining, chemical processing, irrigation, food and beverage handling, and complex industrial process control. Compliant with key industry standards such as CE, cULus Listed, IEC 61812-1, and RoHS, it guarantees quality and performance.

Compact and robust, the device measures 68 mm in height, 48 mm in length, and 48 mm in width, allowing seamless integration into control panels without occupying excessive space. Equipped with a DPDT contact configuration for versatile switching needs.

Offers a broad timing range covering milliseconds to thousands of hours. High environmental protection rated IP66 for dust and water resistance. Wide operating temperature range suitable for varied industrial environments.

Includes programming flexibility with multiple timer functions and memory options. Features an easy-to-read backlit LCD display for clear parameter setup. Supports multiple supply voltages for universal application compatibility.

Complies with international certifications ensuring industrial reliability. Designed for panel mounting with a secure 11-pin terminal connection.

For industrial automation professionals seeking precise, reliable timing control, the Crouzet GDS2R10MV2 panel Timer Relay is a versatile and trusted solution available in the EnvMart catalog.
