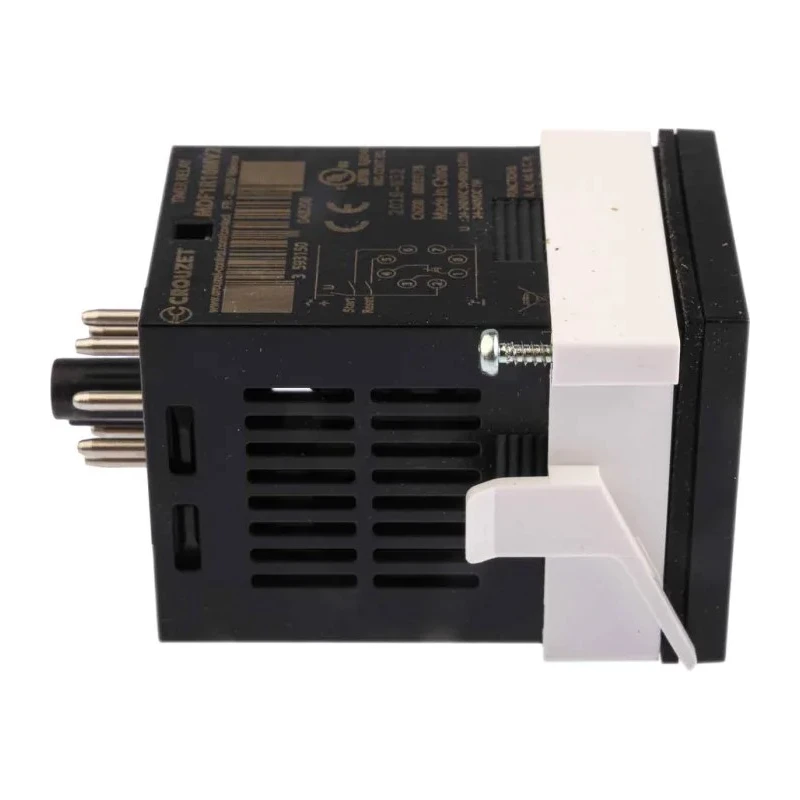

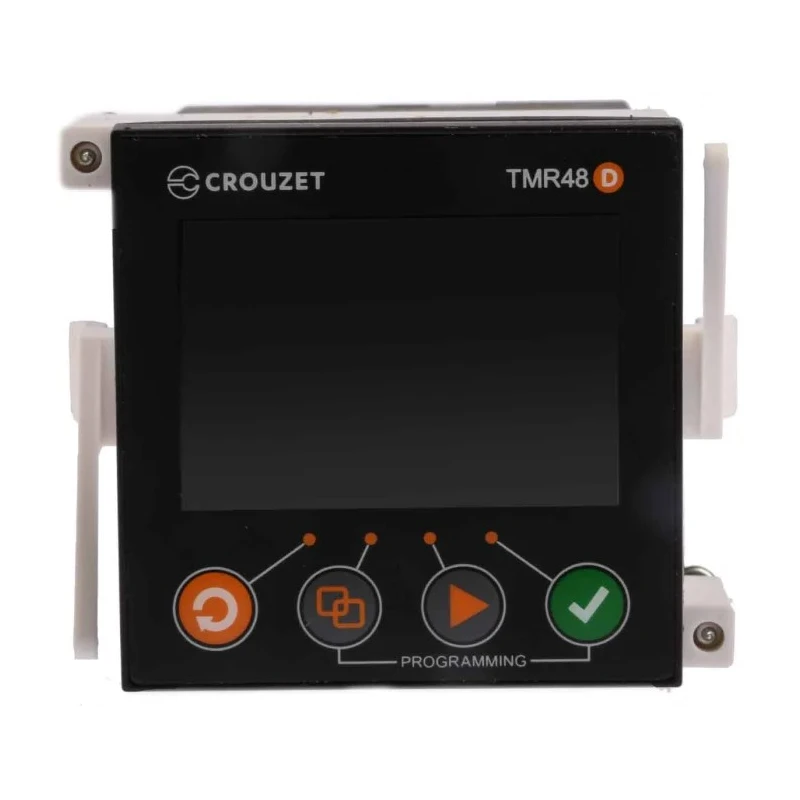

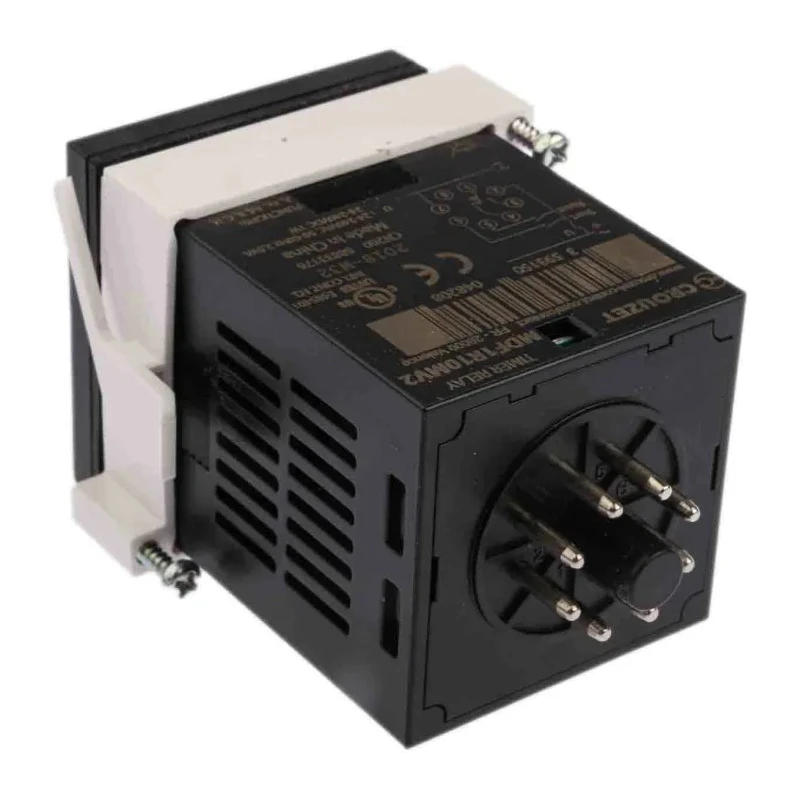

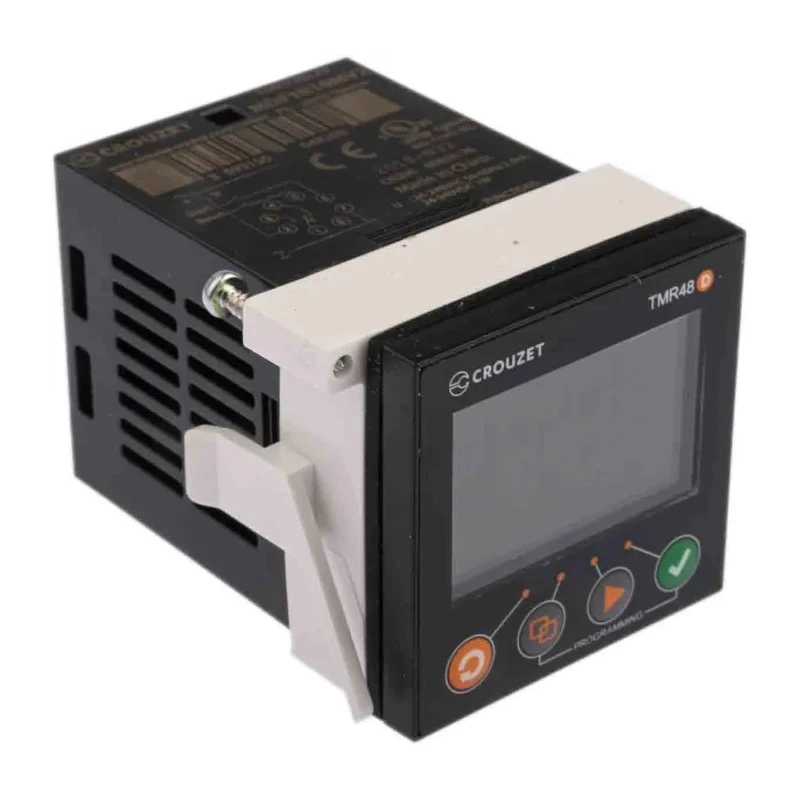

Crouzet Syr-Line Series Panel Timer Relay 1-Contact, SPDT, 240 V DC, 24 V AC, 240 V AC, Multifunction, Time Range MDF1R10MV2
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | Crouzet |
| Height | 68mm |
| Function | AC |
| Length | 48mm |
| Model | MDF1R10MV2 |
| IP Rating | IP66 |
| Mode | Multifunction |
| Width | 48mm |
| Mount Type | Panel |
| Series | Syr-Line |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Terminal type | 8-Pin |
| Number of Contacts | 1 |
| Number of Timer Functions | Multifunction |
| Contact Current | 10A |
| Supply DC Voltage | 240 V dc |
| Timing Adjustment | Polar |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Equipped with a large 13.2 mm LED display for clear timing visualization.
- Features 1 relay output rated at 10A with changeover contact supporting 24V-240VAC/DC.
- Offers both basic and advanced configuration modes for flexible use.
- Designed with a panel mount and an 8-Pin terminal connection for easy integration.
- Compact DIN-sized housing measuring 48mm x 48mm x 68mm with IP66 rating for water and dust resistance.
- Operating temperature range from -10°C to 60°C ensuring reliability in various environments.
- Includes memory function to retain settings during power interruptions.
- Supports multiple timing functions including delay on start, interval, off delay, on delay, recycler, and symmetrical flashing.
Product Description
Crouzet MDF1R10MV2 is a Syr-Line Series Panel Timer Relay designed for precise time control functions in industrial and automation systems. This multifunction AC timer relay operates on 240 V DC and 24 to 240 V AC supply, featuring a single SPDT contact capable of switching 10A current.
It offers a wide timing range from 0.001 seconds up to 9999 hours, covering diverse delay and flashing functions suitable for complex control applications. The device includes a large 13.2 mm LED display for easy reading and configuration, with both basic and advanced setting modes available.
The relay is housed in a compact DIN-sized 48mm x 48mm casing with a length of 68mm, designed for panel mounting with robust 8-Pin terminal connections. Its construction ensures IP66 protection, making it resistant to dust and water ingress, ideal for demanding industrial environments.
This timer relay features memory retention to preserve settings during power loss and a lock function to prevent accidental changes. The SPDT output contact supports versatile switching for AC and DC loads, with a polar timing adjustment mechanism for precision control.
Large 13.2 mm LED screen for clear visibility. One SPDT relay output rated at 10A. Multiple timing modes including delay on start, interval, off delay, on delay, recycler, and symmetrical flashing. Compact panel mount design with IP66 water and dust resistance.
Operating temperature range from -10°C to 60°C. Memory function to retain settings during power interruptions. 8-pin terminal connection for secure installation. Complies with standards including CISPR22, IEC 60664-1, RoHS, WEEE, cULus Listed, EN55022, IEC 61812-1, CE, and UL 508.
This timer relay is widely used in industries such as textiles, chemical processing, mining operations, irrigation systems, food and beverage manufacturing, and general industrial process control where precise timing and reliability are essential.
Explore more Timer Relay options and related control components in the Electronics & Electricals category at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 60°C.
It offers a timing range from 0.001 seconds up to 9999 hours.
It is equipped with a large 13.2 mm LED display for clear visibility.
This model features a single SPDT (Single Pole Double Throw) contact configuration.
It operates on a supply voltage of 240 V DC and 24 to 240 V AC.
The relay output is rated at 10A.
The timer relay has an IP66 rating, making it resistant to dust and water ingress.
It is designed for panel mounting with an 8-pin terminal connection for secure installation.
The minimum operating temperature is -10°C.
It supports multiple timing functions including delay on start, interval, off delay, on delay, recycler, and symmetrical flashing.
The compact DIN-sized housing measures 48mm x 48mm x 68mm.
Yes, it includes a memory function to retain settings during power interruptions.
