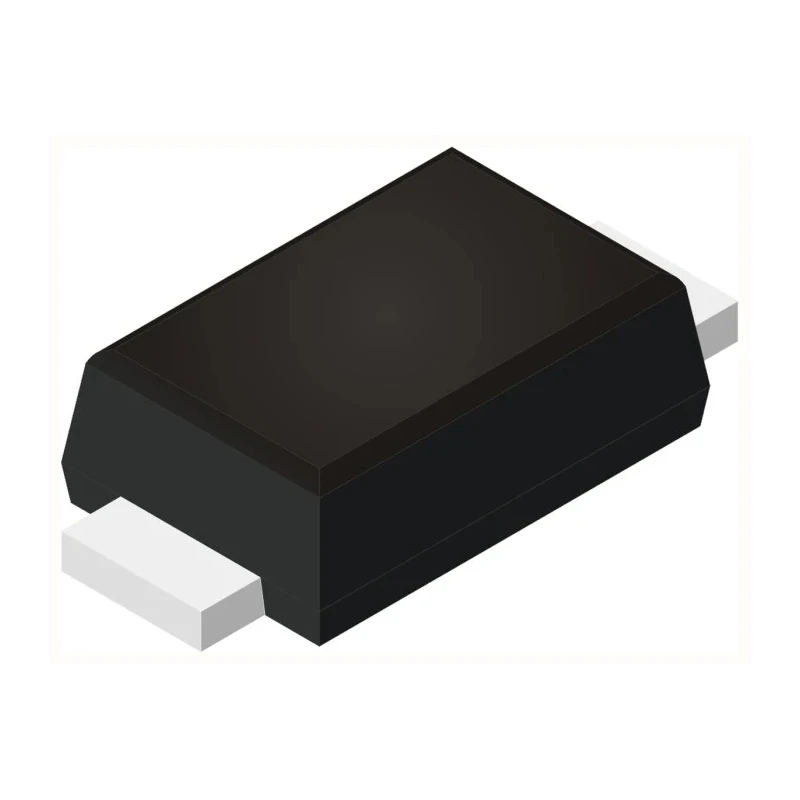

ROHM 40 V 2 A Surface Mount Schottky Barrier Diode SOD-123FL RBR2MM40CTR

The ROHM RBR2MM40CTR is a high-reliability Schottky Barrier Diode designed for surface mount applications, accommodating a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 40 V. Its compact SOD-123FL package offers a small footprint with dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height, making it suitable for high-density electronic circuit boards.

Featuring a low forward voltage drop of 0.52 V, the diode enables energy-efficient switching ideal for power management, voltage clamping, and high-frequency rectification roles. Its wide operating temperature range from -55°C up to 150°C ensures reliable performance in industrial, automotive, and harsh environment electronics.

This single diode with 2 pins supports peak non-repetitive surge currents of up to 30 A, providing robustness against transient conditions.

The device complies with RoHS environmental directives, affirming its suitability for modern electronics systems with sustainability considerations. The small power mold type (PMDU) construction enhances its durability and thermal dissipation.

Compact surface mount design suitable for high-density PCB layouts. Maximum continuous forward current of 2 amperes for reliable power handling. Peak reverse repetitive voltage rated at 40 volts ensuring robust performance.

Low forward voltage drop of 0.52 volts for energy-efficient operation. Operates within a wide temperature range from -55°C to 150°C for diverse environments. Peak non-repetitive forward surge current tolerance of 30 amperes.

Single diode configuration with 2 pins in a small power mold type package. Compliant with RoHS standards to meet environmental regulations. Small dimensions: length 2.7 mm, width 1.7 mm, height 0.9 mm for compact applications.

Designed for industrial, electronics manufacturing, and power supply applications.

This Schottky diode is ideal for use in power supply rectification, voltage regulation, and protection circuits within industrial, laboratory, HVAC, and consumer electronics sectors. Its reliable performance under surge and temperature extremes makes it a durable choice for manufacturing and repair applications.
