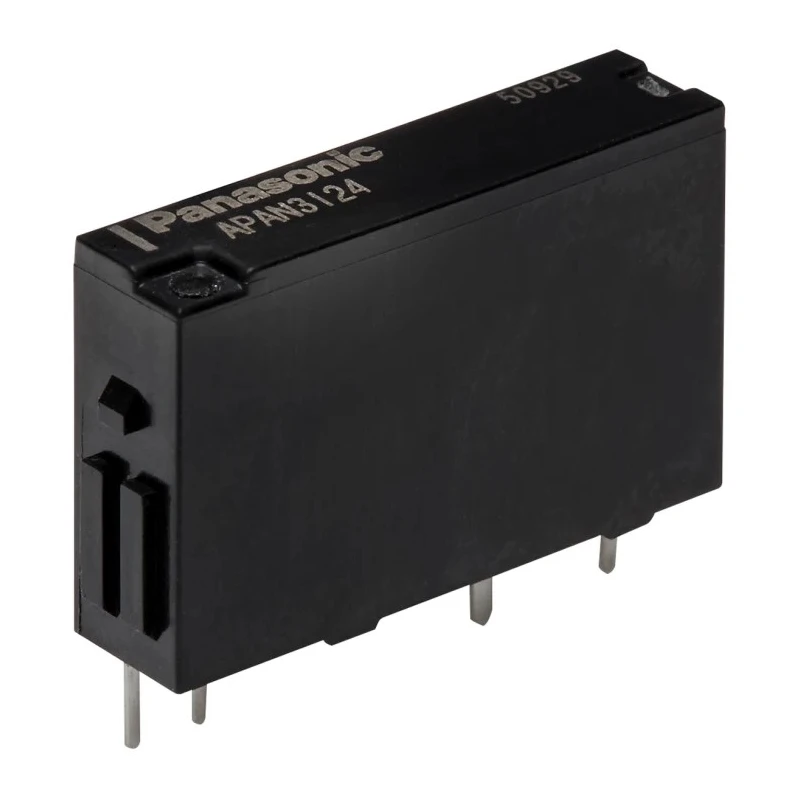

Panasonic PCB Power Relay, 24V DC Coil Voltage, 5A Switching Current, SPST Contact Configuration APAN3124

Panasonic APAN3124 PCB Power Relay is designed for robust performance in industrial, office, and measurement equipment applications. This power relay features a 24V DC coil voltage and handles a switching current of 5A with SPST contact configuration, ensuring effective switching control.

The relay is engineered for high density mounting on printed circuit boards (PCBs), supporting compact and integrated electrical system designs. Its low coil operating power of 110 mW promotes energy efficiency. Compliance with IEC61010 reinforced insulation standards guarantees safety and reliability in demanding environments.

Operating temperatures range from a minimum of -40°C up to a maximum of 90°C, making the relay suitable for diverse environmental conditions. Gold plated contact material ensures reliable conductivity and longevity, with contact resistance maintained at a low 30mΩ.

With a switching power rating of 150W and the capability to switch both AC and DC voltages up to 110V, the APAN3124 provides versatility across various industrial, laboratory, automation, and control system applications.

The relay measures 20mm in length, 12.5mm in height, and 5mm in width, facilitating installation in compact spaces. Coil resistance is 5.2 kΩ, providing stable coil current characteristics. This product is made in China and comes with standards and approvals including cULus and RoHS compliance, underscoring quality and environmental safety considerations.

Applications include industrial equipment, office automation, measuring devices, test equipment, programmable controllers, and temperature controllers where reliable, low power, and precise switching is required.

High density mounting suitable for compact PCB designs. Low operating power with nominal coil power of 110 mW. Long insulation distance compliant with IEC61010 reinforced insulation standards. Wide operating temperature range from -40°C to 90°C.

Gold plated contacts for enhanced conductivity and durability. 150W switching power rating for flexible use. Compact size for space-saving PCB integration. Contact resistance of 30mΩ ensuring efficient electrical transmission.
