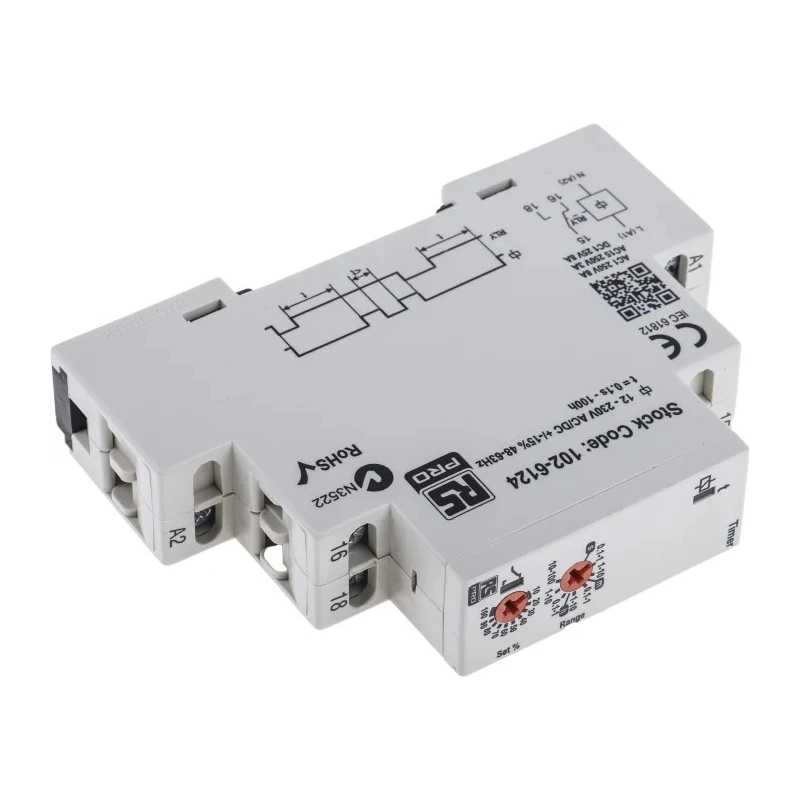

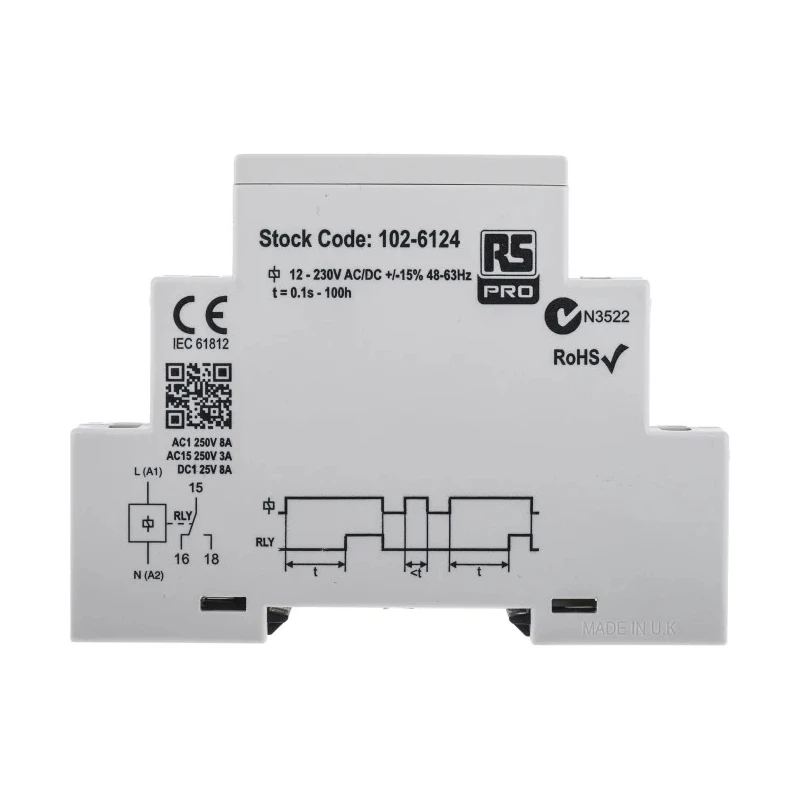

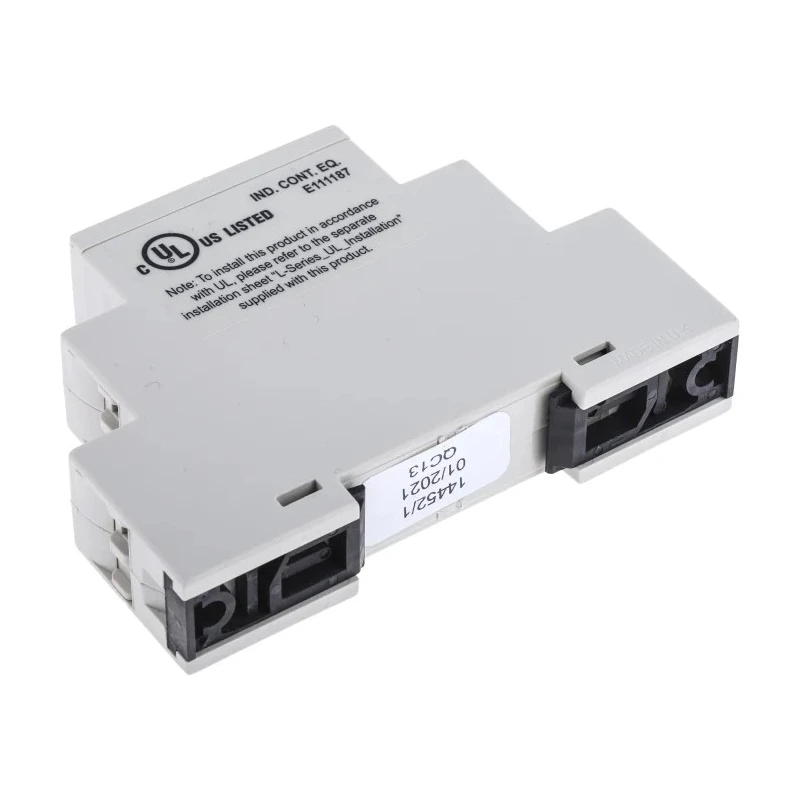

RS PRO DIN Rail Timer Relay 1-Contact, SPDT, 230 V dc 12 V ac, 230 V ac, 0.1 s to 100 h ON Delay 102-6124

RS PRO 102-6124 DIN Rail Timer Relay 1-Contact is a precision single-function ON delay relay designed for industrial and automation applications. It supports a wide supply voltage range with AC inputs from 12 V to 230 V and DC inputs up to 230 V, making it versatile for various electrical environments.

The device provides accurate timing with a range from 0.1 seconds to 100 hours, configurable via two rotary switches and adjustable through a screwdriver slot for fine tuning. This compact relay measures 66.5mm in height, 89mm in length, and 17.5mm in width, optimized for DIN rail mounting within electrical panels.

The relay contacts feature a SPDT (Single Pole Double Throw) configuration rated for 8A continuous switching current, suitable for controlling a variety of industrial loads. Reliable screw terminals facilitate secure wiring connections and ensure consistent performance.

Visual status indicators include a green LED for power supply and timing status and a red LED to show relay activation, assisting technicians during installation and troubleshooting.

Designed to operate in harsh environments with operating temperatures from -20°C to 60°C, this timer relay complies with major standards including CE certification and IEC 61812, assuring safety and quality.

Common applications encompass textiles, chemical processing, mining operations, irrigation systems, raw material handling, food and beverage production, and broader industrial process control setups requiring precise time delay control.

Suitable for AC supply voltage ranging from 12 V to 230 V and DC supply of 230 V. Compact design with dimensions 66.5mm height, 89mm length, and 17.5mm width for easy DIN rail mounting. Single-function timer relay with 1 contact providing an 8A switching current capacity.

Timing adjustment via screwdriver slot allowing fine tuning of selected time range. Green LED indicates supply and timing status; red LED indicates relay status for easy monitoring. Robust screw terminal connections ensure reliable installation and electrical contact.

Operating temperature range from -20°C to 60°C with CE and IEC 61812 certifications. Applications include industrial process control, mining, irrigation, chemical, textiles, food and beverages, and raw material handling.

Designed and manufactured in the United Kingdom ensuring quality and reliability. Explore the complete selection of professionally engineered Timer Relays available from RS PRO to find high-quality solutions for automation and industrial control projects.
