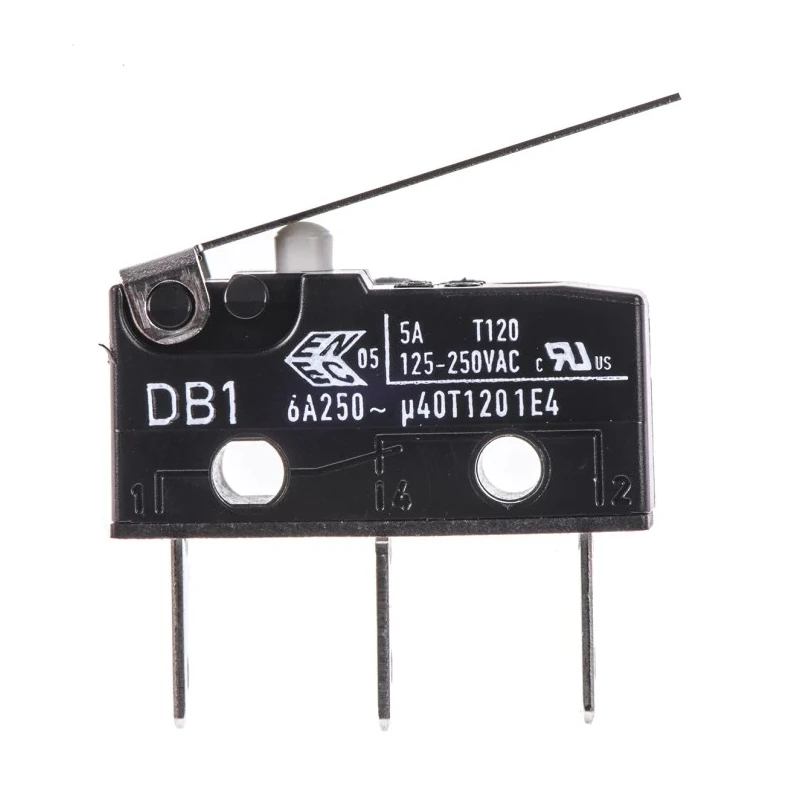

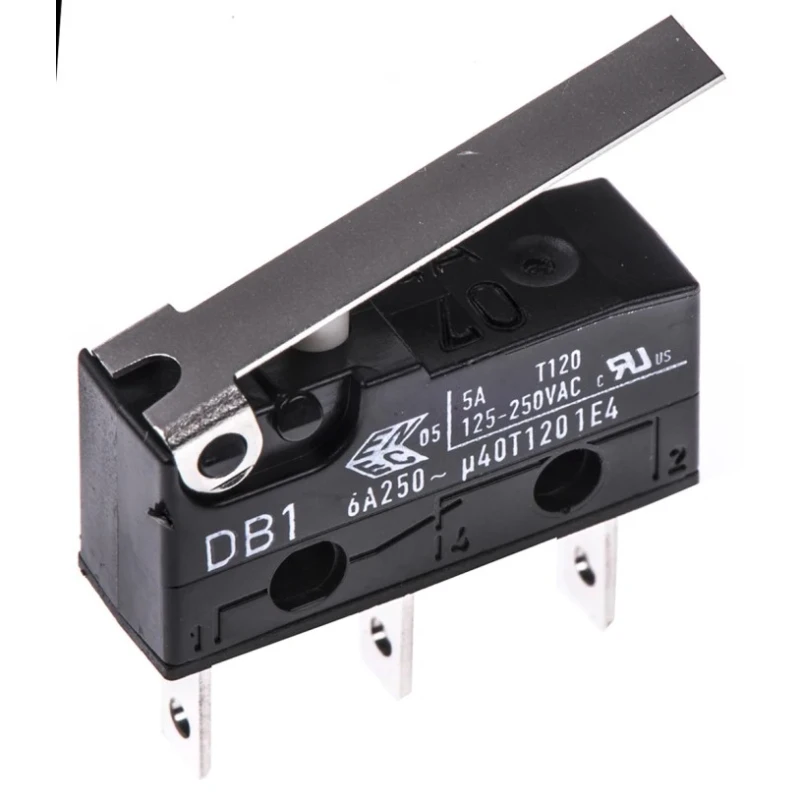

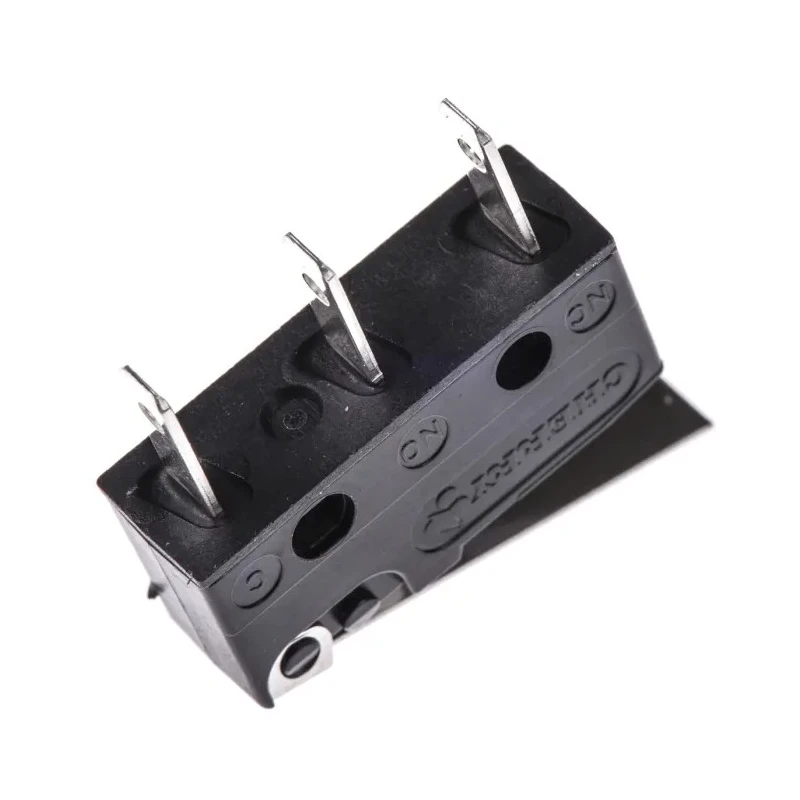

ZF Hinge Lever Micro Switch Tab Terminal 6A 250V ac SPDT IP50 DB1C-B1LC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Model | DB1C-B1LC |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 0.49N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
Key Features
- Features a hinge lever actuator for versatile operation.
- Equipped with tab terminals for secure electrical connections.
- Constructed with durable polyamide and polyethylene terephthalate housing materials.
- Rated IP50 for basic protection against dust ingress.
- Operates reliably between -40°C and 120°C temperature range.
- Requires operating force of just 0.49N for actuation.
- Offers an exceptionally long mechanical life of up to 15 million operations.
- Certified RoHS compliant, ensuring environmental safety.
Product Description
The ZF DB1C-B1LC hinge lever micro switch is a high-precision electrical component designed for reliable switching applications in industrial and automation environments. With its 6 amp contact current capacity at 250 volts AC and single-pole double-throw (SPDT) configuration, this micro switch ensures accurate and consistent control of electrical circuits.
The switch features a hinge lever actuator which provides effective actuation with minimal operating force of 0.49 newtons. Its terminals utilize tab connectors, allowing secure and easy wiring in various installations.
Constructed with robust polyamide and polyethylene terephthalate materials, the housing offers durability and protection against environmental factors. The IP50 ingress protection rating provides basic resistance to dust, making it suitable for moderately demanding industrial settings.
This micro switch operates reliably across a wide temperature range from -40 degrees Celsius up to 120 degrees Celsius, enabling performance in harsh thermal conditions. The DB series is known for long-lasting mechanical life, rated at 15 million operations, lowering maintenance and replacement costs.
Certified for RoHS compliance, the DB1C-B1LC supports environmentally responsible manufacturing standards. Originating from Germany, this micro switch reflects high-quality engineering.
Hinge lever actuator enhances versatility in control applications. Tab terminal design ensures efficient electrical connections. Durable polymer housing materials resist environmental damage. IP50 rating protects against dust ingress.
Wide operational temperature range from -40°C to 120°C. Low operating force requirement of 0.49N facilitates ease of use. Mechanical durability with 15 million operating cycles. Compliant with RoHS environmental standards.
German manufacturing ensures high quality and reliability.
Ideal for electronics, electrical automation systems, and industrial switchgear, the ZF DB1C-B1LC micro switch is suitable for applications requiring precise and durable switching solutions. Explore more Micro Switch options and electrical components on EnvMart for comprehensive industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current capacity is 6A at 250V AC.
It features a hinge lever actuator for effective actuation.
It operates reliably between -40°C and 120°C.
The minimum operating force required is 0.49N.
The housing is constructed from polyamide and polyethylene terephthalate.
It has a mechanical life rating of up to 15 million operations.
It is rated IP50, providing basic protection against dust ingress.
It is equipped with tab terminals for secure electrical connections.
Yes, it is certified RoHS compliant, ensuring environmental safety.
It is manufactured in Germany, reflecting high-quality engineering.
It is suitable for electronics, electrical automation systems, and industrial switchgear.
The contact configuration is single-pole double-throw (SPDT).
