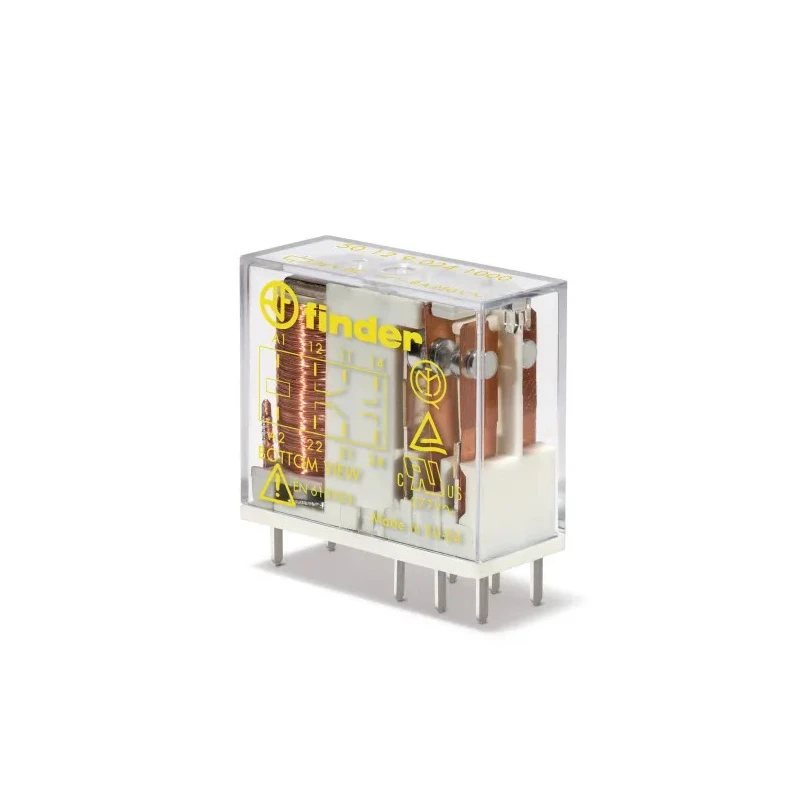

Finder PCB Force Guided Relay 125V Coil Voltage 2-Pole DPDT Model 50.12.9.125.1000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Depth | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 50 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 22.3kΩ |
| Coil Power | 700mW |
| Isolation Coil To Contact | 6kV |
| Flux proof | RT II |
Key Features
- Designed with forcibly guided contacts meeting EN 50205 type B standards for enhanced safety.
- High physical separation of 8mm between adjacent contacts improves insulation and reduces interference.
- Coil resistance is 22.3 kΩ with power consumption of 700 mW providing efficient operation.
- Operating temperature range from -40°C to 70°C suits various industrial environments.
- Silver alloy contact material with coil-to-contact isolation rated at 6kV ensures durability and electrical integrity.
- Compact PCB mounting size with dimensions 29mm length, 25mm height, and 12.4mm depth.
- Flux proof rated at RT II enhances reliability in harsh conditions.
Product Description
Finder 50.12.9.125.1000 PCB Force Guided Relay features a 125V coil voltage and is designed with 2 poles using DPDT contact configuration. It belongs to the 50 series force guided relays providing safety and reliability in automation, industrial, and electrical control applications.
This relay meets EN 50205 type B forcibly guided contacts requirements ensuring safe and fail-safe contact operation. The 8mm high physical clearance between contacts combined with 6kV coil-to-contact isolation (1.2/50μs) protects the relay from electrical interference and increases its service life.
Coil characteristics include a resistance of 22.3kΩ and coil power consumption of 700mW, enabling low energy usage. The relay has solder-type terminals suitable for PCB mounting with compact dimensions of 29mm length, 25mm height, and 12.4mm depth, making it ideal for space-constrained designs.
The contact material is silver alloy that provides high conductivity and durability over numerous switching cycles. It is flux proof rated as RT II, enhancing its performance in harsh and industrial environments with potential exposure to flux residues.
Operating temperature ranges from -40°C minimum to 70°C maximum, allowing functionality across various industrial and automation temperature conditions. Manufactured in Italy, this relay complies with international safety standards and is IMQ, TUV approved and UL recognized component for Canada and the US.
Force guided relays like this model are widely used in safety-critical industrial automation, manufacturing controls, and machinery systems where reliable contact separation is necessary to prevent hazardous failures.
Designed for industrial and automation safety relay applications. High isolation and physical clearance comply with stringent safety standards. Efficient coil consumption and durable silver alloy contacts ensure long operational life.
Compact size suitable for PCB mounting in dense electrical assemblies. Certified reliability with IMQ, TUV, and UL recognition. Explore more in the Electronics & Electricals category under Relays & Contactors to find compatible Force Guided Relays and automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Finder PCB Force Guided Relay has a coil voltage rating of 125V.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The dimensions of this relay are 29mm in length, 25mm in height, and 12.4mm in depth.
It operates within a temperature range of -40°C to 70°C.
The coil resistance is 22.3 kΩ.
This model has solder-type terminals suitable for PCB mounting.
The coil power consumption is 700 mW.
The contact material is silver alloy, which provides high conductivity.
The relay has a coil-to-contact isolation rated at 6kV.
This relay is flux proof rated at RT II, enhancing its reliability in harsh conditions.
This model is manufactured in Italy.
It complies with international safety standards and is IMQ, TUV approved and UL recognized for Canada and the US.
