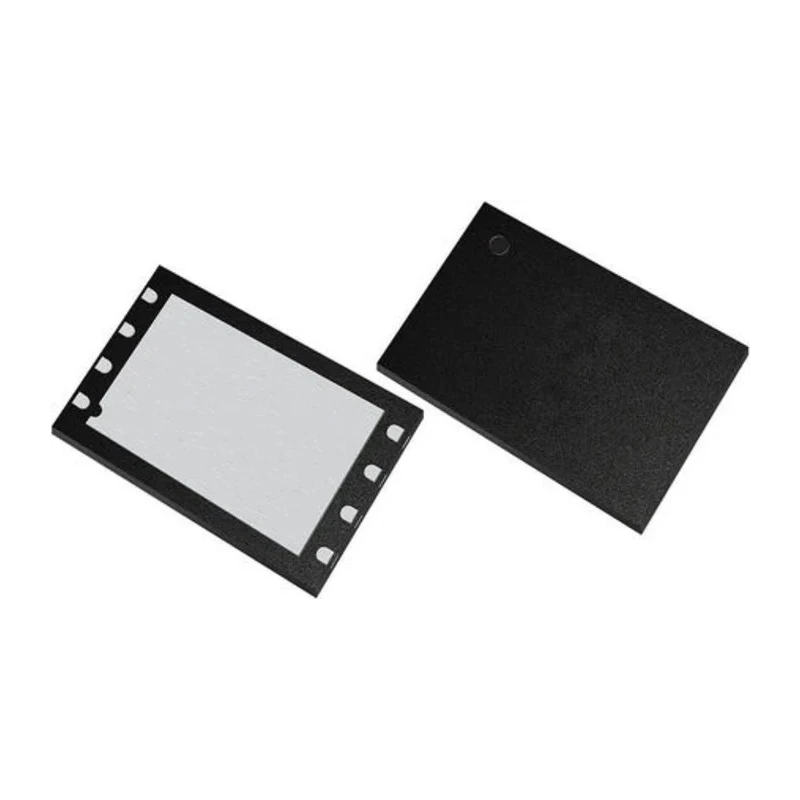

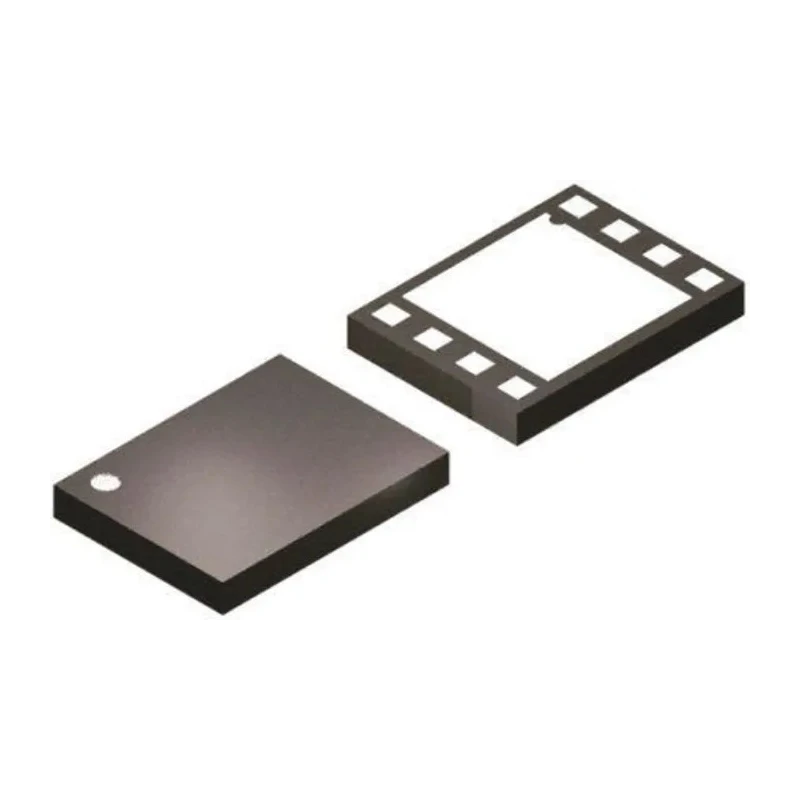

STMicroelectronics 512 kB EEPROM 500 ns 8-Pin UFDFPN Serial-I2C M24512-DFMC6TG

STMicroelectronics model M24512-DFMC6TG is a high-quality 512 kB Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for surface-mount applications. Housed in an 8-pin UFDFPN package, this EEPROM supports Serial I2C interfaces commonly used in embedded and automotive systems for non-volatile data storage.

Operating with a supply voltage range from 1.7 V to 5.5 V and a maximum clock frequency of 1 MHz, it enables reliable and fast communication with microcontrollers and other I2C-compliant devices. The memory organization as 64k x 8 bits provides ample data storage capacity, facilitating applications requiring long-term data retention.

The device complies with the automotive-grade standard AEC-Q100 and RoHS 2011/65/EU environmental regulations, making it suitable for use in industrial, automotive, and automotive-influenced environments. It supports a wide operating temperature range from -40°C to 85°C, ensuring stable functioning in harsh conditions and extended temperature variations.

With low supply current consumption (2.5 mA) and fast maximum random access time of 500 ns, the EEPROM is optimized for power efficiency and performance. Its compact dimensions - length 2.1 mm, width 3 mm, and height 600 μm - permit its use in compact PCB layouts.

This EEPROM is well suited for use in industrial control systems, automotive electronics, consumer electronics, and data logging applications where reliable non-volatile memory is critical. STMicroelectronics maintains high-quality manufacturing standards, with products originating from their Philippines facility, further ensuring quality and consistency.

Provides electrically erasable programmable read-only memory supporting I2C serial interface. Memory organized as 64k x 8 bits with 8 bits per word architecture. Operates at supply voltages from 1.7 V up to 5.5 V ensuring compatibility across varied systems.

Maximum clock frequency of 1 MHz supporting fast data access and transfer. Compliance with automotive standard AEC-Q100 ensuring reliability in automotive environments. RoHS 2011/65/EU certified for environmental compliance.

Operating temperature range from -40°C to 85°C suitable for industrial and automotive use. Compact dimensions of 2.1 mm length, 3 mm width, and thickness of 600 μm allow space-efficient PCB design. Low supply current of 2.5 mA optimizes power consumption in embedded systems.

Data retention durability of 200 years preserving data integrity over long periods.
