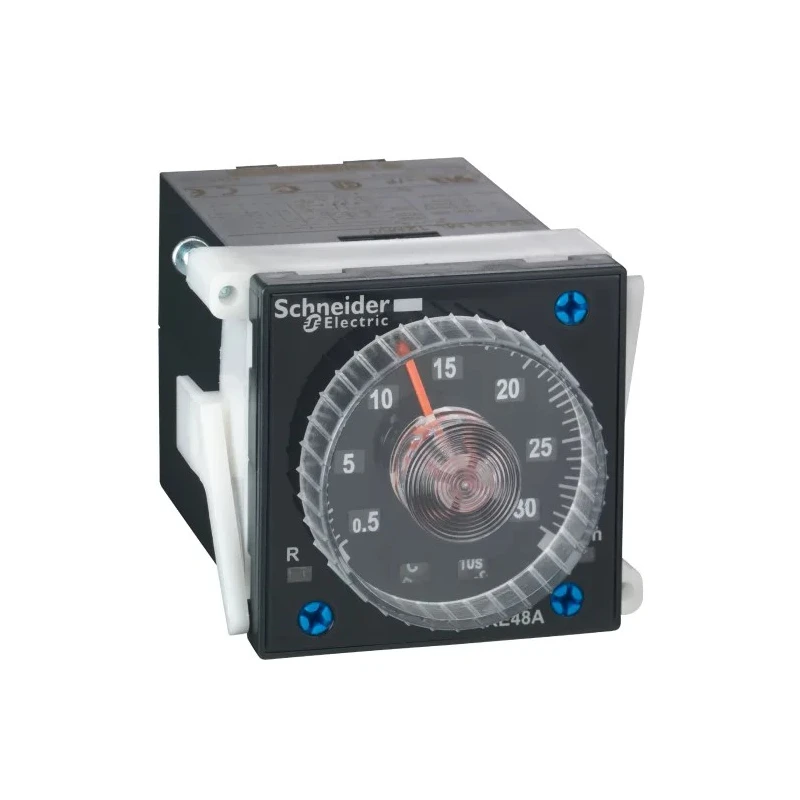

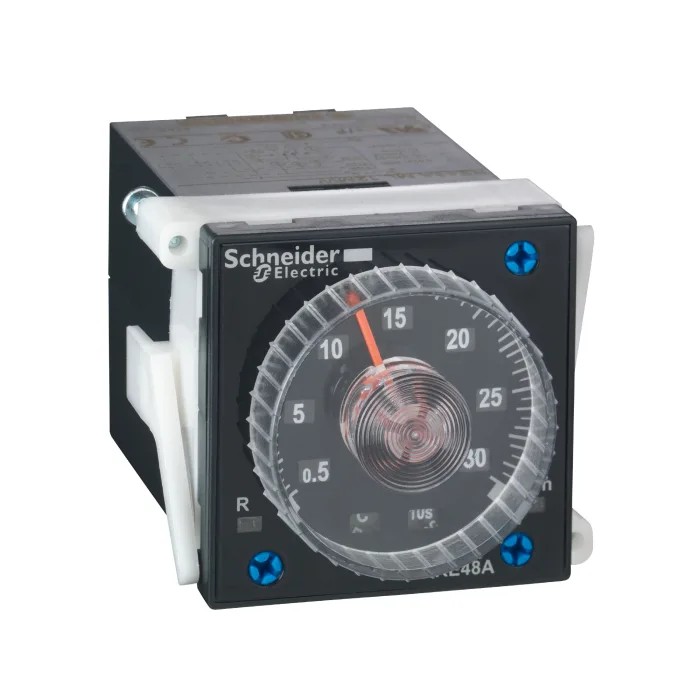

Schneider Electric Harmony Time Series Timer Relay Panel Mount, 2-Contact DPDT, Off-Delay, 24 to 240 V DC/AC RE48AML12MW

Schneider Electric RE48AML12MW Harmony Time Series Timer Relay is a high-precision panel-mount timer relay designed for industrial automation, electrical control panels, and signal conditioning applications. It supports a broad operational voltage range from 24 to 240 V DC/AC, catering to various power supply conditions.

This multifunctional relay exhibits an off-delay timing function controlled via a selector switch on the front panel, granting ease of configuration for complex timing sequences. The relay’s timing adjustment spans a wide range from 0.02 seconds to 300 hours, making it adaptable for short pulse or extended delay operation requirements.

Equipped with two contacts configured in a double-pole double-throw (DPDT) layout, this timer relay ensures reliable switching capabilities current-rated at 5 amperes, suitable for a range of control loads. The relay’s compact dimensions of 48 mm width, 48 mm length, and 96.8 mm height facilitate integration into standard panel cutouts, while the 11-pin plug-in sub-base terminal type simplifies installation and maintenance operations.

The robust, self-extinguishing housing enhances operational safety, complemented by LED status indication for quick visual diagnostics. The device is engineered with IP50 protection on the front face and IP40 on the housing, allowing use in diverse industrial environments where dust and partial contact are considerations.

Certified conformant to worldwide standards including IEC 61812-1, UL, CSA, and various European directives, the RE48AML12MW timer relay meets rigorous safety and performance requirements.

Operates across a broad voltage supply range of 24 to 240 V DC/AC. Multifunction off-delay timing capabilities with precision adjustment. Compact 48 x 48 x 96.8 mm housing suitable for panel mounting. Robust 11-pin plug-in sub-base for secure installation.

DPDT contact configuration rated at 5 A for versatile control applications. LED status indicator for real-time operational feedback. Self-extinguishing housing ensures enhanced safety. IP50/IP40 rated protection for suitable industrial environmental use.

Complies with IEC, UL, CSA, and European safety standards. Manufactured in Indonesia under the Harmony Time Series lineup.

This timer relay is ideal for industrial automation, manufacturing machines, HVAC systems, water treatment plants, and commercial electrical panels requiring precise time control functions. Its flexibility and robust design simplify integration and support long-term reliable operation.
