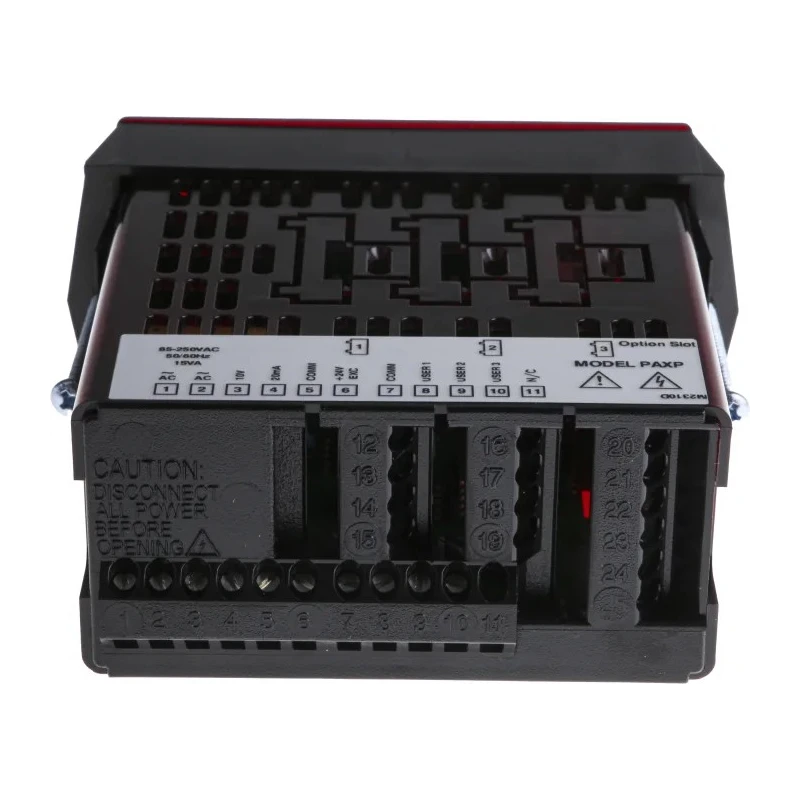

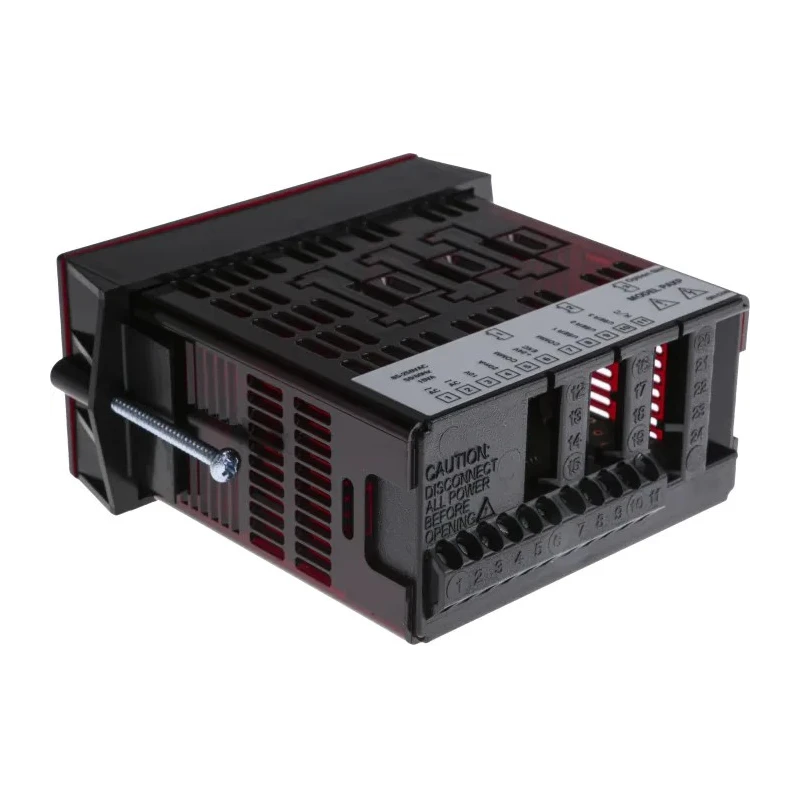

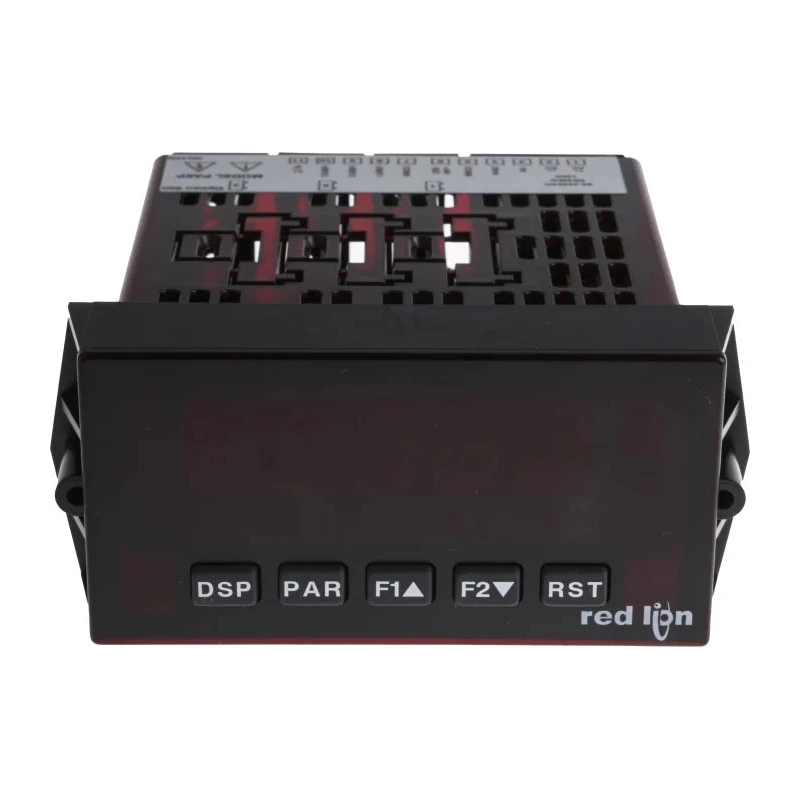

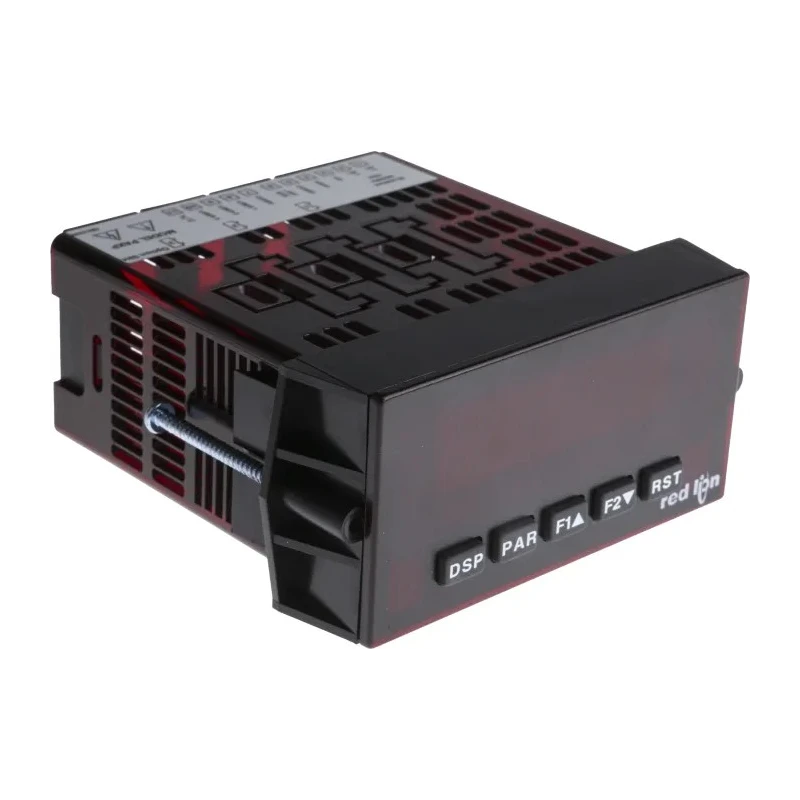

Red Lion Digital Panel Multifunction Meter Voltage Current LED Display 45mm x 92mm PAXP0000

Red Lion PAXP0000 Digital Panel Multifunction Meter is a high-performance electronic indicator designed for industrial and process control use. Equipped with a 0.56 inch red LED sunlight readable display, it provides clear and precise measurements of voltage and current within a compact panel cutout size of 45 mm x 92 mm and a depth of 104.1 mm. The meter supports measurement ranges from -2 mA to 26 mA and -1 VDC to 13 VDC, accommodating a broad range of analog inputs.

Its programmable function keys and 16-point scaling enable it to handle non-linear processes effectively. The meter features a 9-digit totalizer with batching capabilities and four set point alarm outputs via optional plug-in cards, enhancing flexibility and system integration. A programmable capture time function prevents false MAX and MIN reading detections during startup or unusual process events, ensuring measurement reliability.

The PAXP0000 meter operates effectively within temperature ranges of 0°C to 50°C, making it suitable for various industrial environments. The sealed front bezel is NEMA 4X and IP65 rated, ensuring protection against dust and moisture ingress. It meets international standards including CE certification, cUL recognition, and UL approval. Compliance with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards further confirms its suitability for electrostatic discharge safe environments.

This product comes with Crimson® programming software, allowing easy customization and configuration for diverse application requirements. It delivers reliable performance in electrical distribution, automation systems, HVAC controls, manufacturing process monitoring, and other industrial setups.

The meter features a 0.56 inch red LED sunlight readable display. Panel mount cutout dimensions are 45 mm height and 92 mm width. Measurement range covers -2 mA to 26 mA and -1 VDC to 13 VDC. Programmable scaling and function keys allow tailored measurement functions.

Includes a 9-digit totalizer with batching and four alarm outputs (optional cards). Front bezel rated NEMA 4X and IP65 for dust and water resistance. Complies with CE, cUL, UL certifications and ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 standards.

Operating temperature range from 0°C to 50°C. Supplied with Crimson® programming software for flexible configuration.

Red Lion PAXP0000 is an advanced multifunction panel meter ideal for precise voltage and current measurement in industrial automation, process control, and electrical system monitoring. Explore EnvMart's range of industrial meters for comprehensive measurement solutions.
