Schneider Electric Harmony Time Series DIN Rail Timer Relay 1-Contact, 24 V DC/AC, 240 V AC, 0.05 to 300 s RE22R1QCMU

Schneider Electric RE22R1QCMU is a DIN Rail Timer Relay from the Harmony Time Series, designed for precision timing applications requiring on and off-delay functions. This device features a single-contact, 1-Contact configuration suitable for valve control applications, operating efficiently within a timing range of 0.05 to 300 seconds. It supports both 24 V DC/AC and 240 V AC supply voltages, catering to versatile industrial environments.

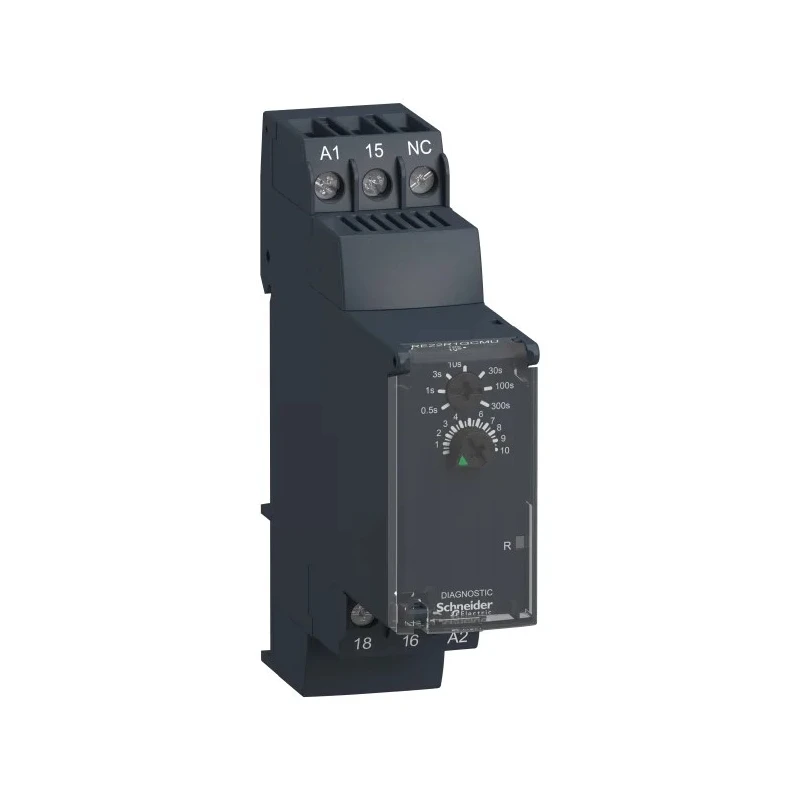

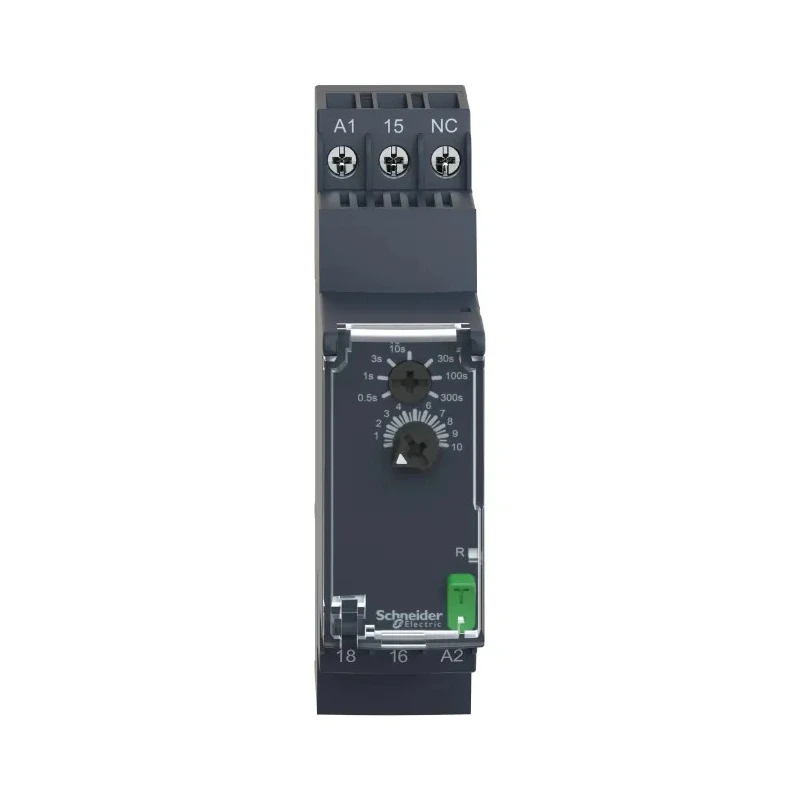

The relay mounts easily on standard DIN rails with secure screw terminal connections, providing reliable electrical contacts configured as SPDT rated at 8 amps. It utilizes a user-friendly timing adjustment knob, allowing precise setting of delay periods. The relay is engineered with robust ingress protection ratings: IP20 for terminal blocks, IP40 for housing, and IP50 for the front face, ensuring durability and protection against dust and mechanical impacts.

Operating temperature ranges from -20°C to 60°C, making it suitable for various industrial, manufacturing, and HVAC applications. The compact design measures 79.5 mm in height, 90 mm in width, and 22.9 mm in length, facilitating convenient installation in constrained control panels. An LED state indicator provides clear operational feedback for ease of monitoring.

The housing is made of self-extinguishing material to enhance safety standards. This relay complies with multiple recognized standards such as UL 508, CSA, IEC 61812-1, CE, and others, assuring quality and international regulatory compliance. Manufactured in Indonesia, this Timer Relay offers reliable performance for demanding automation and electrical control systems.

Designed for valve control with star-delta mode operation. DIN rail mounting with screw terminals for secure installation. Single pole double throw (SPDT) contacts rated for 8A current load. Timing range adjustable from 0.05 to 300 seconds using a knob.

Ingress protection ratings IP20 (terminals), IP40 (housing), and IP50 (front face). Operating temperature range from -20°C to 60°C for versatile environments. Compact dimensions: 79.5 mm height, 90 mm width, 22.9 mm length.

LED indicator for operational status visibility. Self-extinguishing housing material for enhanced safety. Compliant with international safety and performance standards.

Ideal for industrial automation, electrical control panels, HVAC systems, and manufacturing processes requiring precise timing control. Explore more Schneider Electric products and time relay solutions at EnvMart for comprehensive automation needs.
