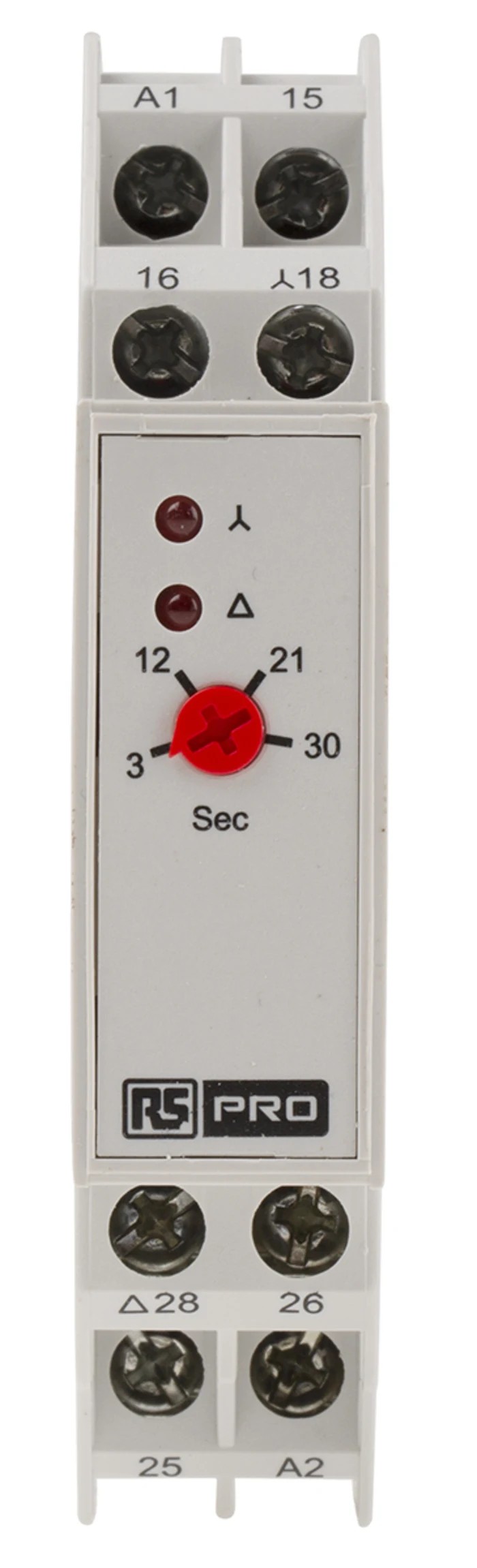

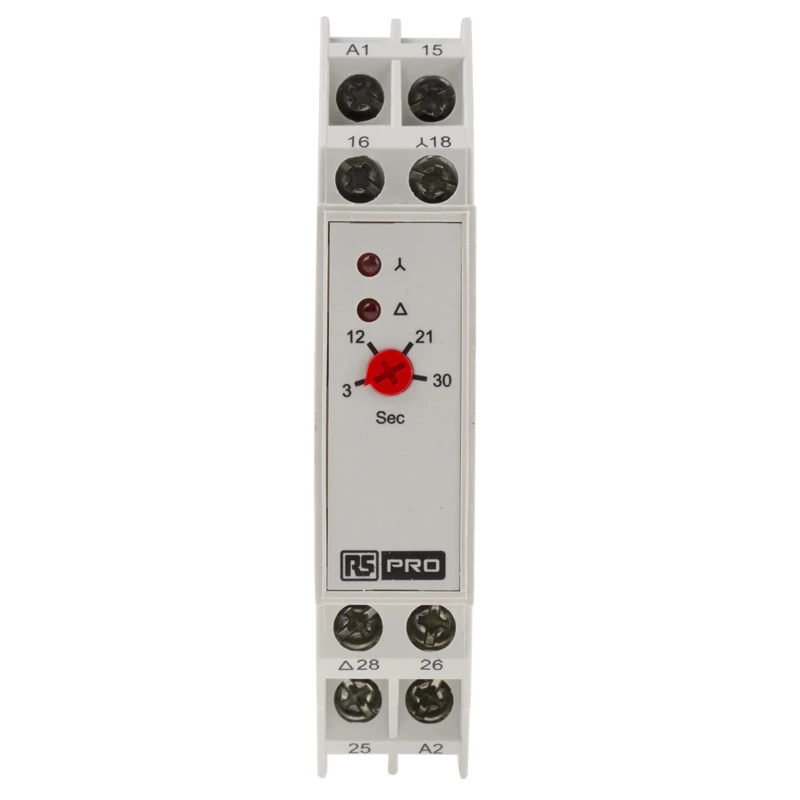

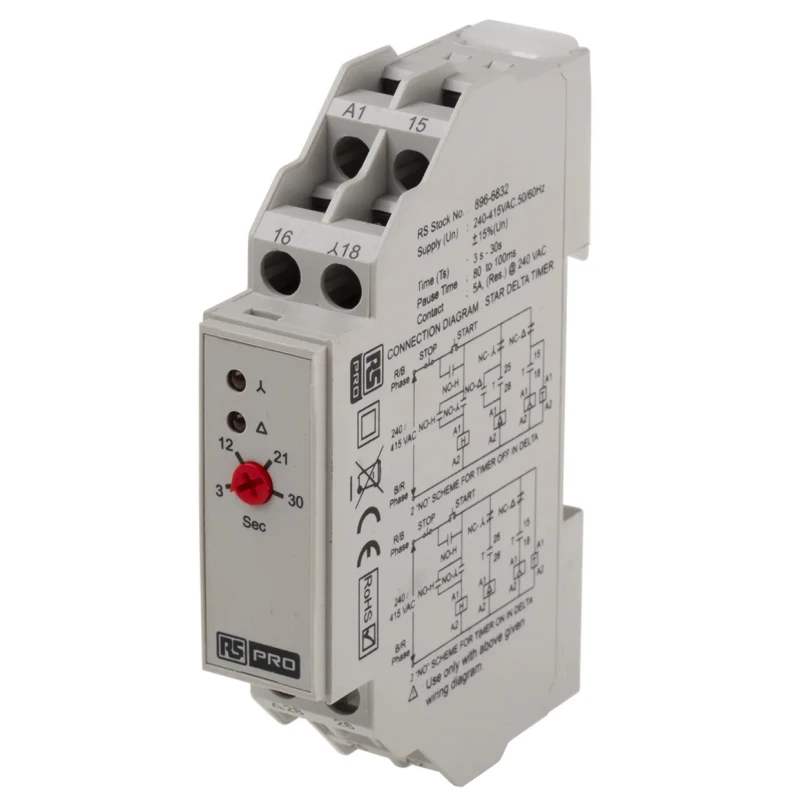

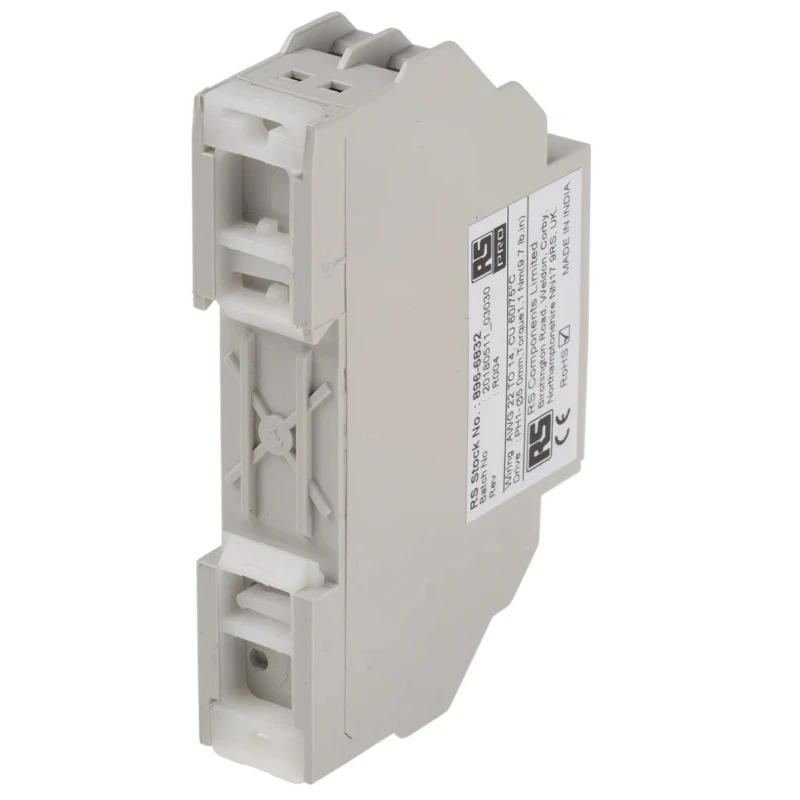

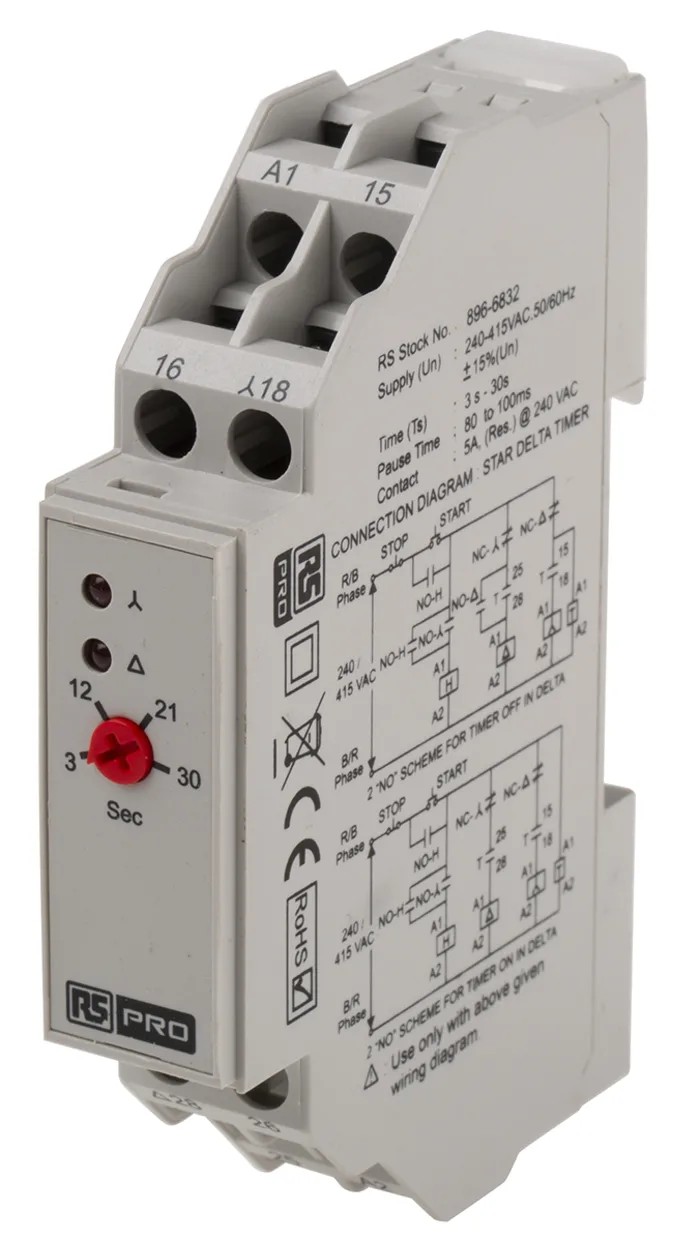

RS PRO DIN Rail Timer Relay 2-Contact, 24 V DC, 240 V AC, 415 V AC, 3 to 120 s Time Range, 1-Function, 2SPNO Switch 896-6832

RS PRO 896-6832 DIN Rail Timer Relay is a high-quality timer relay designed for precise control in industrial and electrical automation systems. It features 2 contacts and supports a time range delay from 3 to 120 seconds, making it ideal for controlling the timing sequence of electrical circuits and equipment.

This relay operates on a low DC supply voltage of 24 V and can handle AC voltages of 240 V to 415 V, enabling compatibility with a wide range of power systems. It is designed for DIN rail mounting, providing efficient use of space within electrical enclosures.

The time delay function helps to stagger activation times of multiple components, minimizing electrical surges and mechanical stresses. The included star-delta timing mode is especially beneficial for starting three-phase induction motors by reducing the starting current to approximately one-third, thus protecting motor components and extending the equipment lifetime.

Screw terminal connectors ensure reliable wiring and easy installation, while a clear LED indicator allows monitoring of the relay’s operational status and power supply at a glance. The relay’s IP40 rated enclosure offers protection against tools and small wire intrusion, enhancing safety and reliability in demanding environments.

2SPNO contact configuration for dependable switching. Time range adjustable between 3 to 120 seconds. Supply voltage compatibility: 24 V DC, 240 V AC, and 415 V AC. Star-delta timing function reduces motor starting current.

DIN rail mounting for space-efficient installation. Screw terminal type for secure wiring. Operating temperature from -10°C to +55°C. Compact size: Height 58.5 mm, Length 17.5 mm, Width 90 mm. LED indicators for power and status.

This timer relay is well suited for industrial, manufacturing, automation, HVAC, and water treatment applications where timed control of electrical equipment is required. It combines compact design, robust functionality, and standard compatibility to offer a reliable solution for electrical system timing control.
