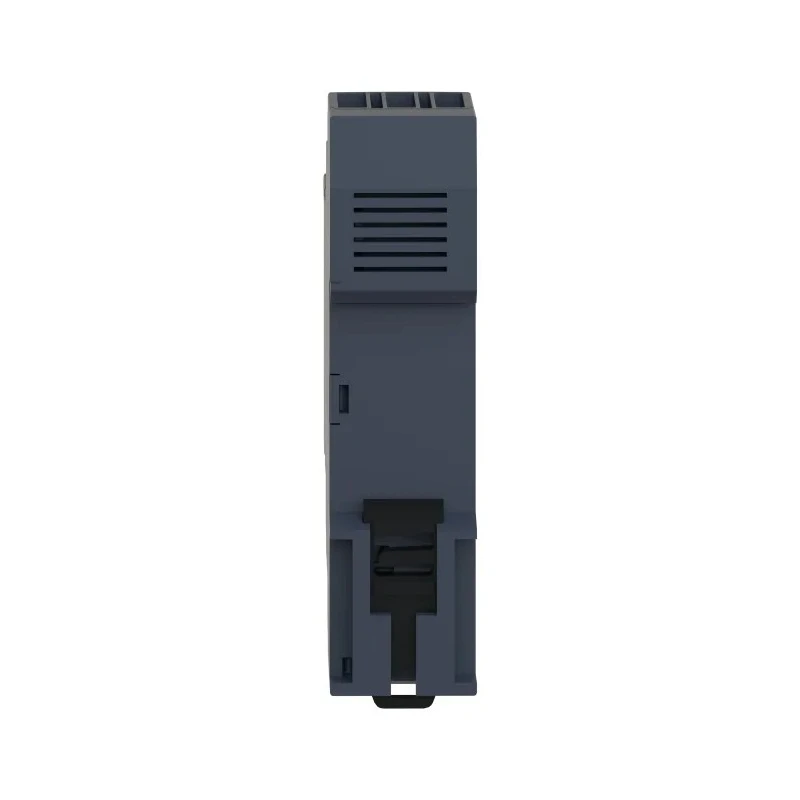

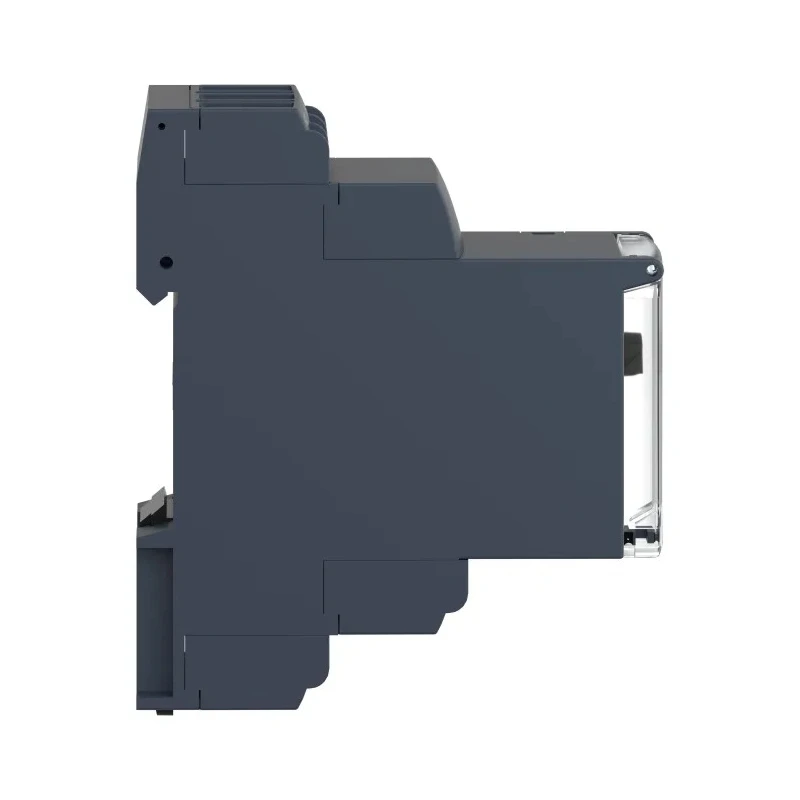

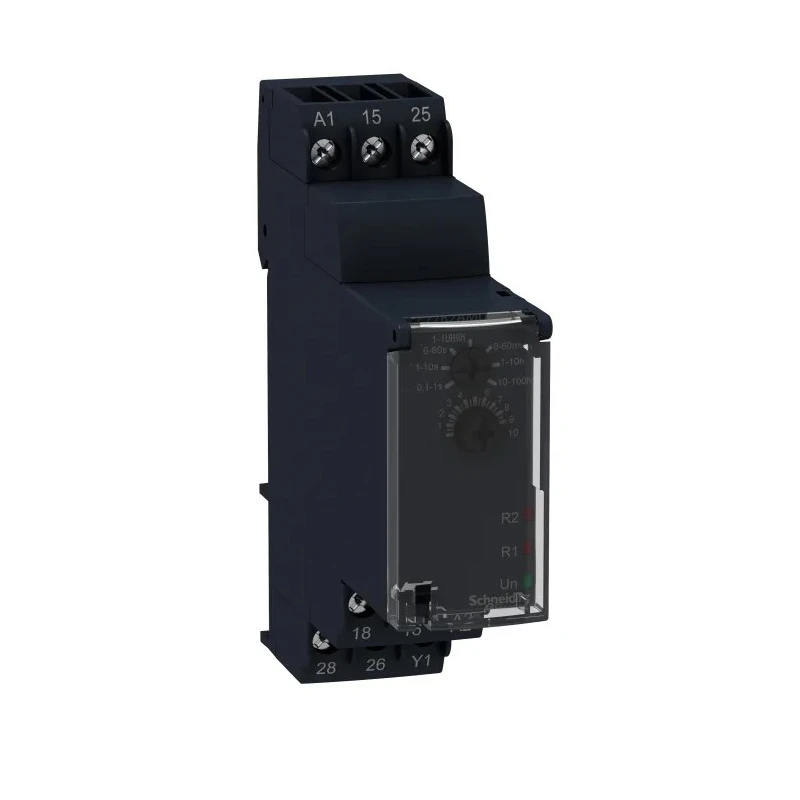

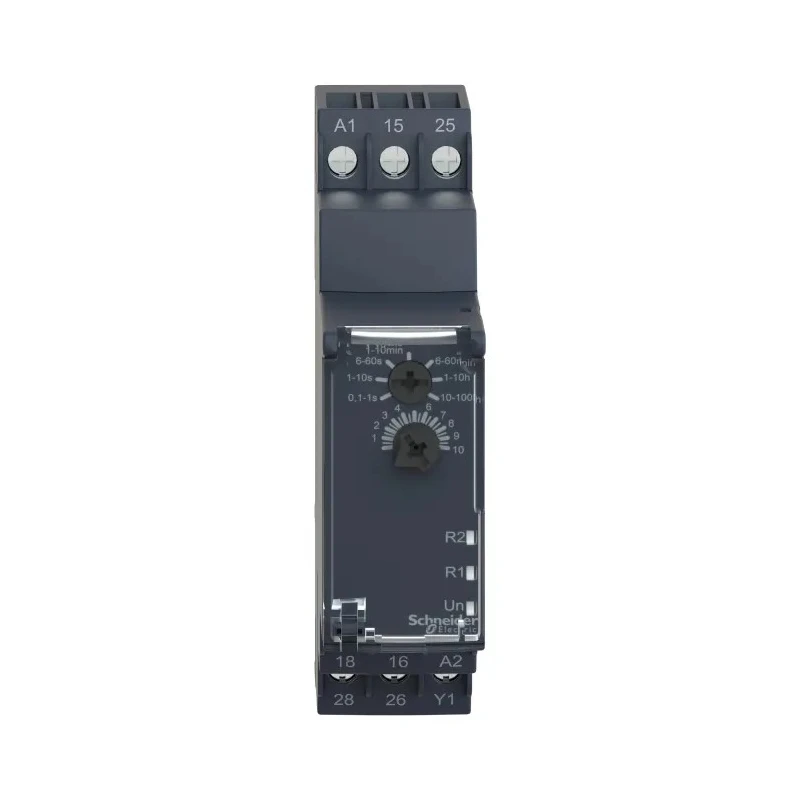

Schneider Electric Harmony Time Series DIN Rail Timer Relay 4-Contact 24 V DC/24V AC/240 V AC 0.1 s to 100 h RE22R2AMU

Schneider Electric RE22R2AMU Harmony Time Series DIN Rail Timer Relay is engineered for precise and reliable time control in industrial automation and process control panels. This multifunctional relay features four contacts arranged as DPDT, allowing flexible circuit switching requirements. Designed for DIN rail mounting, it offers a compact footprint suitable for panel installation.

The relay supports a wide timing range from 0.1 seconds to 100 hours, adjustable via an easy-to-use knob, enabling diverse timing applications. It operates with dual supply voltages of 24 V DC, 24 V AC, and 240 V AC, making it versatile for different control circuits and electrical systems.

Equipped with screw terminals, the device ensures secure and vibration-resistant connections. With a contact current rating of 8 A and capability to switch up to 250 V AC, it is ideal for various motor, lighting, and signal control applications.

Protection ratings include variants with IP20 standard, and IP40 and IP50 for enhanced dust protection, providing installation flexibility. The relay operates efficiently in temperature ranges from -20°C to 60°C, suitable for most industrial environments.

The product is compliant with international standards including GL, cULus, CE, and China RoHS, assuring quality and safety for use in industrial automation, HVAC control, water treatment plant operations, and machine safety interlock applications.

Compact DIN rail mounting fits standard control panels. Four contacts configured as DPDT (Double Pole Double Throw) for flexible wiring. Wide time range adjustable from 0.1 seconds to 100 hours. Dual supply voltage compatibility with 24 V DC, 24 V AC, and 240 V AC input.

Screw terminal connections ensure reliable electrical contact. Rated contact current of 8 A supports moderate load switching. IP ratings of IP20, IP40, and IP50 variants for varying protection needs. Operating temperature range from -20°C to 60°C for diverse environments.

Knob-type timing adjustment for precise and easy time setting. Compliance with multiple standards including GL, cULus, CE, and China RoHS.
