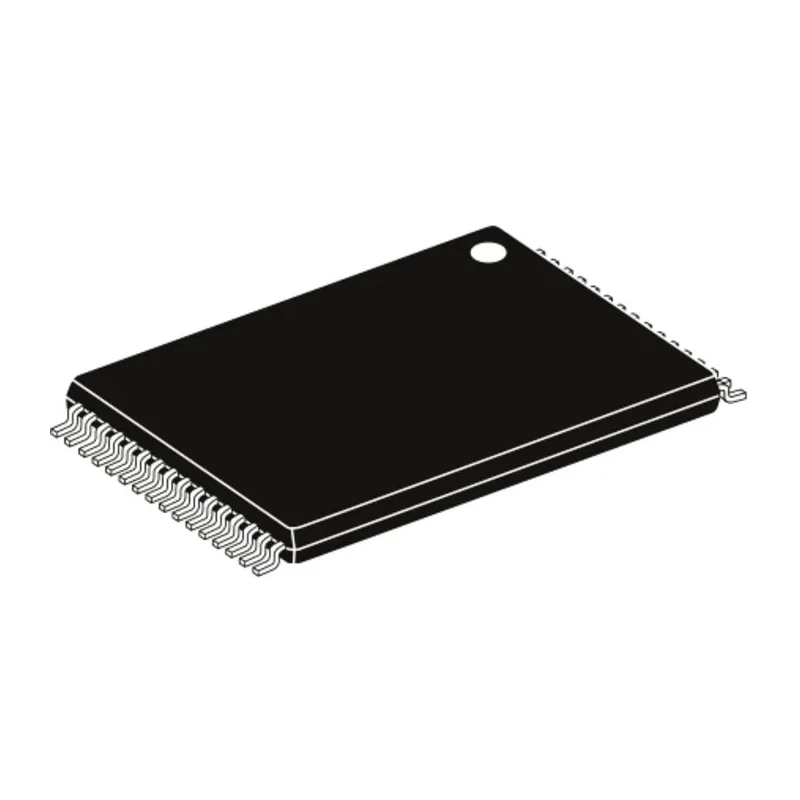

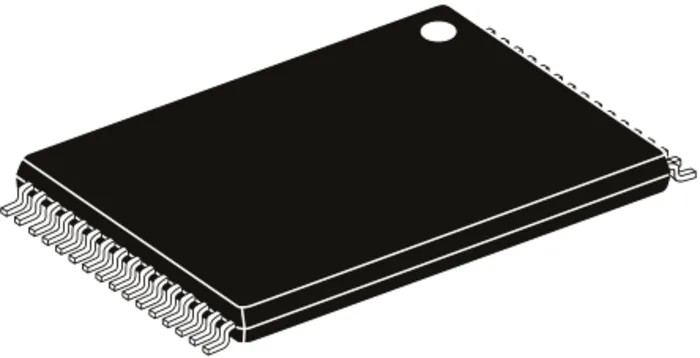

NXP CMOS/TTL Technology RF Receiver SOIC 32-Pin, 13.56MHz, 3-5.5V, ASK Modulation CLRC63201T/0FE,112

NXP CLRC63201T/0FE,112 is a high-integration RF receiver designed with CMOS/TTL technology for 13.56MHz contactless RFID communication. Packaged in a 32-pin SOIC form factor, it operates at a voltage range from 3V to 5.5V, supporting ASK modulation technique which enhances signal reliability in various applications.

This RF Receiver supports over-the-air data rates up to 424kbps and provides a proximity operating distance of up to 100mm, making it suitable for industrial, commercial, and access control RFID systems. It features a 64-byte Tx/Rx FIFO buffer for optimized data transmission and reception.

Host communication options include SPI and parallel interfaces, offering compatibility with multiple host systems and ensuring flexible integration. It is pin compatible with popular devices like MFRC500, MFRC530, MFRC531, and SLRC400, facilitating straightforward replacement or upgrade scenarios.

The device complies with international standards including ISO/IEC 14443 Type A/B, I-CODE1, and ISO/IEC 15693, covering a broad range of RFID protocols and use cases.

The CLRC63201T/0FE,112 operates effectively in wide ambient temperatures from -40°C to +150°C, ensuring dependable operation in harsh environments. The compact SOIC package measures 20.7mm in length, 7.6mm in width, and 2.45mm in height, enabling dense PCB layouts in space-constrained designs.

Applications include industrial automation, access control systems, contactless payment, logistics tracking, and other RFID-based identification and monitoring systems. Supports ASK modulation method for communication. Operates at supply voltage between 3V and 5.5V.

Features 64-byte FIFO buffer for data management. Communication interfaces: SPI and parallel. Suitable for use between -40°C and 150°C operating temperatures. Proximity operating distance of up to 100mm. Compatible with MIFARE Classic 1K, 4K, and Ultralight protocols.

Pin compatible with major MFRC series RFID ICs. Compact dimensions for PCB integration: 20.7 x 7.6 x 2.45mm. Explore the full range of RFID receiver components and modules at EnvMart for your industrial and commercial electronic designs.
