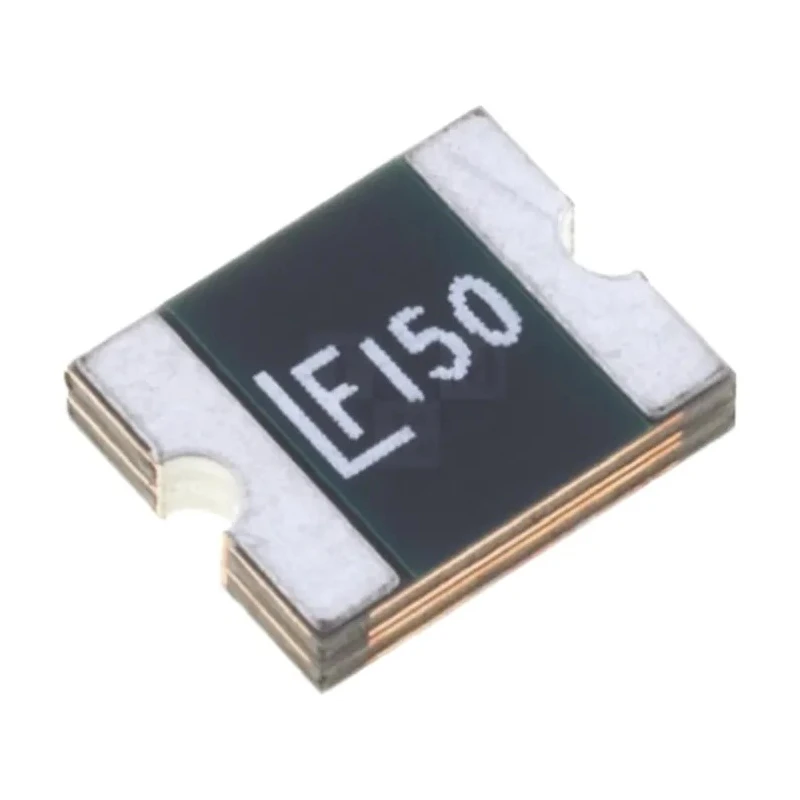

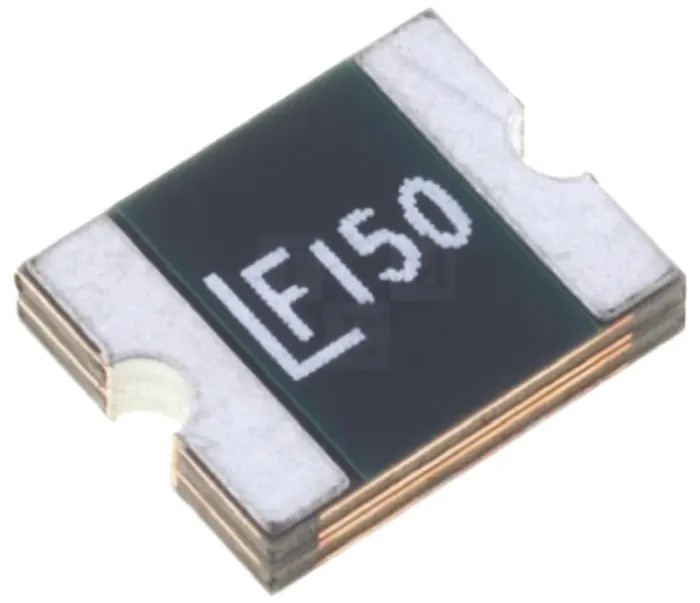

Littelfuse 0.3 A Resettable Fuse 6V DC 60 V DC Surface Mount 2016L030DR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6, 60V dc |
| Brand | Littelfuse |
| Height | 1.25mm |
| Length | 5.44mm |
| Model | 2016L030DR |
| Width | 4.43mm |
| Series | 2016L |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Package Size | 0.20 x 0.16 in |
| Trip Current | 600mA |
| Power Dissipation | 1.4W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | E183209R50119118 |
| Time to Trip | 3s |
| Hold Current | 0.3A |
| Minimum Resistance | 0.5Ω |
| Maximum Resistance | 2.3Ω |
Key Features
- This PTC surface mount fuse offers automatic reset feature for maintenance-free operation.
- It features a trip current of 600mA and a hold current of 0.3A ensuring circuit safety.
- The fuse has a quick time to trip of 3 seconds under fault conditions for effective protection.
- Compact dimensions of 5.44mm length, 4.43mm width, and 1.25mm height enable use in space-constrained applications.
- Constructed with tin plated copper terminals for reliable electrical connections.
- Power dissipation is rated at 1.4W with temperature operation range from -40°C to 85°C.
- Suitable for applications such as security systems, automotive, medical equipment, and telecommunications.
Product Description
Littelfuse 2016L030DR Resettable Fuse is a surface mount polymeric positive temperature coefficient (PTC) device designed for protection of electrical and electronic circuits against overcurrent.
This stable fuse automatically switches from low resistance to high resistance state upon overload or short circuit, and resets once the fault condition clears and power is removed, allowing for maintenance-free, repeated use.
The fuse operates reliably at voltages between 6 V DC and 60 V DC and features a trip current of 600mA and a hold current of 0.3A. It trips within approximately 3 seconds to safeguard sensitive components.
Its compact surface mount form factor with dimensions 5.44mm (length) x 4.43mm (width) x 1.25mm (height) fits applications where space is limited. Tin plated copper terminals provide excellent connectivity.
Its power dissipation capacity of 1.4W enables safe operation under rated loads, while the operating temperature range from -40°C to +85°C supports functionality in diverse environments.
Designed for use in security systems, power supplies, transformers, automotive and medical equipment, instrumentation, control systems, computers, peripherals, audio visual, and telecommunications equipment, this resettable fuse ensures reliable circuit protection with automatic recovery.
This resettable fuse switches quickly to high resistance upon fault and automatically resets when cleared. Surface mount technology minimizes space requirements and eliminates need for fuse holders. Wide operating temperature range ensures durability in harsh conditions.
Reliable tin plated copper terminals provide strong electrical connections. Compact and robust design supports diverse industrial and commercial applications.
Enhance your electrical circuit protection with Littelfuse 2016L030DR resettable fuse, trusted for efficiency and reliability. Browse more products in the Resettable Fuse category at EnvMart for a complete range of circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The trip current of the Littelfuse 2016L030DR resettable fuse is 600mA.
This model has a hold current rating of 0.3A.
It operates reliably at voltages between 6V DC and 60V DC.
The fuse has a quick time to trip of approximately 3 seconds under fault conditions.
The dimensions of the Littelfuse 2016L030DR are 5.44mm in length, 4.43mm in width, and 1.25mm in height.
The maximum operating temperature for this model is 85°C.
The terminals of this fuse are constructed from tin plated copper.
This resettable fuse has a power dissipation rating of 1.4W.
The minimum operating temperature for the Littelfuse 2016L030DR is -40°C.
It is suitable for applications such as security systems, automotive, medical equipment, and telecommunications.
The minimum resistance is 0.5Ω and the maximum resistance is 2.3Ω.
Yes, it has the standard approval E183209R50119118.
