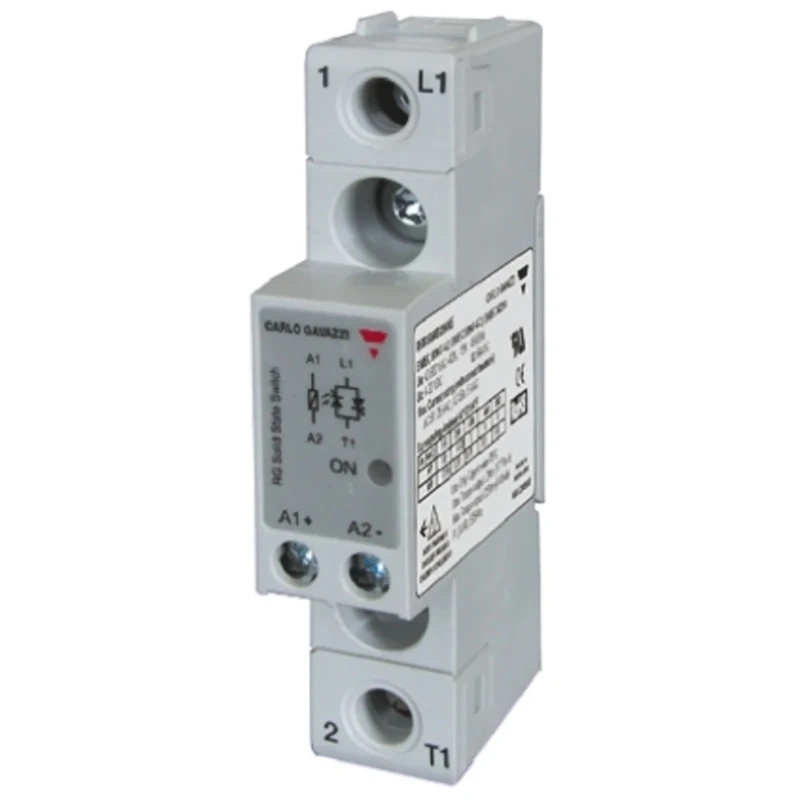

Carlo Gavazzi RGS1 Series Solid State Relay Panel Mount 90 A Load 600 V AC Load 32V DC Control

The Carlo Gavazzi RGS1A60D90KKE is a high-performance solid state relay from the RGS1 series, ideal for industrial applications requiring robust and reliable switching of loads such as heaters and motors. This panel mount relay supports a maximum load current of 90 amperes with a maximum load voltage of 600 V AC. It is controlled with DC voltage from 4 V up to 32 V, allowing compatibility with a broad spectrum of control systems.

Constructed with a compact footprint measuring 17.8 mm in length, 103 mm in width, and 90 mm in height, this relay’s screw terminal connections include captivated washers to ensure secure and safe wiring configurations. The integrated voltage transient protection via varistor safeguards the system against voltage spikes, while the zero crossing switching function helps reduce electrical noise during switching events.

This model complies with RoHS standards and offers a robust short circuit rating of 100 kA, making it suitable for demanding industrial environments. It has an IP20 rating which provides protection against solid objects larger than 12 mm but should be installed in appropriate enclosures for hazardous environments. Operating temperatures range from -40°C to 80°C, supporting use in diverse climatic conditions.

Additional features include a low off-state leakage current of just 3 mA and a PNP output type, providing efficient switching performance. The relay’s single-pole, single-throw (SPST) contact configuration simplifies integration into existing control panels and machinery setups.

This solid state relay is widely applied in industrial automation, HVAC control, manufacturing systems, and process control panels, where frequent load switching is necessary for operational efficiency and longevity of electrical components.

Designed for frequent switching of heater and motor loads for industrial use. Compact panel mount form factor with width of 17.8 mm. Equipped with screw terminals with captivated washers for safe looping connections. Features integrated voltage transient protection through varistor.

Zero crossing switching function to minimize electrical noise and disturbances. High short circuit withstand rating of 100 kA enhances reliability. Offers IP20 ingress protection against solid foreign objects. Wide operating temperature range from -40°C to 80°C for versatile environments.

Low off-state leakage current of 3 mA. Output type is PNP, suitable for standard control applications. Explore the diverse Carlo Gavazzi range in EnvMart’s Solid State Relay category for high-quality industrial automation and control solutions.
