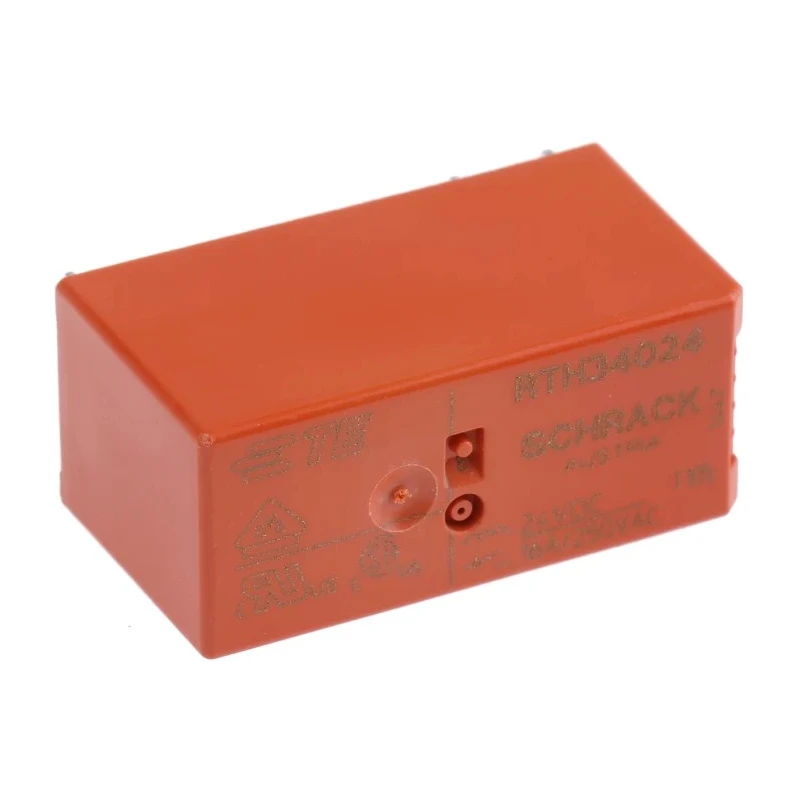

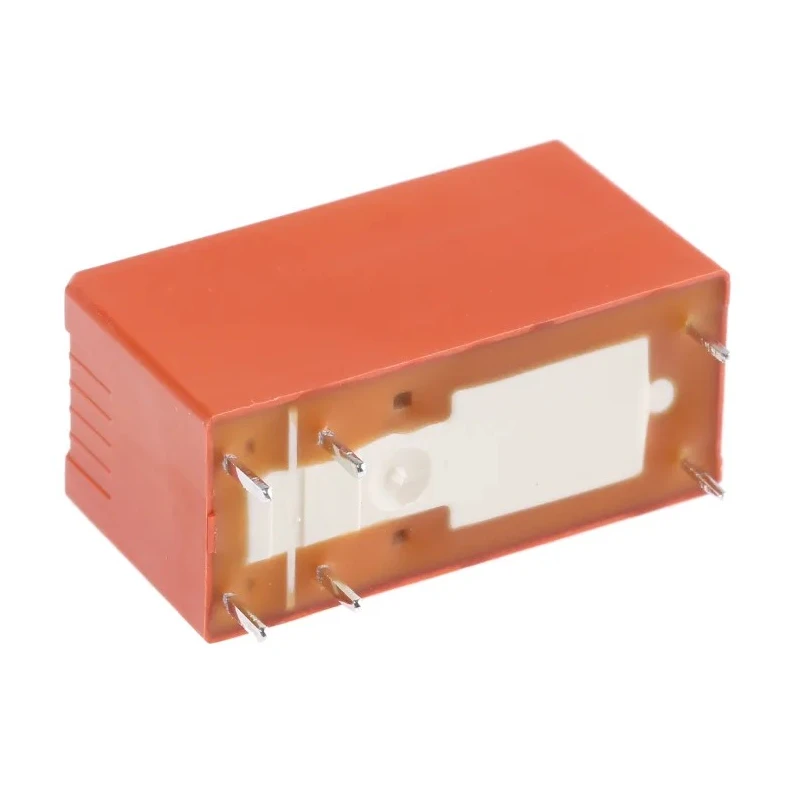

TE Connectivity RTH Series High Temperature PCB Power Relay 24V DC Coil 16A Switching Current SPST 1415039-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RTH |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA, UR |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- High temperature operation up to 105°C ambient conditions.
- Flux-proof orange enclosure with 5mm pinning for stable PCB mounting.
- Low coil power consumption at 400mW sensitive coil.
- Reinforced insulation and 10mm creepage and clearance for safety.
- Silver alloy contact material improves conductivity and durability.
- Suitable for applications like oven and cooking plate control.
- Compliance with UL, CSA, and UR standards.
- Solder terminal type and through-hole mount design.
Product Description
TE Connectivity 1415039-1 is a high temperature RTH Series PCB Power Relay designed for industrial and commercial electronics requiring reliable switching at elevated temperatures.
This power relay features a 24V DC coil voltage and a single-pole single-throw (SPST) contact configuration with a switching current rating of 16A, supporting switching AC voltage up to 400V AC.
Its reinforced insulation and flux-proof orange enclosure provide 105°C maximum operating temperature capability, making it ideal for demanding environments including oven and cooking plate controls in automated systems.
The relay mounts securely on soldered PCB connections using 5mm pinning. It consumes minimal coil power of 400mW with a coil resistance of 1.4kΩ, ensuring energy efficiency. Constructed with silver alloy contacts, it ensures longevity and low contact resistance for stable electrical performance.
Dimensions are compact at 29mm length, 15.7mm height, and 12.7mm width, making integration into dense PCB assemblies straightforward. Certified with UL, CSA, and UR approvals, this relay adheres to stringent quality and safety standards.
High temperature operation up to 105°C ambient conditions. Flux-proof orange enclosure with 5mm pinning for stable PCB mounting. Low coil power consumption at 400mW sensitive coil. Reinforced insulation and 10mm creepage and clearance for safety.
Silver alloy contact material improves conductivity and durability. Suitable for applications like oven and cooking plate control. Compliance with UL, CSA, and UR standards. Compact dimensions: 29mm length, 15.7mm height, and 12.7mm width.
Solder terminal type and through-hole mount design.
This PCB power relay is widely used in industrial automation, HVAC controls, manufacturing equipment, and other electrical systems requiring precise and reliable switching at high temperatures.
Explore more Power Relays and TE Connectivity products for robust electrical solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this relay is 105°C, making it suitable for high temperature applications.
This model has a coil voltage of 24V DC, which is essential for its operation in various applications.
The switching current rating is 16A, allowing it to handle significant electrical loads.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width, making it compact for PCB integration.
It features a single-pole single-throw (SPST) contact configuration, which is common for basic switching applications.
The coil power consumption is low at 400mW, contributing to its energy efficiency during operation.
The contacts are made from silver alloy, which enhances conductivity and durability.
The minimum operating temperature is -40°C, making it suitable for a wide range of environmental conditions.
It complies with UL, CSA, and UR standards, ensuring it meets stringent quality and safety requirements.
It utilizes a PCB mount type with solder terminal connections, allowing for secure installation on printed circuit boards.
This relay is suitable for applications such as oven and cooking plate control, as well as in industrial automation and HVAC systems.
The relay has a switching AC voltage rating of up to 400V AC, enabling it to control high voltage circuits.
