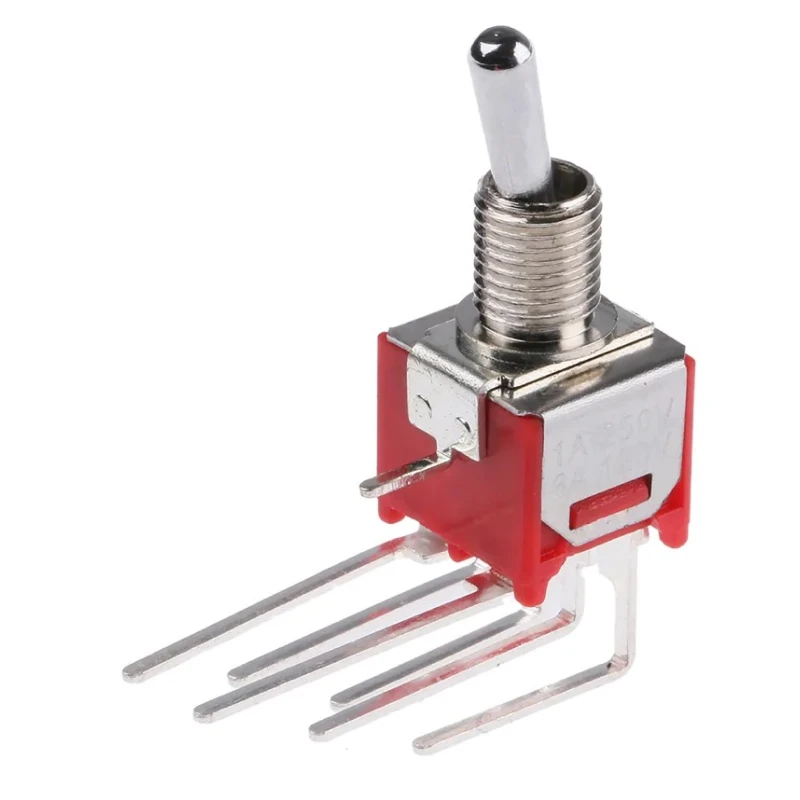

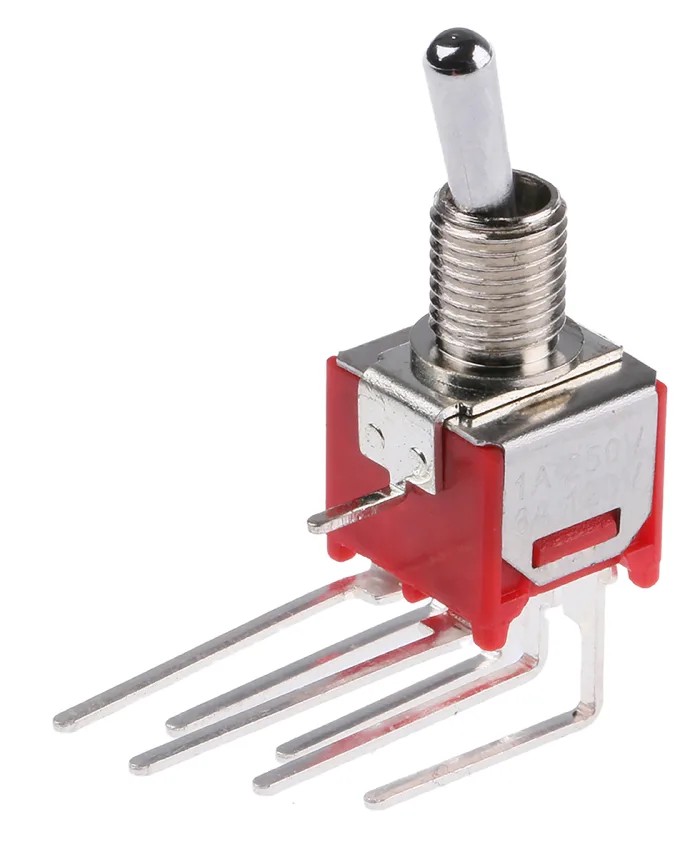

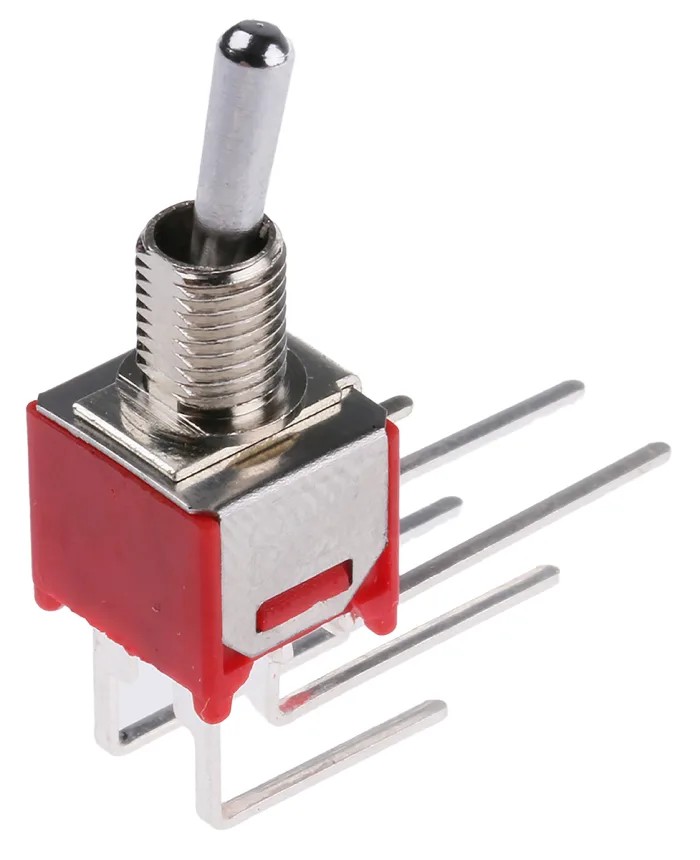

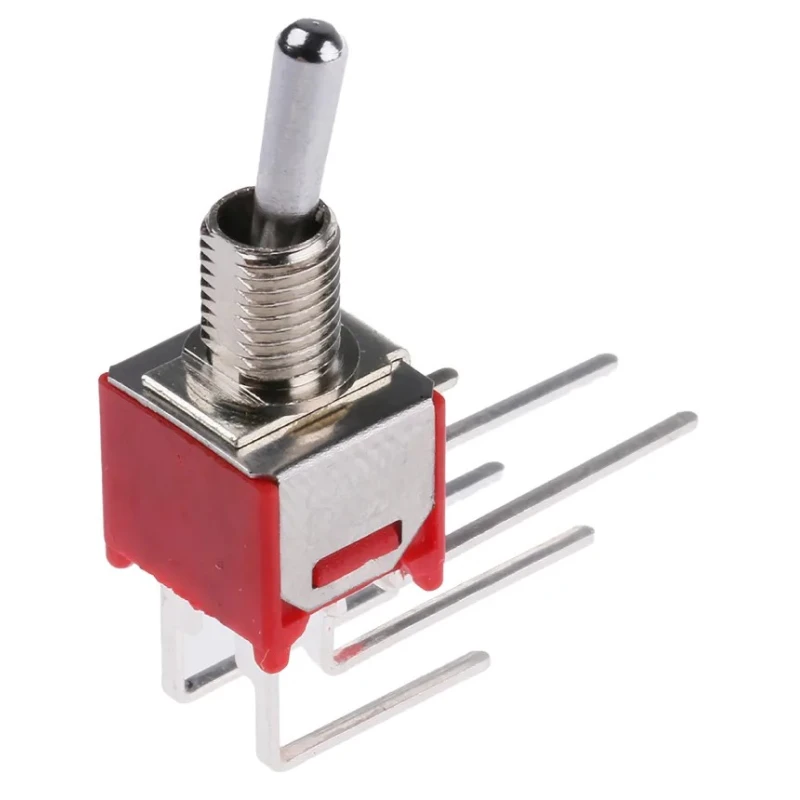

RS PRO Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 15 V dc 240 V ac 7347198P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 7347198P |
| IP Rating | IP66, IP56 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 4.95 mm |
| Terminal type | Through Hole |
| Standards/Approvals | UL, CSA, CE, RoHS |
| Switch Operation | On-On |
| Actuator Length | 7.37mm |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 240V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- This toggle switch offers a contact configuration of DPDT for dual pole dual throw switching.
- Rated for a contact current of 3A, ensuring reliable electrical performance.
- Features a chrome plated brass actuator with a length of 7.37 mm.
- Designed for PCB mounting with through hole terminals providing robust mechanical and electrical connections.
- Operates over a temperature range from -30°C to 85°C, suitable for various industrial environments.
- IP66 and IP56 rated for high ingress protection, making it dust tight and water resistant.
- Switch operation type is On-On, with a mechanical life expectancy of 30,000 cycles ensuring durability.
- Compact panel cutout size of 4.95 mm allows easy integration into control panels or devices.
Product Description
RS PRO 7347198P Toggle Switch is a PCB mount On-On DPDT switch designed for electrical and industrial control applications operating at 15 V dc and 240 V ac. It is engineered to provide a reliable switching solution with robust construction and precise operation.
The switch features a dual pole dual throw (DPDT) contact configuration allowing two separate circuits to be controlled simultaneously. It carries a switch contact current rating of 3A making it suitable for low power control circuits.
Equipped with a chrome plated brass actuator of 7.37 mm length, the toggle mechanism is resilient and user-friendly. The PCB mounting with through hole terminals ensures firm mechanical fixing and solid electric connections, suited for automated assembly processes.
The switch is temperature rated from -30°C to 85°C allowing stable operation under a wide range of industrial environments. It is IP66 and IP56 rated, protecting against dust ingress and powerful water jets, ideal for harsh or outdoor conditions.
With a mechanical life of 30,000 cycles, the RS PRO toggle switch ensures long-term reliability. It requires a minimal panel cutout size of 4.95 mm, suitable for compact installations.
This sub-miniature toggle switch is part of the RS Series known for low contact resistance and high insulation resistance of minimum 1000 MΩ at 500V. It complies with UL, CSA, CE, and RoHS standards, ensuring international safety and quality compliance.
Typical industrial applications include automation control panels, electronic devices, instrumentation, and any circuit needing reliable on-off control with a DPDT configuration. Its robust design makes it ideal for manufacturing, electrical, automation, laboratory, and HVAC industrial uses.

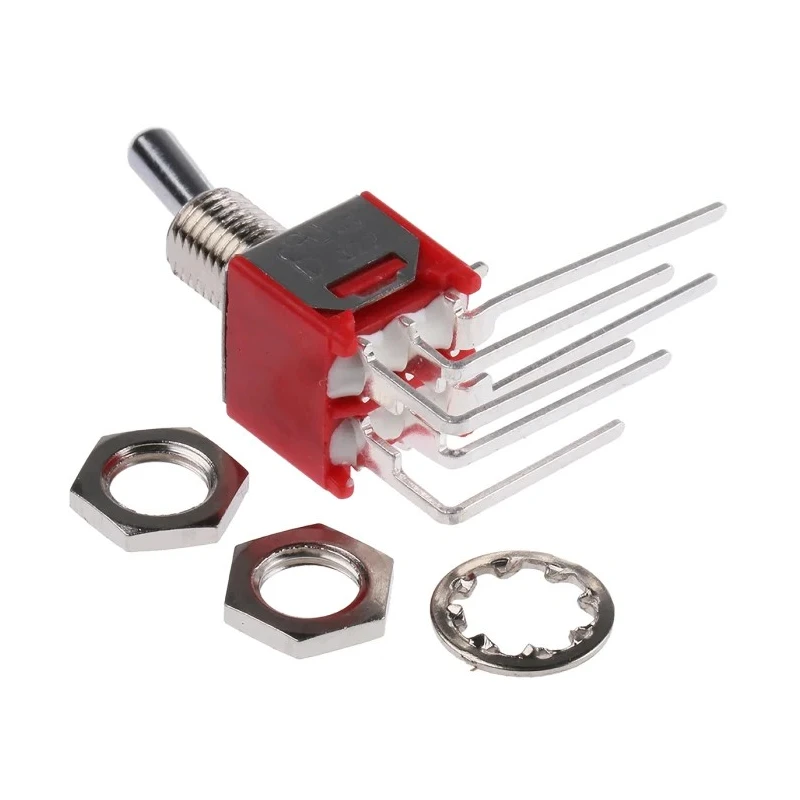

Items are supplied in a bag ready for mounting, facilitating efficient assembly and integration into machinery. Explore more RS PRO Toggle Switches and other switching solutions on EnvMart for your industrial and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a dual pole dual throw (DPDT) contact configuration, allowing control of two separate circuits simultaneously.
The switch is rated for a contact DC voltage of 15 V and a contact AC voltage of 240 V.
The maximum operating temperature is 85°C, making it suitable for various industrial environments.
It has a mechanical life expectancy of 30,000 cycles, ensuring long-term reliability in operation.
The minimum panel cutout size required is 4.95 mm, allowing for easy integration into control panels or devices.
It features through hole terminals for PCB mounting, providing robust mechanical and electrical connections.
The actuator is made of chrome plated brass and has a length of 7.37 mm.
It has an IP66 and IP56 rating, making it dust tight and water resistant, suitable for harsh conditions.
This model complies with UL, CSA, CE, and RoHS standards, ensuring international safety and quality compliance.
The switch has a contact current rating of 3A, making it suitable for low power control circuits.
Typical applications include automation control panels, electronic devices, instrumentation, and any circuit needing reliable on-off control with a DPDT configuration.
The switch operates over a temperature range from -30°C to 85°C, suitable for various industrial environments.
