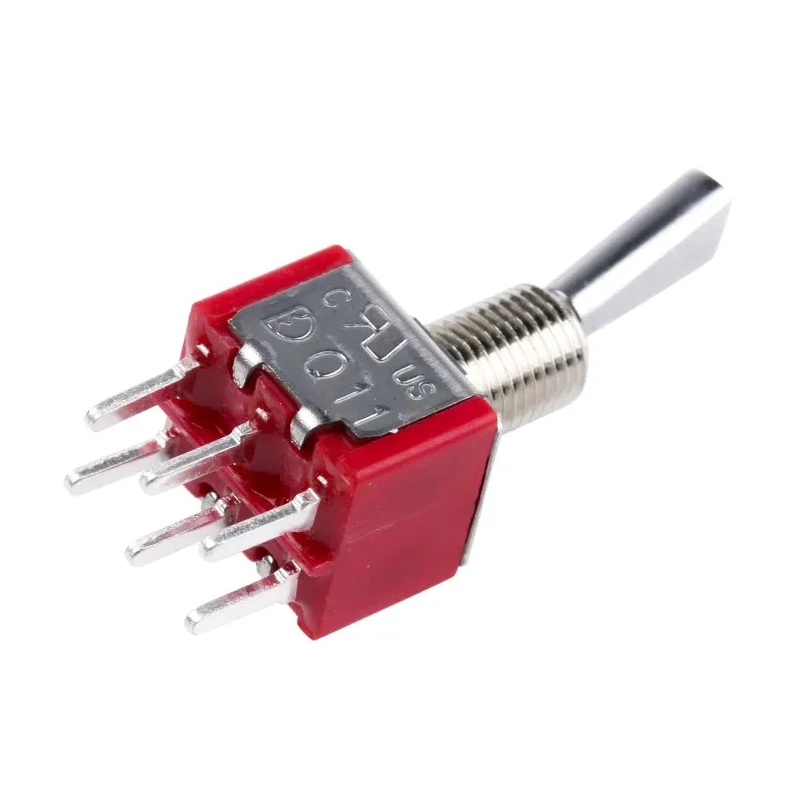

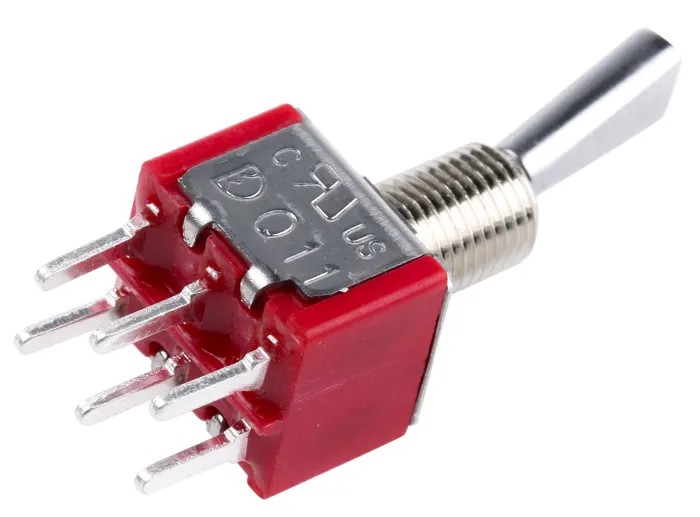

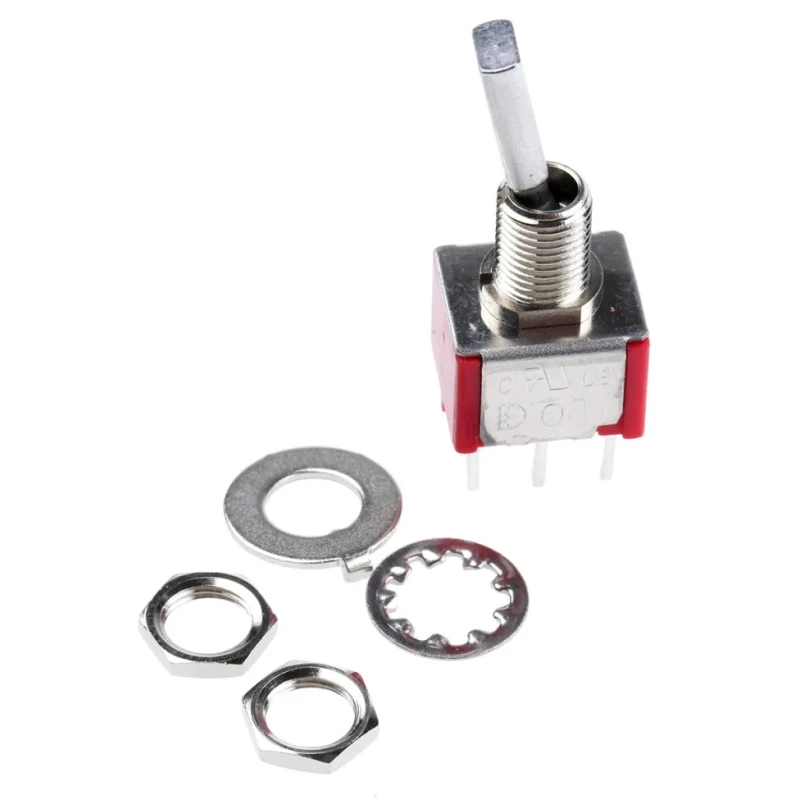

RS PRO Toggle Switch PCB Mount On-None-On DPDT 5A 26 V dc 112 V ac 7347031P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 7347031P |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS & Lead Free |
| Switch Operation | On-None-On |
| Actuator Length | 12.3mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- The switch features DPDT contact configuration with On-None-On operation at 5A.
- Designed for PCB mounting with through hole terminal type for robust connectivity.
- Supports 26 V DC and 112 V AC contact voltages for versatile use.
- Chrome plated brass actuator measures 12.3 mm in length for durability.
- Rated to operate between -30°C and 85°C complying with RoHS and lead-free standards.
- Mechanical life expectancy of 40,000 cycles ensures long-term reliability.
- Compact 6.35 mm panel cutout size enables easy installation in control panels.
- Non-illuminated design suitable for diverse industrial and automation applications.
Product Description
RS PRO 7347031P is a high-quality miniature toggle switch designed for PCB mounting with On-None-On DPDT functionality, supporting 5A current at 26 V DC and 112 V AC voltages. Constructed with a chrome plated brass actuator and through-hole terminals, this toggle switch offers reliable electrical performance combined with mechanical resilience.
Rated to function in climatic conditions ranging from -30°C to 85°C, it adheres to RoHS and lead-free compliance, ensuring suitability for modern environmental standards. The 12.3 mm actuator length and 6.35 mm panel cutout size make this component compact and easy to integrate into diverse electronic assemblies.
With a mechanical life of 40,000 cycles, it is engineered for long-lasting operation in industrial, automation, control gear, and electrical system applications. The switch provides a double pole double throw (DPDT) contact configuration with On-None-On switch operation.
Through hole terminal design facilitates stable soldering and secure mounting on printed circuit boards. Non-illuminated design suits applications where visual indication is not required. Compliant with RoHS directives and free from hazardous lead materials.
Compact form factor supports integration in space-constrained electronic devices or control panels. Ensures low contact resistance and minimum insulation resistance of 1000 MΩ with dielectric strength of 1000 Vrms.
This RS PRO toggle switch is perfect for use in electrical controls, automation equipment, and manufacturing machinery where reliable toggle functionality and ease of PCB mounting are critical.
Explore more Toggle Switches and related electrical components from RS PRO at EnvMart for industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole double throw (DPDT) contact configuration with an On-None-On switch operation.
It can operate at a maximum temperature of 85°C.
This model is rated for a current of 5A and supports contact voltages of 26 V DC and 112 V AC.
The panel cutout size required for installation is 6.35 mm.
It uses through hole terminals for robust connectivity and stable soldering on printed circuit boards.
The mechanical life expectancy is rated at 40,000 cycles, ensuring long-term reliability.
The actuator is made of chrome plated brass, which contributes to its durability.
This toggle switch can operate at a minimum temperature of -30°C.
Yes, it complies with RoHS and lead-free standards, making it suitable for modern environmental requirements.
It is suitable for use in industrial, automation, control gear, and electrical system applications.
The non-illuminated design is suitable for applications where visual indication is not required, allowing for a cleaner installation.
The dielectric strength of this model is rated at 1000 Vrms, ensuring effective insulation performance.
