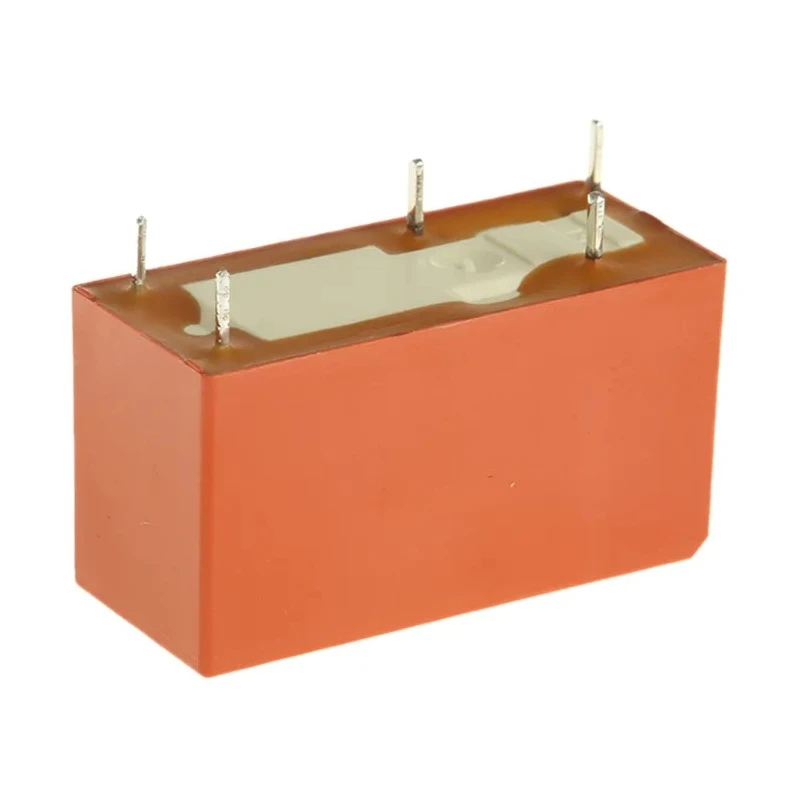

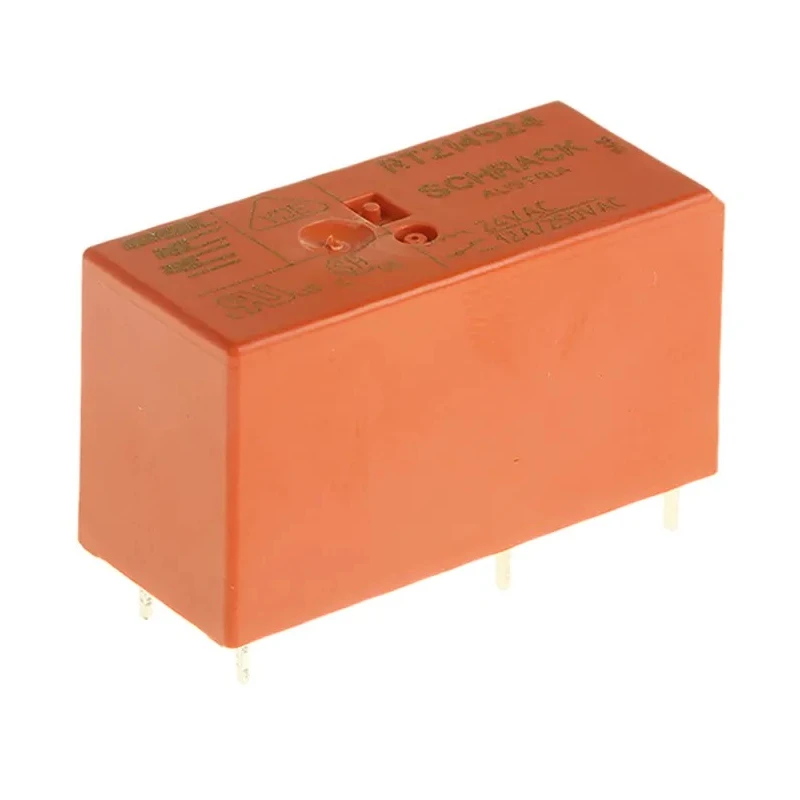

TE Connectivity PCB Power Relay 24V ac Coil 12A Switching Current SPDT RT214524

TE Connectivity RT214524 PCB Power Relay is a high-quality power relay designed for electrical, automation, and industrial control applications requiring reliable switching solutions. Featuring a 24V ac coil and a switching current capacity of 12A, this SPDT (Single Pole Double Throw) relay offers robust performance for demanding circuit requirements.

Designed specifically for PCB mounting, it supports through-hole installation with solder terminals, making it easy to integrate into existing printed circuit boards. The RT1 series relay utilizes 3.5mm pinning that is flux proof, ensuring dependable electrical contact and long service life.

Its coil resistance of 350 ohms and coil power consumption of 760mW allow for low-energy operation, while the switching power capability of 3kVA at 400V ac ensures it can handle significant load demands. The compact dimensions of 29mm length, 12.7mm width, and 15.7mm height make it suitable for space-constrained designs.

The relay is qualified to operate over a wide temperature range from -40°C to 70°C, offering versatility in various industrial, automation, HVAC, and security lighting applications. The silver alloy contacts with a contact resistance of 350 milliohms provide efficient and reliable switching.

Compliant with international standards such as RoHS, REACH, and ELV, this relay meets environmental and safety regulations. Engineered in Austria, the RT214524 is a trusted choice for interface, automation systems, domestic applications, heating systems, and more.

This power relay is designed for PCB mounting, suitable for through-hole configurations. The relay coil operates at 24V ac with a coil resistance of 350 ohms. Switching power is rated at 3kVA with a maximum AC voltage of 400V ac.

Operating temperature range is from -40°C to 70°C, ensuring reliability in varied environments. Contact material is silver alloy with a contact resistance of 350 milliohms for efficient conductivity. The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.

Coil power consumption is low at 760mW, enabling energy-efficient operation. This product complies with RoHS, REACH, and ELV standards for environmental safety. Originating from Austria, it is designed under RT1 series with solder terminal type for secure connections.
