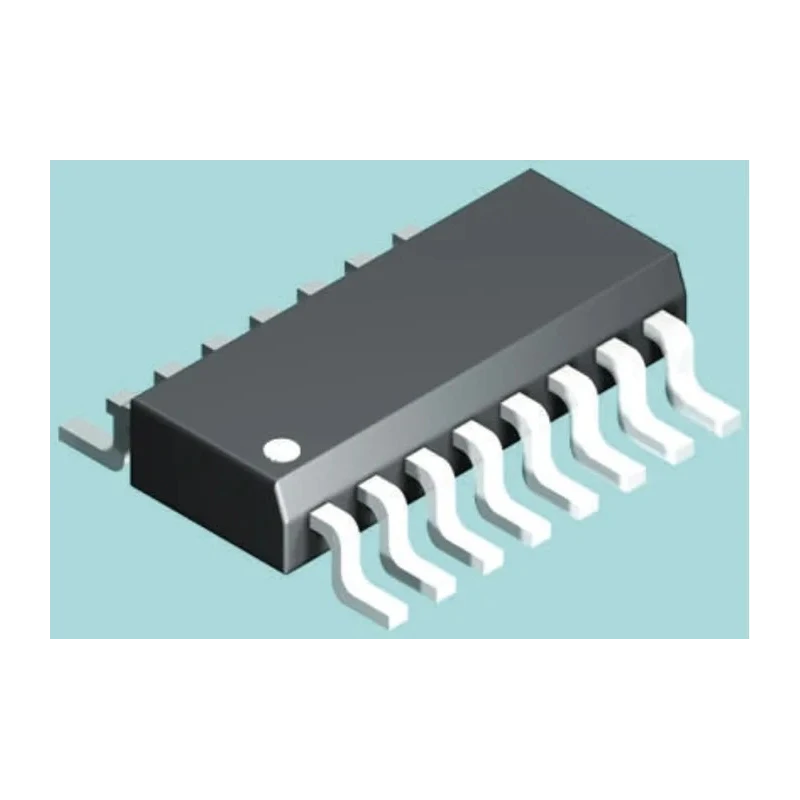

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 5V 16-Pin SOP ST232BDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST232BDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ST232B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 1μs |
| Supply Current | 10mA |
Key Features
- Operates with a supply voltage from 4.5V to 5.5V.
- Features 2 channels supporting both transmission and reception.
- Fast maximum propagation delay time of 1 microsecond at capacitive load.
- Surface-mount package suitable for compact electronic designs.
- Wide operating temperature range from -40°C to 85°C.
- Low supply current consumption of 10mA for energy efficiency.
- Compatible with CMOS and TTL logic families for versatile applications.
- Compact dimensions measuring 10mm length, 4mm width, and 1.75mm height.
Product Description
STMicroelectronics ST232BDR is a highly reliable 2-channel line transceiver designed for RS-232 communication applications. It interfaces CMOS and TTL logic levels in a compact 16-pin SOP surface-mount package. Operating between a supply voltage of 4.5V to 5.5V, this transceiver supports fast signal propagation with a maximum delay time of 1 microsecond at typical capacitive load, ensuring efficient data transmission and reception.
This line transceiver operates efficiently with a low supply current of 10mA, allowing for reduced power consumption in various electronic circuits. The device supports single-ended input and CMOS/TTL output, compatible with a wide range of logic families and systems.
Designed for robust industrial and commercial electronic applications, the ST232BDR performs reliably across a broad temperature range from -40°C to 85°C. Its compact physical dimensions (10mm length, 4mm width, and 1.75mm height) make it suitable for high-density circuit board assemblies.
The product does not have automotive standard certification, making it best suited for general-purpose electronic components in consumer and industrial electronics requiring EIA/TIA-232/RS-232 communication protocols.
Operates on 5V supply voltage for standard logic interfacing. Provides 2 complete transmission and reception channels. Utilizes surface-mount SOP package for streamlined PCB integration. Wide operating temperature range for diverse environmental conditions.
Low power consumption boosts device energy efficiency. Fast switching speeds for enhanced communication performance. Compatible with both CMOS and TTL logic technologies. Ideal for RS-232 communication line driver and receiver roles.
Overall, this versatile and efficient line transceiver IC from STMicroelectronics is suitable for electronic system designers looking for reliable RS-232 communication in compact form factors. EnvMart offers comprehensive electronics component solutions including this transceiver for industrial, lab, and commercial applications.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4.5V to 5.5V.
The ST232BDR supports 2 complete channels for both transmission and reception.
It has a maximum propagation delay time of 1 microsecond at typical capacitive load.
The dimensions of this unit are 10mm in length, 4mm in width, and 1.75mm in height.
It is compatible with both CMOS and TTL logic families.
This model has a low supply current consumption of 10mA, enhancing energy efficiency.
The device operates across a wide temperature range from -40°C to 85°C.
It comes in a surface-mount SOP package, suitable for compact electronic designs.
This line transceiver utilizes a single-ended input type.
This product does not have automotive standard certification and is best suited for general-purpose electronic applications.
The ST232BDR is classified as a Line Transceiver IC.
The country of origin for this model is India.
