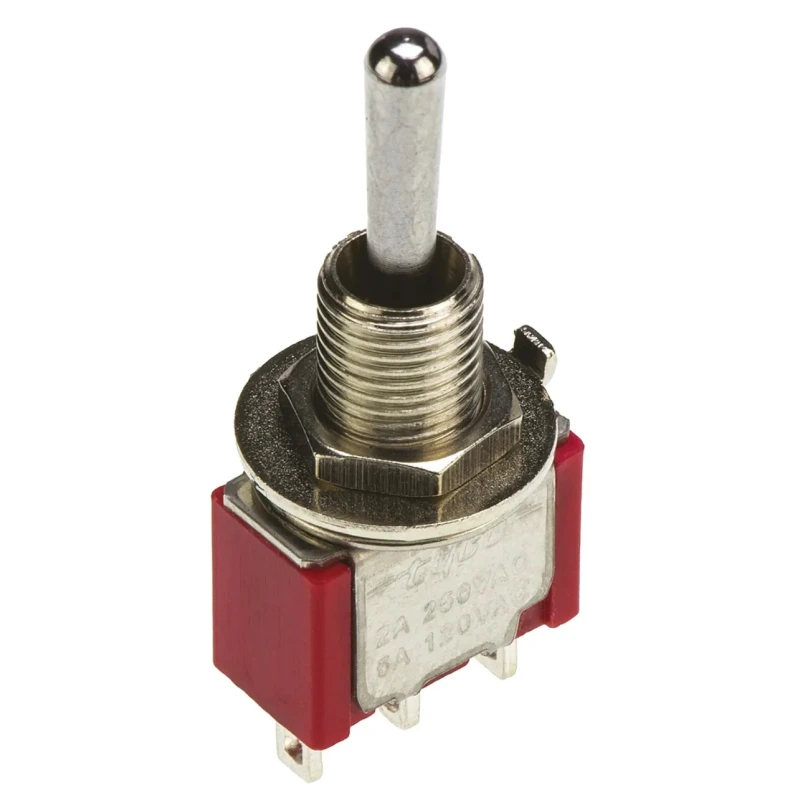

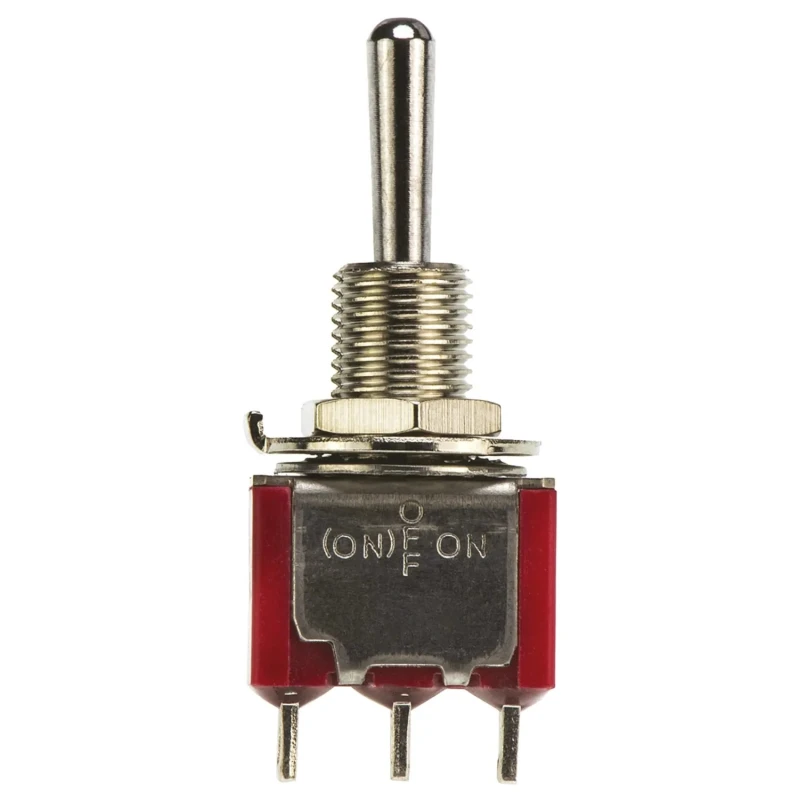

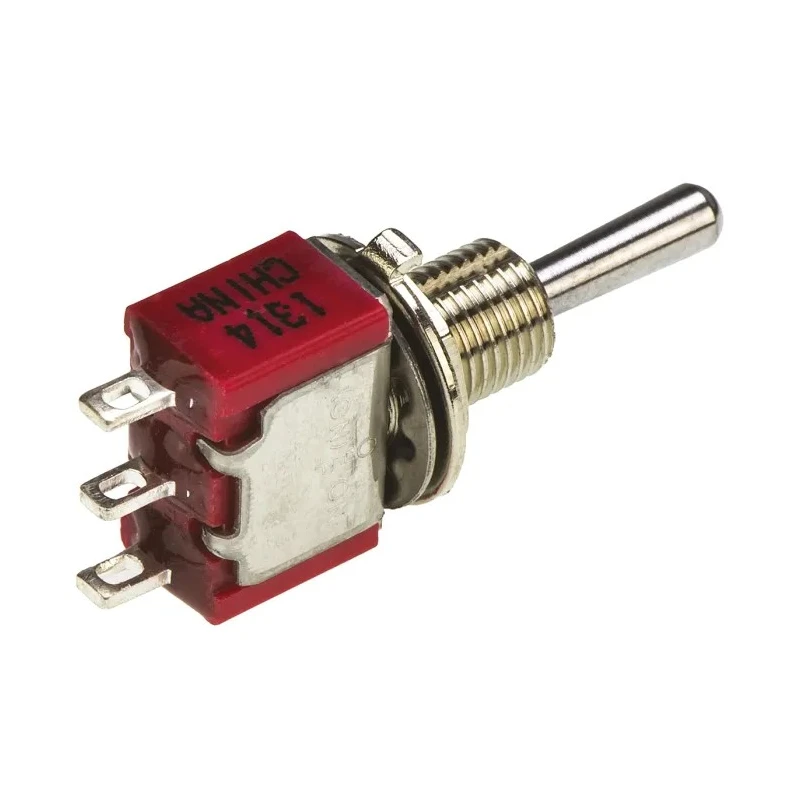

TE Connectivity Panel Mount Toggle Switch SPDT On-Off-On 5A 28V dc 125V ac Gemini A Series 5-1825137-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.27in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Panel mount design supports easy integration into control panels.
- Durable phenolic actuator material provides reliable mechanical performance.
- Features 6.35 mm panel cutout size and 10.41 mm actuator length for compact installation.
- Epoxy sealed terminals ensure secure electrical connections.
- Operating temperature range from -30°C to 85°C suitable for varied environments.
- Stainless steel frame and brass tin plated solder support enhance corrosion resistance.
- Switch configuration includes break before make contact timing for fail-safe operations.
Product Description
TE Connectivity 5-1825137-2 Panel Mount Toggle Switch is a SPDT switch from the Gemini A Series designed for electrical and automation applications. Rated for 5A current and capable of handling 28V dc and 125V ac, this switch operates with On-Off-On configuration, allowing versatile control functions.
The switch features a robust phenolic actuator with a length of 10.41 mm and a panel cutout size of 6.35 mm, making it suitable for compact panel installation. Its stainless steel frame combined with brass tin plated solder terminals ensures durability and reliable connectivity.
Epoxy sealed terminals provide protection against contaminants and ensure long-term stability in demanding industrial environments. Designed to function within a temperature range from -30°C to 85°C, the toggle switch supports a broad spectrum of operating conditions.
The break before make contact timing enhances safety by preventing simultaneous contact closure. This switch is RoHS compliant, supporting eco-friendly and safe use in various equipment.
Panel mount design supports easy integration into control panels. Durable phenolic actuator material provides reliable mechanical performance. Features 6.35 mm panel cutout size and 10.41 mm actuator length for compact installation.
Epoxy sealed terminals ensure secure electrical connections. Operating temperature range from -30°C to 85°C suitable for varied environments. Stainless steel frame and brass tin plated solder support enhance corrosion resistance.
Break before make contact timing for fail-safe operations. RoHS compliant for environmental and safety standards.
This Toggle Switch is ideal for use in electrical, industrial automation, manufacturing equipment, and control panel assemblies. Its reliable switching and secure mounting make it a suitable choice for commercial and industrial electrical systems.
Explore more industrial switches and electrical components at EnvMart to find compatible products for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch is rated for a maximum current of 5A.
It can handle 28V DC and 125V AC.
The operating temperature range is from -30°C to 85°C.
The required panel cutout size is 6.35 mm.
This model features solder type terminals.
The actuator length is 10.41 mm.
The switch has a Single Pole Double Throw (SPDT) contact configuration.
The actuator is made of phenolic material, while the frame is stainless steel.
It operates with an On-Off-On configuration.
Yes, this switch is RoHS compliant, supporting eco-friendly use.
It is suitable for electrical, industrial automation, manufacturing equipment, and control panel assemblies.
The dimensions of the switch are 0.5 in length, 0.27 in width, and 0.35 in height.
