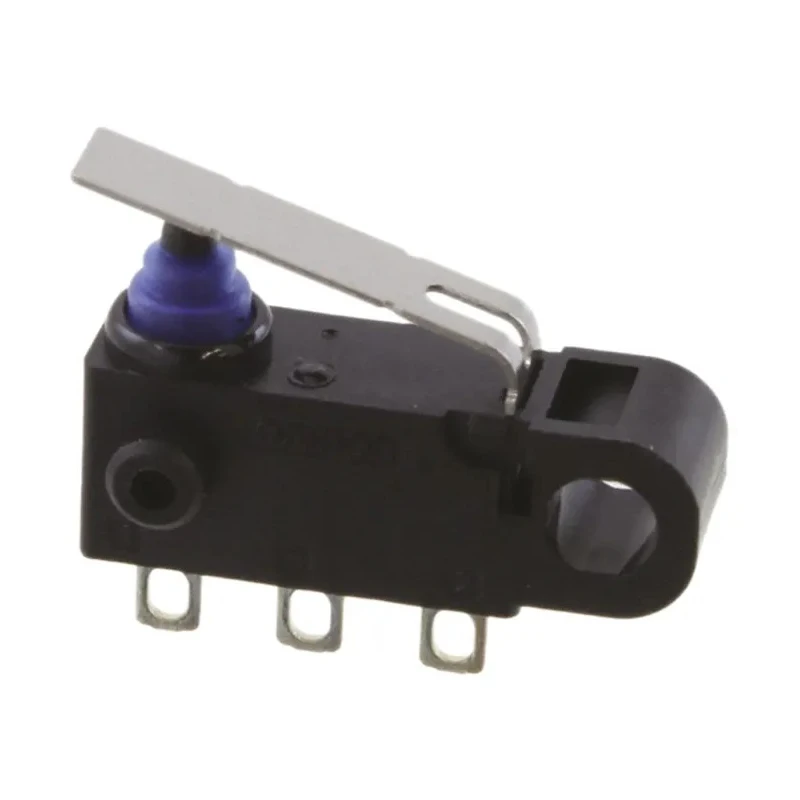

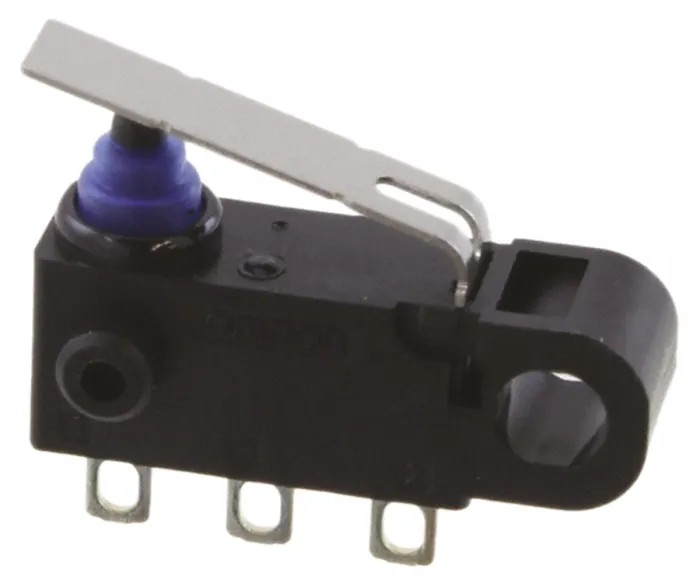

Omron Leaf Lever Micro Switch, Solder Terminal, 2A Contact Current, SPDT, IP67 Sealed Ultra Subminiature D2HW-C261H

Omron D2HW-C261H Leaf Lever Micro Switch is a sealed ultra subminiature microswitch designed for applications requiring reliable and precise control. Featuring a leaf lever actuator and solder terminal, it provides robust performance in challenging environments with IP67 ingress protection.

This microswitch supports a contact current rating of 2A at 12Vdc and 0.1A at 125Vac with a single pole double throw (SPDT) contact configuration, enabling versatile switching capabilities. The operating force of 1.8N ensures responsive actuation suitable for automation and electrical control systems.

Engineered for longevity, this switch delivers a mechanical life of up to one million operations, offering dependable service in industrial, automation, and electronic applications. It functions reliably within a wide temperature range from -40°C to 85°C and complies with RoHS standards, reflecting environmentally responsible manufacturing.

The D2HW-C261H is manufactured in Japan, ensuring quality and precision engineering. It also supports operation under minimal loads of 1mA at 5Vdc, making it ideal for sensitive circuit applications.

Leaf lever actuator for precise mechanical operation. Solder terminal type for reliable electrical connections. Contact current rating: 2A @ 12Vdc, 0.1A @ 125Vac. SPDT contact configuration. IP67 sealed ultra subminiature housing.

Operating force: 1.8N. Operating temperature range: -40°C to 85°C. Mechanical life: 1,000,000 operations. RoHS compliant. Minimum load: 1mA at 5Vdc.

This micro switch is highly suitable for electronics manufacturing, automation systems, consumer appliances, and other industrial applications requiring high reliability and protection against dust and moisture ingress. Explore more Micro Switches and Omron products on EnvMart.
