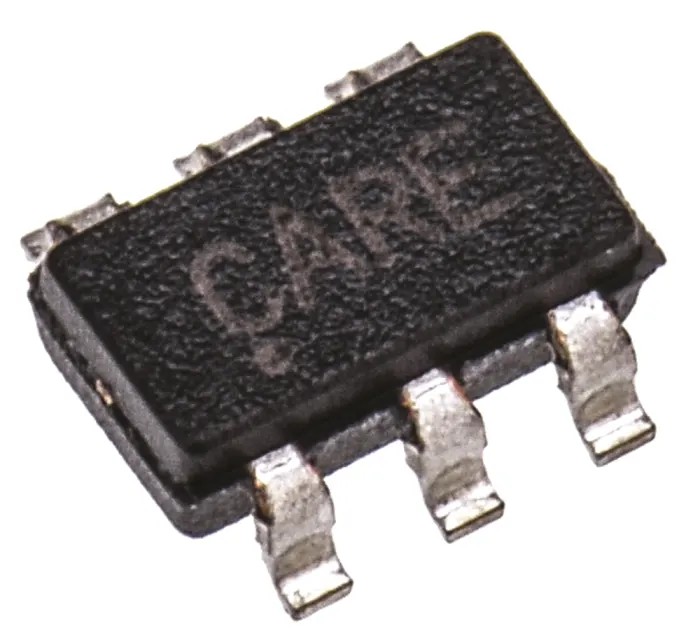

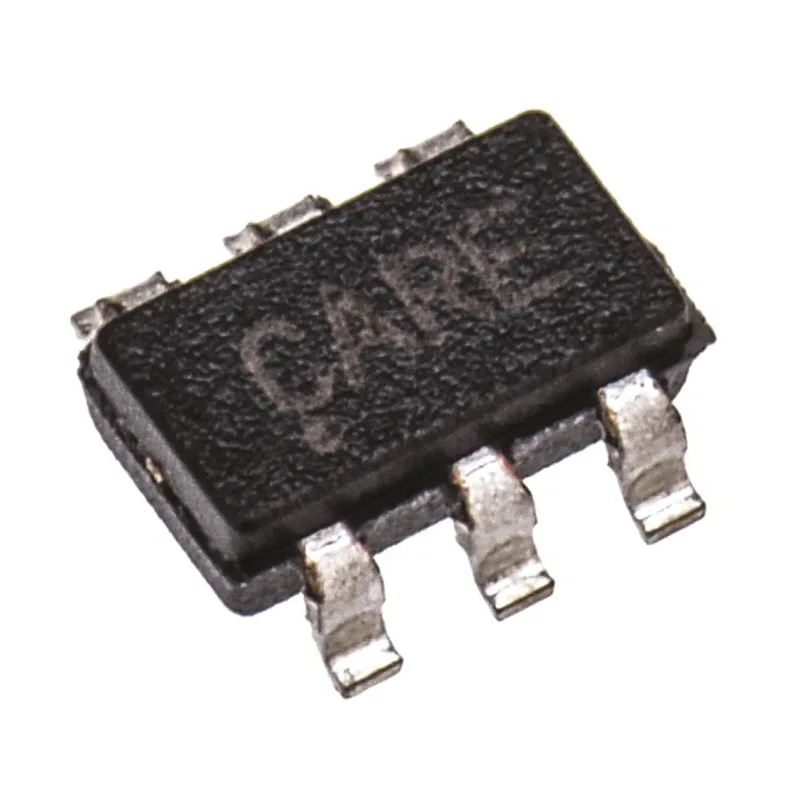

Microchip 18-bit Delta Sigma Analogue to Digital Converter 4 sps 6-Pin SOT-23 MCP3421A0T-E/CH

Microchip MCP3421A0T-E/CH is a high-precision 18-bit Analogue to Digital Converter (ADC) utilizing Delta Sigma architecture, designed for accurate voltage measurement applications. It features a low sampling rate of 4 samples per second, allowing stable and noise-reduced data acquisition, suitable for industrial, automotive, and instrumentation uses.

This 6-pin SOT-23 surface mount device measures only 3.1 mm in length and 1.45 mm in height, making it ideal for compact electronic assemblies. The ADC supports a serial I2C interface for seamless communication with microcontrollers and digital signal processing units.

Operating reliably across a temperature range of -40°C to 85°C, this ADC is engineered to comply with the automotive standard AEC-Q100, ensuring it meets stringent quality and durability requirements. Its voltage input type allows direct interfacing with analog voltage signals, with a supply voltage range between 5 V and 5.5 V.

This product is part of Microchip's MCP3421 series known for their performance in converting analog signals to digital with high resolution and accuracy, widely used in automotive electronics, industrial automation, laboratory instrumentation, and other demanding environments.

High resolution 18-bit ADC for precise voltage measurement. Low sampling rate of 4 samples per second to support stable conversions. Surface mount device compatible with automated PCB assembly. Compact 6-pin SOT-23 package with a length of 3.1 mm and height of 1.45 mm.

Operational temperature range from -40°C to 85°C ensuring reliability in diverse environments. Serial I2C interface provides easy integration with digital systems. Wide supply voltage range from 5 V minimum to 5.5 V maximum.

Designed under MCP3421 series compliant with automotive standard AEC-Q100 for quality assurance. Voltage input type supports direct voltage signal conversion. Delta Sigma architecture provides high accuracy analog to digital conversion.

This ADC is ideal for industrial, automotive, laboratory, and electronic component applications requiring high accuracy and reliability. It integrates efficiently in electronic measurement, data acquisition systems, and embedded control solutions. Explore more Microchip semiconductor components and Analogue to Digital Converters at EnvMart.
