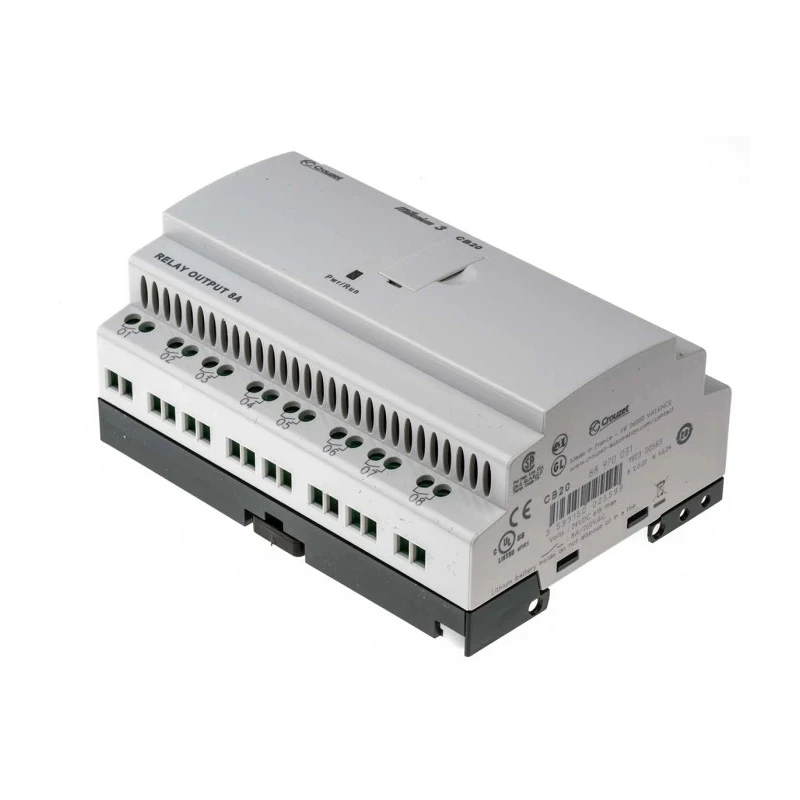

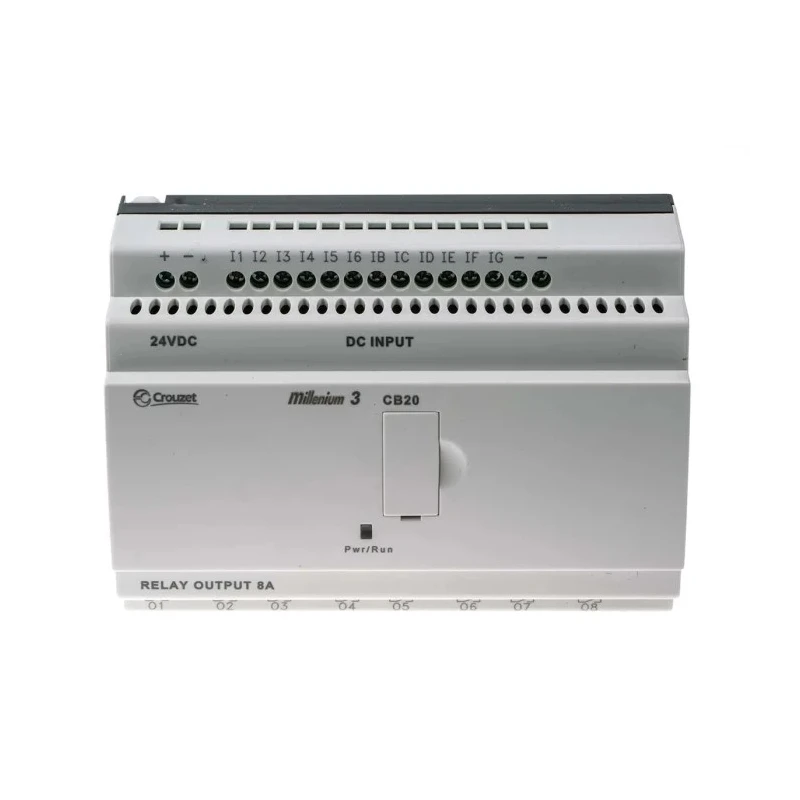

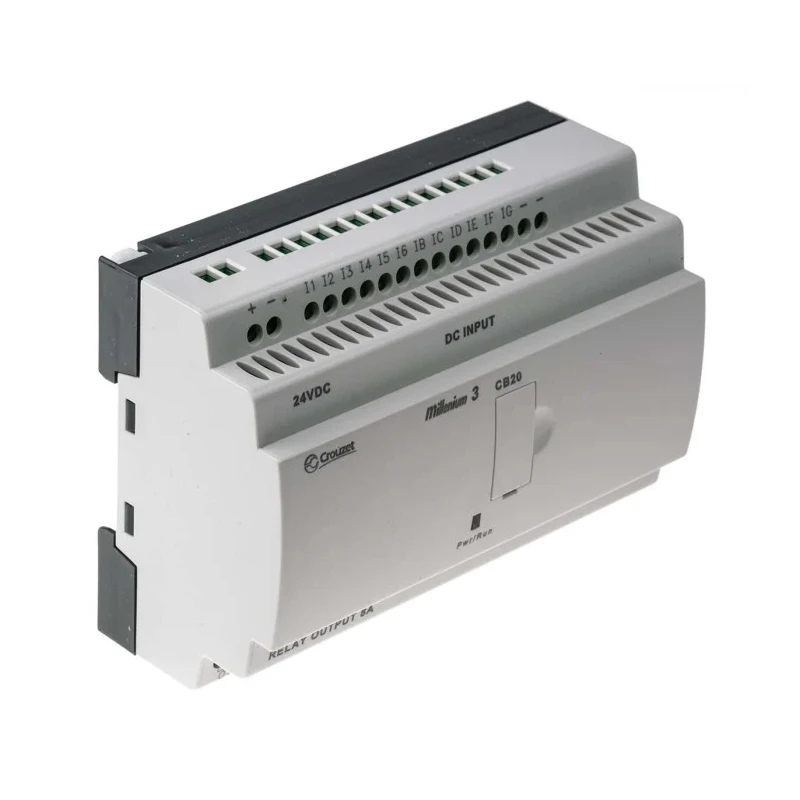

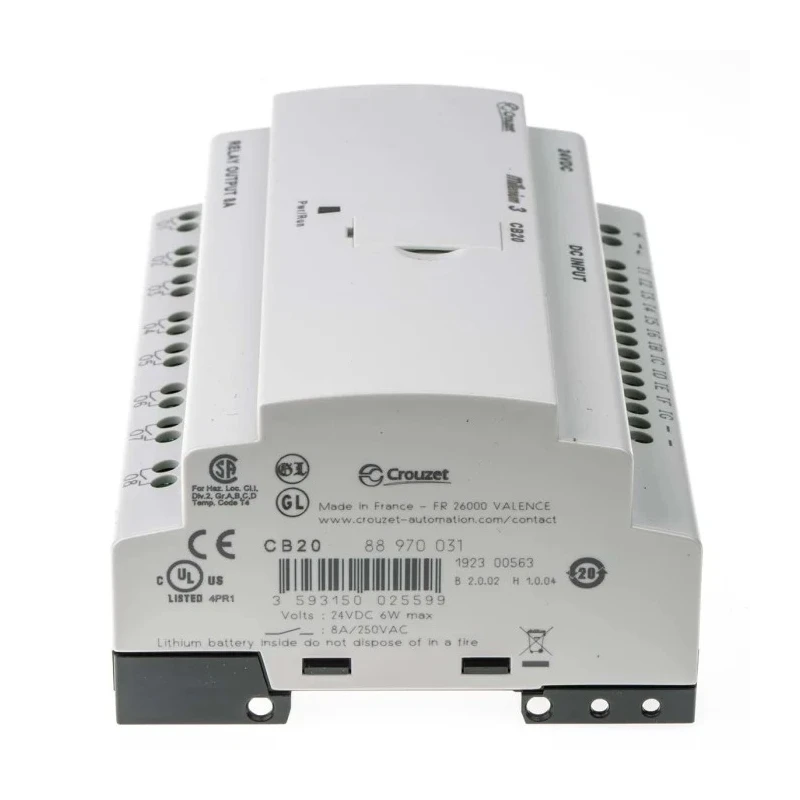

Crouzet Millenium 3 Series Logic Module 18-Input Analogue Digital Input 8 Relay Outputs 24V DC 8A 88970031
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 71.2mm |
| Model | 88970031 |
| Depth | 57.5mm |
| Width | 107.6mm |
| Mount Type | DIN Rail |
| Number of inputs | 18 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB port communication |
| Number of outputs | 8 |
| Program Capacity | 368bit |
| Supply Voltage | 24V dc |
| Standards/Approvals | GL, UL, CSA, CE |
| Number of Communication Ports | 2 |
| Communication Port Type | Serial, USB |
| Programming Language Used | FBD, Ladder Diagram, SMF |
Key Features
- The module supports both analogue and digital inputs for versatile signal processing.
- Equipped with 8 relay outputs rated for 8A contact current each.
- Compact DIN rail mountable design suitable for industrial automation installations.
- Supports programming via FBD, Ladder Diagram, and SMF languages for flexible control.
- Features battery backup and EEPROM memory for program retention during power loss.
- Operates reliably across temperatures from -20°C to 55°C.
- Certified to GL, UL, CSA, and CE standards ensuring compliance and safety.
- Developed in France and offered as a new condition product.
Product Description
Crouzet 88970031 Millenium 3 Series Logic Module is an advanced programmable logic module designed for industrial automation requiring 18 versatile inputs including analogue and digital input types and 8 relay outputs with an 8A contact current rating. This model operates on a 24V DC power supply and is built for DIN rail mounting, facilitating easy integration in control panels.
The Millenium 3 series offers considerable enhancements over earlier models including improved memory capacity, allowing more complex and larger control programs. With programming supported via Function Block Diagram (FBD), Ladder Diagram, and Structured Macro Flow (SMF), this module suits a broad range of automation tasks.
Connectivity is robust with two communication ports: Serial and USB, enabling efficient programming and data exchange. The module also incorporates battery backup to preserve the program during power outages and EEPROM for memory retention. Designed for tolerant operation, it performs reliably within a temperature range from -20°C to 55°C, and meets major international standards including GL, UL, CSA, and CE certifications, ensuring safe and compliant operation in demanding industrial environments.
The module supports both analogue and digital inputs for versatile signal processing. Equipped with 8 relay outputs rated for 8A contact current each. Compact DIN rail mountable design for flexible installation. Battery backup and EEPROM memory provide program retention.
Supports multiple programming languages - FBD, Ladder Diagram, SMF. Includes Serial and USB communication ports for connectivity. Operates reliably within -20°C to 55°C temperature range. Certified to GL, UL, CSA, and CE standards.
Dimensions: Width 107.6mm, Length 71.2mm, Depth 57.5mm. Manufactured in France and supplied new.
This programmable Logic Module is ideal for use in industrial automation systems including agricultural machinery, HVAC systems, manufacturing process control, and automatic equipment. Its versatility and robust features facilitate reliable control applications to enhance operational productivity and safety.
Explore EnvMart for more Crouzet Millenium 3 Series products and other industrial automation solutions tailored for your specific needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports 18 inputs, which include both analogue and digital input types.
It is equipped with 8 relay outputs, each rated for a contact current of 8A.
This module operates on a supply voltage of 24V DC.
The dimensions are 107.6mm in width, 71.2mm in length, and 57.5mm in depth.
It supports programming via Function Block Diagram (FBD), Ladder Diagram, and Structured Macro Flow (SMF).
It operates reliably within a temperature range from -20°C to 55°C.
This model includes two communication ports: one Serial and one USB.
It is certified to GL, UL, CSA, and CE standards, ensuring compliance and safety.
It is designed for DIN rail mounting, facilitating easy integration into control panels.
The program capacity is 368 bits, allowing for complex control programs.
Yes, it features battery backup and EEPROM memory to retain the program during power outages.
This logic module is manufactured in France.
