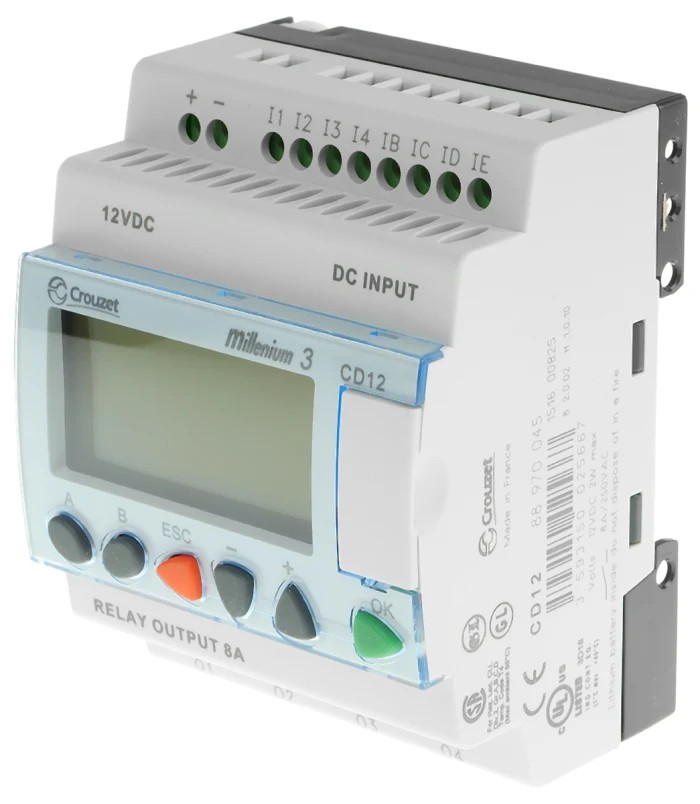

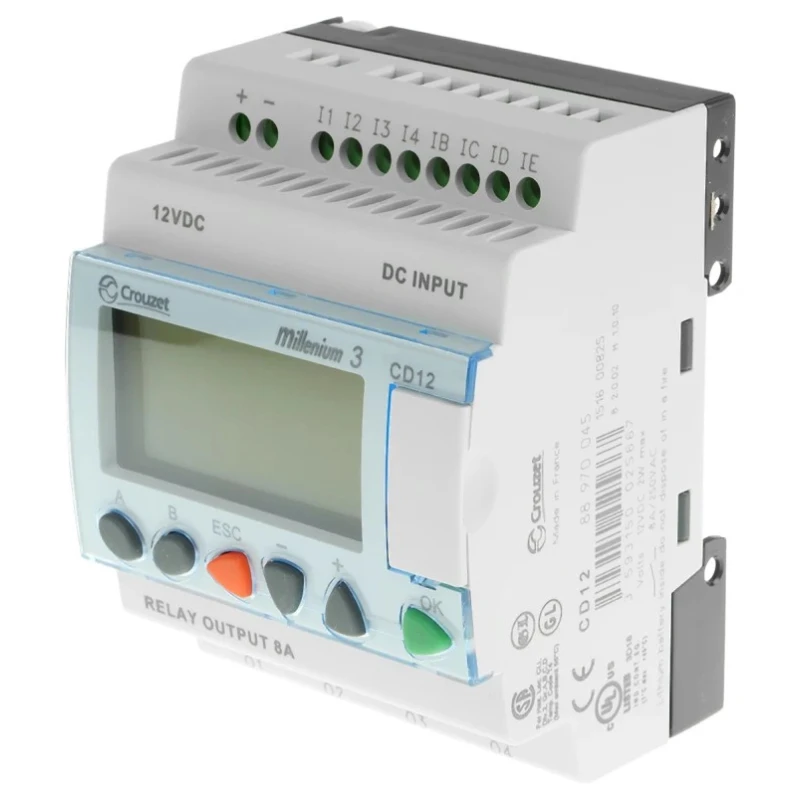

Crouzet Millenium 3 Series Logic Module 8-Input Analogue Digital Input 4 Relay Outputs 8A 12V DC 88970045

Crouzet 88970045 Millenium 3 Series Logic Module is a compact and powerful industrial programmable logic controller featuring 8 inputs comprising analogue and digital types, and 4 relay outputs capable of switching currents up to 8A at 12V DC. Designed for DIN rail mounting with screw termination, it offers a high memory capacity suitable for complex automation tasks.

The Millenium 3 series is the latest generation, providing significant improvements including doubled memory in compact controllers and increased analogue input resolution to 10-bit (0-10V signals). The built-in 4-line, 18-character green LCD display allows clear visualization of parameters with customizable backlighting and bar graph functionality.

This logic module supports multiple programming languages such as Function Block Diagram (FBD), Ladder Logic, and Sequential Function Chart (SFC), catering to diverse automation programming needs. Communication is facilitated through serial and USB ports, ensuring versatile integration options.

Additional features include selective parameter setting, program protection via battery backup and EEPROM memory, and robustness for a temperature range of -20°C to +55°C. It meets key industrial standards including CE, CSA, GL, and UL certifications, making it suitable for applications like automatic washing equipment, agricultural machinery, HVAC systems, and heating control.

The module supports both analogue and digital inputs for versatile control. Provides 4 relay outputs each rated at 8A contact current. Operations maintained between -20°C and 55°C for harsh environments. Features 4-line, 18-character green LCD with backlighting for parameter display.

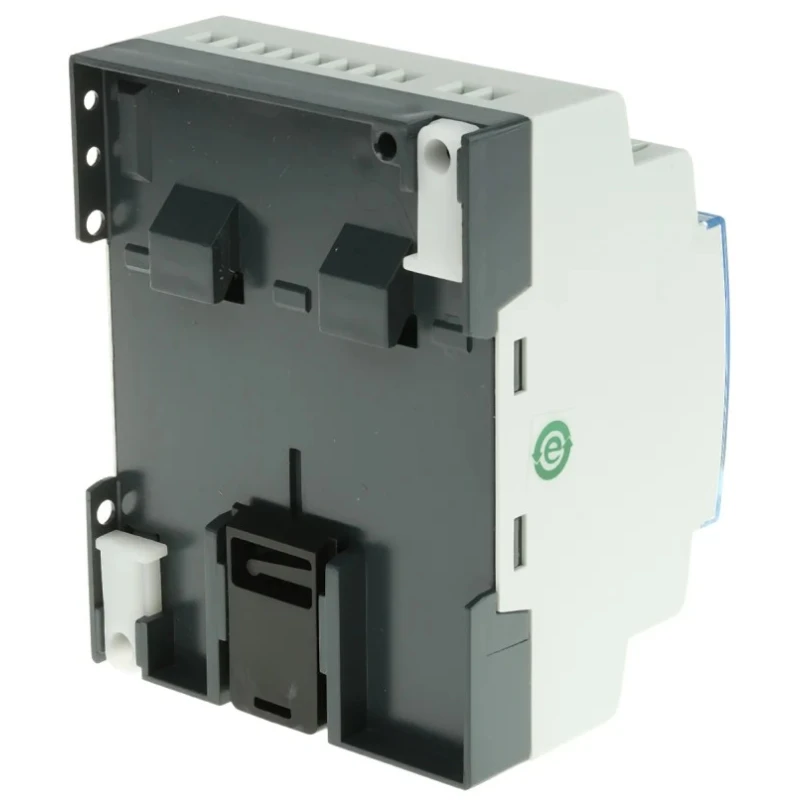

Programmable via FBD, Ladder Logic, and Sequential Function Chart (SFC). Includes serial and USB communication ports for flexible connectivity. Offers battery backup to retain program data during power loss. Mounts on DIN rail using screw termination for industrial panel installation.

Certified to CE, CSA, GL, and UL standards ensuring quality and safety.

This Logic Module from Crouzet is ideal for industrial automation requiring reliable input/output control, program flexibility, and robust design. It supports a wide range of applications including machinery control, environmental systems, and manufacturing automation.
