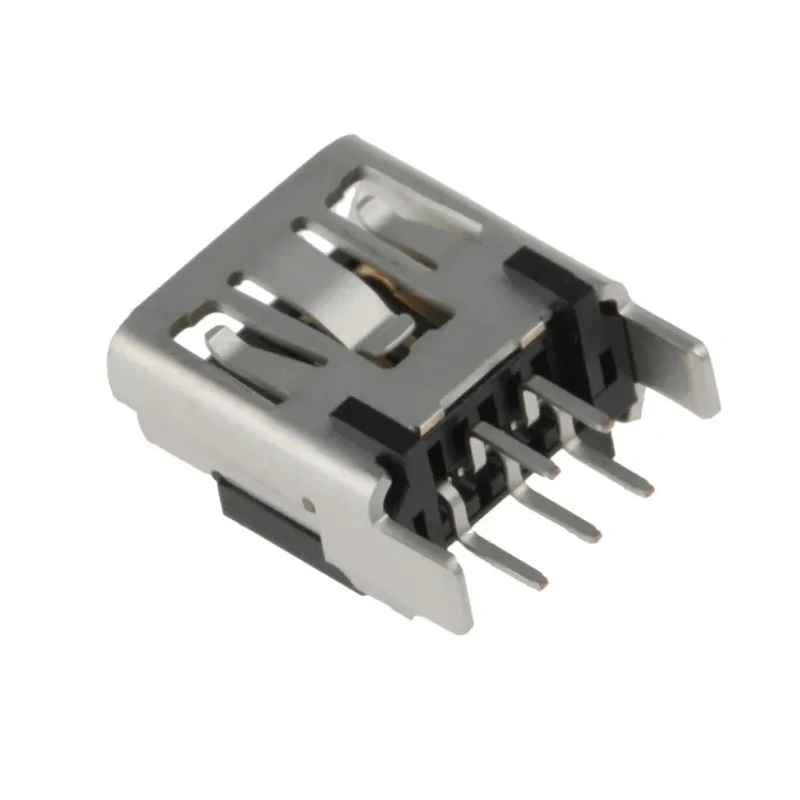

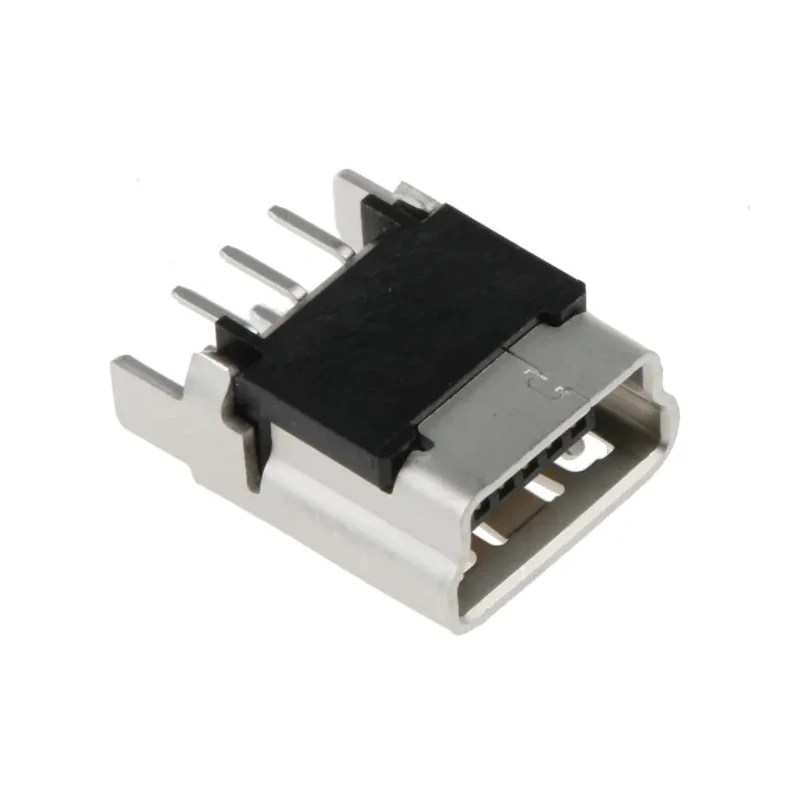

Molex Straight Through Hole Female USB Type B Connector USB 2.0 1A 30V 500075-1517
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40.0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Supports USB 2.0 data transfer speeds up to 480 Mbps.
- Rated for 1A current and 30V voltage for reliable low-voltage applications.
- Constructed with copper alloy contacts with gold plating for corrosion resistance.
- Suitable for through-hole mounting on PCBs ensuring secure mechanical bonding.
- Operates over a wide temperature range from -40°C to +85°C for industrial use.
- Designed with integrated PCB locator and retention features for easy assembly.
- Lightweight design at 0.52g, ideal for space-constrained devices.
- Compatible with USB On-The-Go supplement for portable and mobile equipment.
Product Description
Molex 500075-1517 USB Type B Connector is a straight, through hole female USB connector designed for USB 2.0 applications. It supports up to 1A current and 30V operating voltage, making it suitable for reliable low-voltage data transmission in various electronic devices.
Its copper alloy contacts provide high conductivity and have a gold plating to resist corrosion, enhancing long-term performance. This connector is designed for through-hole mounting on printed circuit boards (PCBs), ensuring a strong mechanical connection capable of withstanding high stress.
The connector features an integrated PCB locator and retention mechanisms to facilitate precise and secure assembly, making it ideal for industrial and commercial electronic manufacturing. Its operational temperature range from -40°C to +85°C further allows usage in demanding environments.
Supporting data transfer speeds up to 480 Mbps, it complies with the USB 2.0 specification and includes USB On-The-Go (OTG) functionality, enabling connectivity with a variety of portable and mobile equipment.
Typical applications include communication systems, household appliances, and office equipment requiring reliable and compact USB interface solutions. Supports USB 2.0 data transfer speeds up to 480 Mbps. Rated for 1A current and 30V voltage for reliable low-voltage applications.
Constructed with copper alloy contacts with gold plating for corrosion resistance. Suitable for through-hole mounting on PCBs ensuring secure mechanical bonding. Operates over a wide temperature range from -40°C to +85°C for industrial use.
Designed with integrated PCB locator and retention features for easy assembly. Lightweight design at 0.52g, ideal for space-constrained devices. Compatible with USB On-The-Go supplement for portable and mobile equipment.
Housed in On-The-Go series ensuring excellent RFI/EMI performance.
This Molex USB Type B Connector is an essential component for building durable, efficient, and high-performance USB interfaces in industrial, laboratory, communication, and consumer electronic systems.
Explore more industrial-grade USB Connectors and components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 1A, making it suitable for low-voltage applications.
The connector is rated for an operating voltage of 30V.
It supports data transfer speeds up to 480 Mbps, complying with the USB 2.0 specification.
This unit is designed for through-hole mounting on printed circuit boards (PCBs).
It features copper alloy contacts with gold plating, which provides corrosion resistance and enhances conductivity.
It operates effectively over a wide temperature range from -40°C to +85°C, suitable for industrial applications.
Yes, it includes an integrated PCB locator and retention features to facilitate precise and secure assembly.
This connector is a female USB Type B connector.
Yes, it is compatible with the USB On-The-Go (OTG) supplement, allowing connectivity with portable and mobile equipment.
The connector has a lightweight design, weighing only 0.52g, which is ideal for space-constrained devices.
This model features a straight orientation.
The country of origin for this connector is India.
